Dongfeng 1208 6X4 20000 Liters Diesel Delivery Truck
Dongfeng 1208model 20,000liters 6x4 Diesel Gasoline Transportation Aluminum alloy Tanker Truck
Description:
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators (Baffle) to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Specifications
| Drive Mode | 6×4 | |
| Chassis | DFL1250 | |
| Engine | Model | Cummins ISDe 245 30 |
| Type | 6-cylinder in line, turbocharging, inter cooling, electrical control common-rail engine | |
| Max. power(Kw/rpm) | 180/2500 | |
| Max. torque(N.m/rpm) | 925/1200-1700 | |
| Bore /Stroke(mm) | 107×124 | |
| Displacement(ml) | 6700 | |
| Type of fuel | Diesel | |
| Compression ratio | 17.3:1 | |
| Gearbox | Model | 8JS118T-B |
| Max.torque(N.m/rpm) | 1180 | |
| Dimensions | Overall dimension (mm) | 10960×2500×3200 |
| Wheel base (mm) | 5350+1300 | |
| Front/Rear tread(mm) | 1986/1860 | |
| App./Dep. Angle(°) | 20/13 | |
| Mass | Payload (kg) | 13725 |
| Curb weight(kg) | 11045 | |
| G.V.W (kg) | 24900 | |
| Tank dimension | 8200×2220×1420 | |
| Effective Volume(m³) | 20 | |
| Tansport Medium | all kinds of oils, chemical liquids | |
| Material of tank | carbon steel/stainless | |
| It has the functions of oil absorption, oil pumping and etc. The tax control computor tanker, 15m oil reel, self-zeroing flow meter and oil gun are optional. | ||

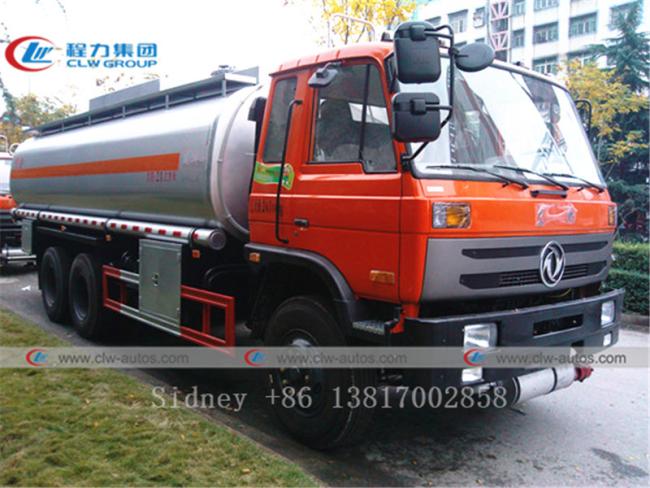

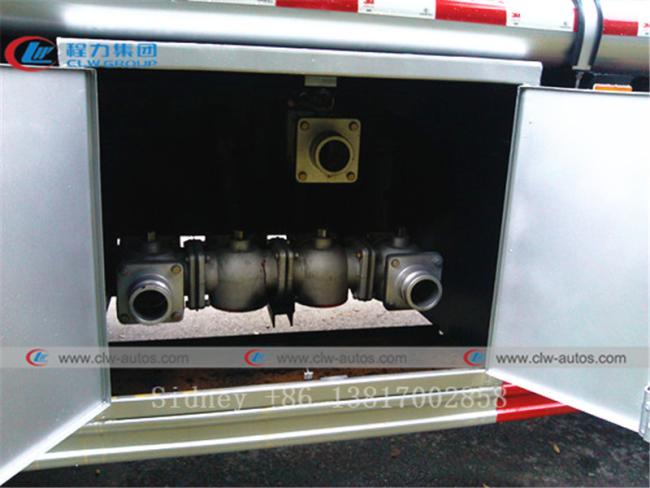

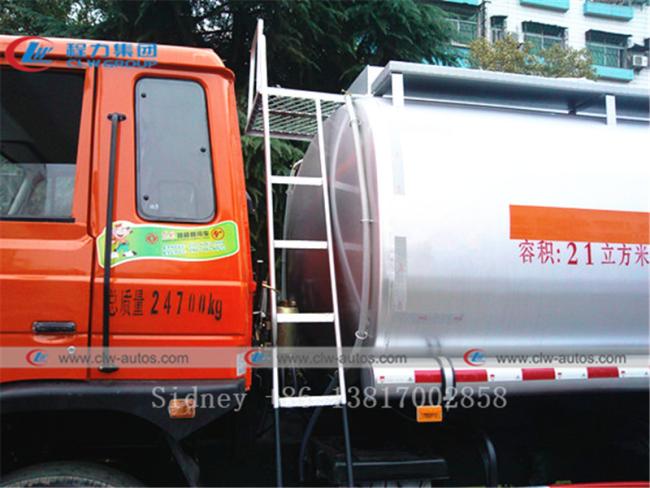

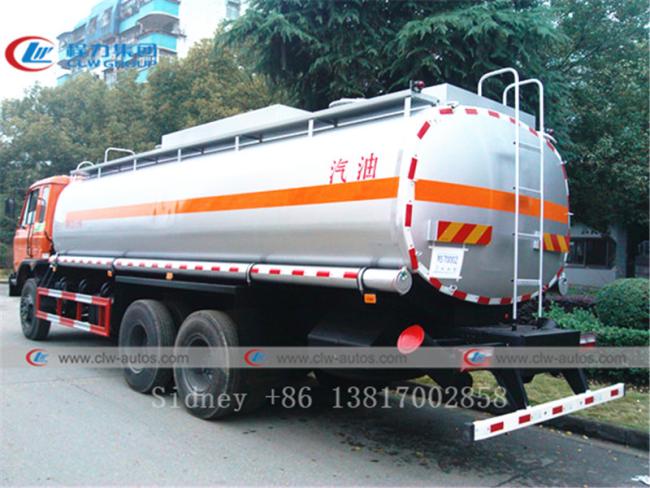

Reference photos

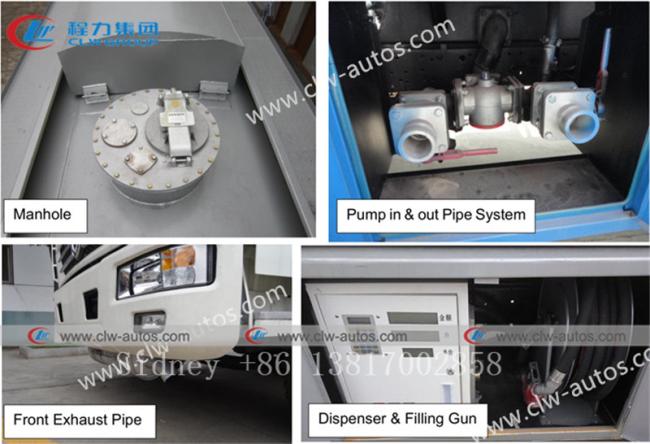

Parts photos
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
