5000 Liters Sinotuck HOWO 4x2 LPG Bobtail Tanker Truck With Dispenser
5cbm 5000liters Sinotuck HOWO 4X2 LPG bobtail Tanker Truck with Dispenser
Product Description
1. Storage medium of LPG bobtail truck : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Truck Brand of LPG Gas Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
3. Available tank capacity of LPG bobtail truck: 5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.
4. Function of LPG Gas Bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
5. Manufacturing standards of LPG bobtail truck: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
6. Refiling System of LPG Gas Bobtail: 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel
Specification
| Main Technical Parameter | |
| Model Name | HOWO 4x2 5000Liters LPG bobtail truck with dispenser |
| Driving Type | 4x2,left hand drive |
| Weights | |
| Rated payload weight(kg) | 5000 |
| Curb weight(kg) | 4990 |
| Dimensions | |
| Wheelbase(mm) | 3360 |
| Overall Dimension(mm) | 5900×2045×2600 |
| Tank volume | 5000L |
| Max speed(km/h) | 90 |
| Engine | |
| Engine model | CHAOCAI 120HP |
| Engine type | Diesel 4-storke, Inter-cooling,water-cooling |
| No. of cylinders | straight-4 cylinders |
| Displacement(ml) | 3856 |
| Rated power Rev((Kw) | 88 kw |
| Drive Line | |
| Transmission | 6 speeds,6 forwards, 1 reverse gear,manual operation |
| Brake system | Air break |
| Cab | |
| cabin | SINOTRUK HOWO |
| Axle | |
| Front axle | 2.4 tons |
| Rear axle | 4.2 tons |
| Tire specification | |
| Tire specification | 7.00R16 standard tire |
| Tire quality | 6 tires+1 spare tire |
| Other | |
| Electric system | 24V |
| Tool | Standard equipment |
| Configuration | |
| Tanker material | Q345R |
| Others | Storage for:liquified propane |
| design pressure 1.77Mpa; | |
| design temperature 50 ; | |
| filling density: 0.42T/M3; | |
| corrosion allowance: 1mm; | |
| Industry Protocol | GB150-1998 "Steel Pressure Vessels," Pressure Vessel Safety technical monitoring procedures, LPG safety inspection procedure |

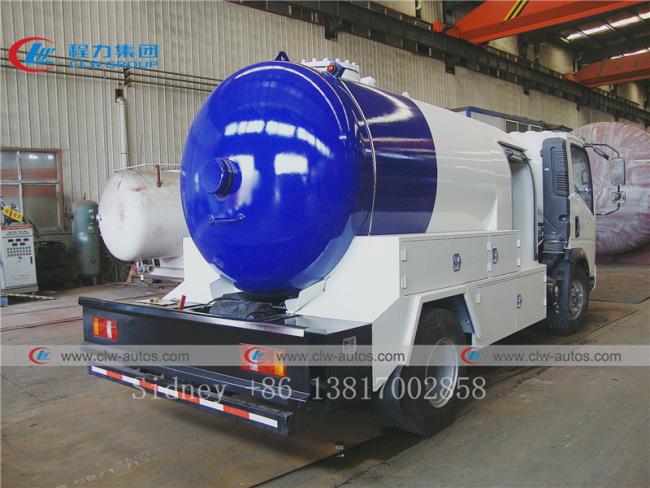

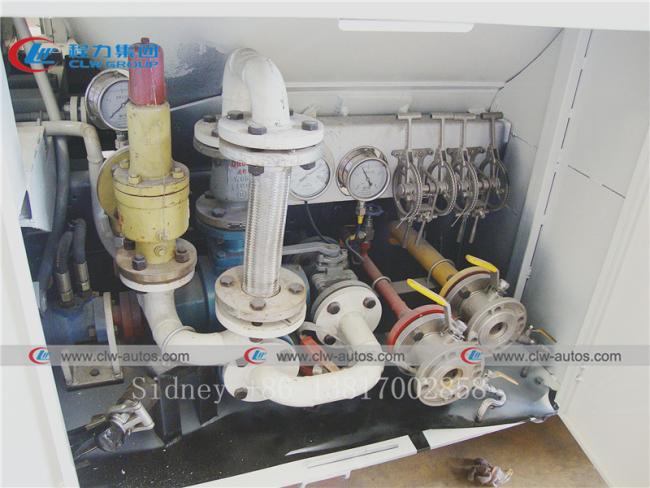

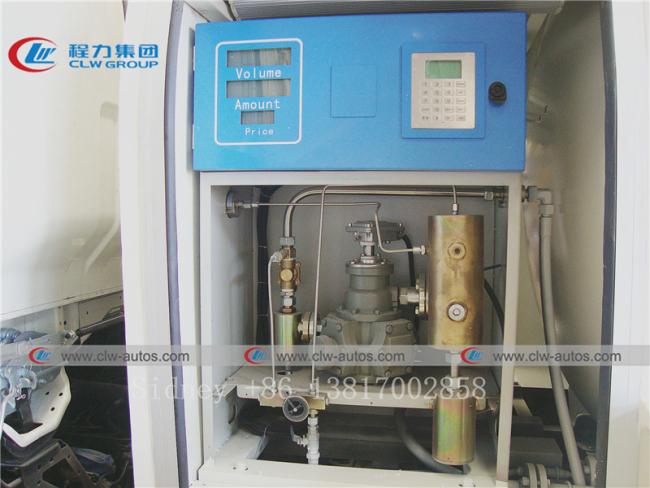

Reference photos
Production Process of Propane Gas Storage Tank
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
