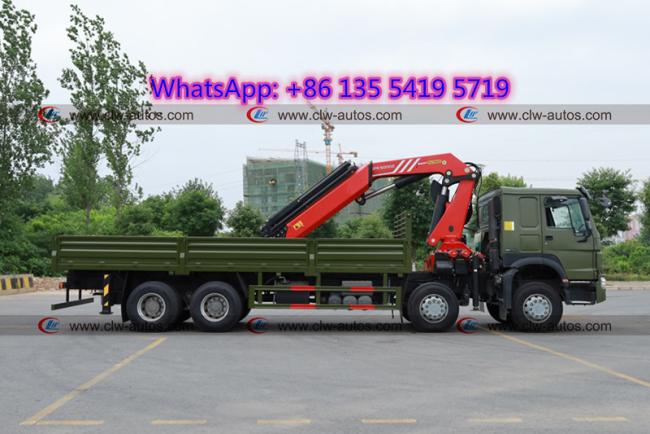

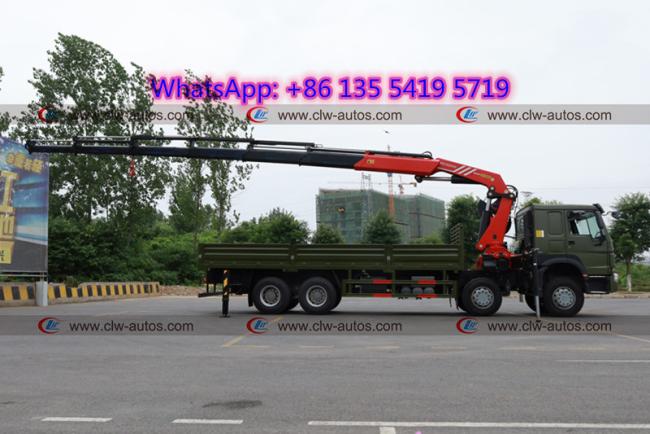

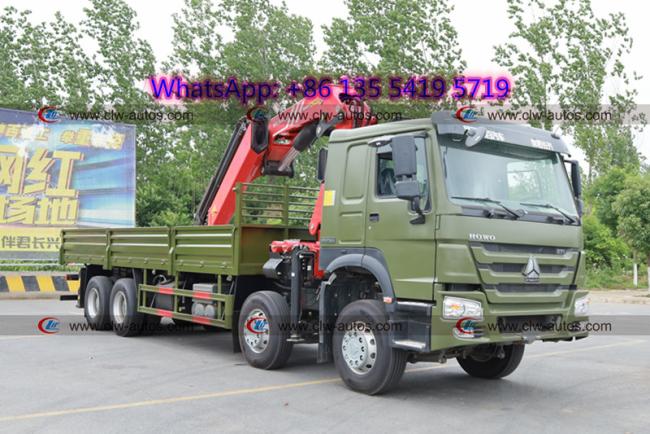

Sinotruk HOWO 8x4 12 Wheeler 40T Cargo Lorry With XCMG Telescopic Knuckle Crane
Sinotruk HOWO 8x4 12 wheeler 40 tons Cargo Lorry Truck With XCMG Telescopic Knuckle Crane
Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
Product Description
-- Truck mounted crane(also called Truck with Crane, Truck Crane) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.
-- Truck mounted crane can be divided into various types as follows,
1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Truck mounted crane;
2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Truck mounted crane;
3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons 50tons 60tons 80tons 100tons 120tons 150tons Truck mounted crane
4) According to crane type,there are telescopic and knuckle Truck mounted crane.
Feature
-- Crane: Palfinger Brand
-- Landing leg: Hydraulic control, top quality, easy for operation.
-- Storage box: High quality carbon steel Q235
-- Truck chassis: China famous brand
Specification
| Products Technical Specification | |||||||
| Chassis Brand | Sinotruk-HOWO | ||||||
| Chassis Model | ZZ1257 | ||||||
| Fuel type | Diesel | ||||||
| Emission Standard | Euro 2 | ||||||
| Cabin |
HW76, with A/C, one bunk Left hand Drive |
||||||
| Whole Vehicle main dimensions (mm) |
Overall dimensions (L×W×H) | 10100*2500*3710 | |||||
| Cargo body size | 6000*2300*600 | ||||||
| Wheel base | 4600+1350 | ||||||
| Front overhang | 1500 | ||||||
| Rear overhang | 2650 | ||||||
| Weight data (kg) | G.V.W | 25000 | |||||
| Curb weight (chassis) | 16100 | ||||||
| Max payload | 15000 ~20000kg | ||||||
| Engine | Model | WD615.69 | |||||
| Maximum power | 247kw / 336hp | ||||||
| Number of cylinders | 6 | ||||||
| Displacement (L) | 9.726 | ||||||
| Engine Manufacturer | CNHTC | ||||||
| Gear box | Model | HW19710 | |||||
| Number of gears | 10 forward gears & 2 reverse | ||||||
| Axle | Front / Rear Load capacity (ton) | HF7 / ST16 | |||||
| Suspension | Front / Rear | 10- Leaf spring / 12 leaf spring | |||||
| Brake system | Service brake | Air braking | |||||
| Electric device | Rated voltage | 24V | |||||
| Tyres & Quantity | 12R22.5 & 10+1 | ||||||
| Crane Description | |||||||
| Type | Straight arm crane Telescopic boom | ||||||
| Model | SQ14S | ||||||
| Max Lifting Capacity (kg) | 25000 | ||||||
| Maximum lift height (m) | 17.8 | ||||||
| Max Lifting Moment (t.m) | 35 | ||||||
| Recommend Power (kw) | 32 | ||||||
| Max Oil Flow of Hydraulic System (L/min) | 63 | ||||||
| Max Pressure of Hydraulic System (MPa) | 26 | ||||||
| Oil Tank Capacity (L) | 160 | ||||||
| Rotation Angle (°) | All Rotation | ||||||
| Crane Weight (kg) | 4800 | ||||||
| Installation Space (mm) | 1300 | ||||||
| Working radius (m) | 2.5 | 5 | 8 | 11 | 13.2 | 15.8 | |
| Lifting capacity (kg) | 14000 | 6000 | 3500 | 2300 | 1800 | 1200 | |
