6x4 CAMC Hualing 20m3 385hp Water Bowser Truck
CAMC hualing 20m3 385hp Water Bowser Firefighter Water sprinkler Truck
Description
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump
Specifications
| Chassis Specification | ||
| Item No. | Parameters | |
| Chassis Brand | CAMC | |
| Overall Dimension | 11100×2500×3350mm | |
| Gross Vehicle Weight | 25000kg | |
| Curb Weight | 10605 kg | |
| Wheel Base | 5200+1350 mm | |
| Cabin | Row and half, Left Hand Driving | |
| Engine | Weichai, 385HP, EURO III | |
| Overhang( Front/Rear) | 1525/2460(mm) | |
| Fuel type | Diesel | |
| Axle load | 6000/12000(kg) | |
| Angle(Approach/departure) | 16/22(°) | |
| Transmission/Gearbox | 9 Forward & 1 Reverse Gear | |
| Brake System | Pneumatic | |
| Steering Gear | Power Assistant | |
| Tire | 11.00-20, 10 Pieces with 1 spare tire | |
| Maximum speed | 90(km/h) | |
| Superstructure | ||
| Water Tanker | Tank Volume | 20000 Liters / 20m3 |
| Tank Material | 5mm Q235B Carbon Steel | |
| Sprinkling System: | Suction height of Truck Pump | >7m |
| Full Tank Suction Time | <15 minutes | |
| Sprinkling width of front/rear/side Sprinkler | ≥14m | |
| Range of Water Cannon | ≥35m | |
| Remarks | Other Parts: Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs | |

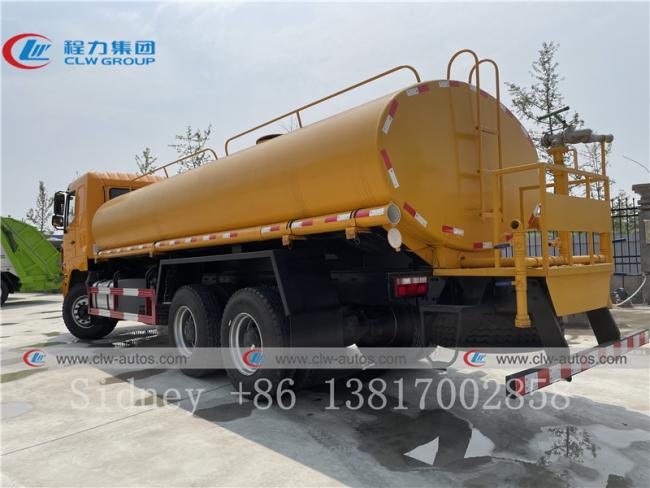

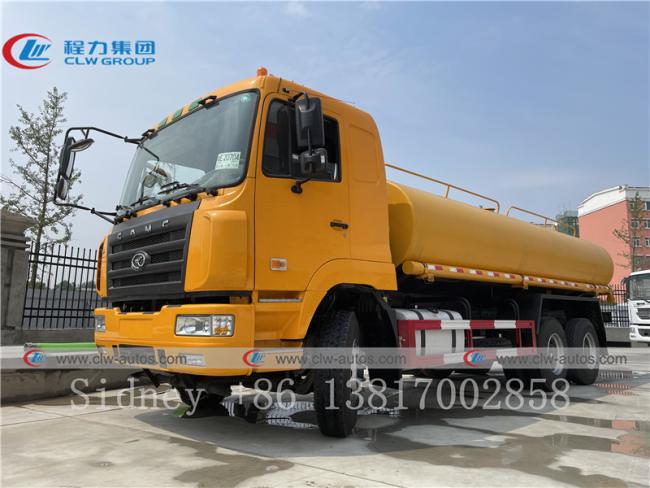

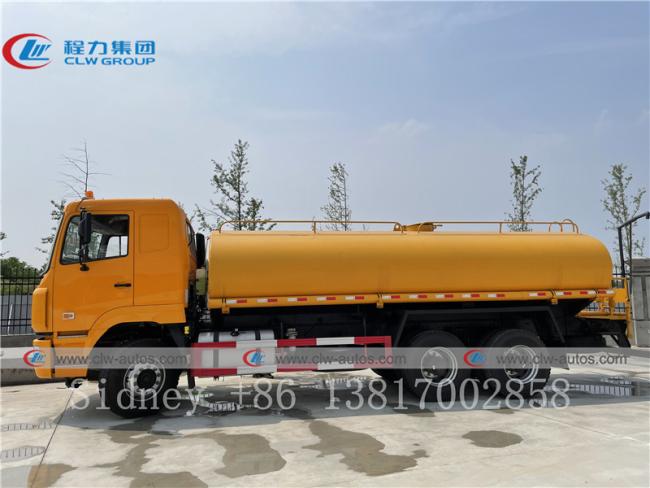

Products Show
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered water bowsers to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
