Sinotruk HOWO 4x2 6 Wheels 290HP RHD Fire Rescue Truck
Sinotruk HOWO 4X2 6 Wheels 290HP RHD 10Tons Water Tanker Fire Rescue Fighting Truck
Product Description:
Sinotruk HOWO 4x2 10000L fire fighting water foam truck 10 tons fire fighting truck,Using sinotruk production standard of five new countries heavy truck chassis Howard, seiko create and has the advantages of novel design, powerful, strong maneuverability, spraying range far, such outstanding advantages as strong combat effectiveness of fire extinguishing vehicles, is the city fire, industrial enterprises, petrochemical industry, port and forest fire officers and soldiers of choice for fire fighting and rescue fire fighting equipment.
Fire pump: atmospheric pump model: cb10/60 vehicle fire truck pump flow: 60 L/S pressure: 1.0Mpa
Medium and low pressure pump model: cb20.10/30.60 medium and low pressure vehicle fire pump flow rate: 60L/S/ 1.0mpa medium pressure flow rate: 30L/S/2.0Mpa
Fire gun: foam fire truck model: PL48 dual-purpose fire gun flow: 48L/S/1.0Mpa water range: ≥60m foam range: ≥55 meters
Water tank fire truck model: SP60 fire water cannon flow rate :60L/S/ 1.0mpa water range: ≥65m
| Product Name | HOWO 4x2 powder foam fire truck | |
| Cab | double row cab, four doors, rated passengers 6 | |
| Volume | 4m3/4000L water, 2m3/2000L foam, 2m3/2000L powder | |
|
Chassis |
Brand | howo |
| Chassis model | ZZ5207N4617E1 | |
| Drive type | LHD or RHD 4x2 | |
| Tire | 12.00R20 | |
| Tire No. | 6+1(spare) | |
| Braking System | air brake | |
| Transmission | Manual , 6 forward and 1 reverse | |
|
Engine |
Model | D10.28-50 |
| fuel type | diesel | |
| Horse Power(kw/hp) | 206kw/280hp | |
| Displacement(ml) | 9726ml | |
| Emission standard | Euro 5/4/3 | |
|
Dimension & weight |
Overall dimension (L*W*H/mm) | 8250x2500x3500mm |
| Axles No. | 2 | |
| GVW(kg) | 19800 | |
| Curb Weight(kg) | 11650 | |
| Max speed(km/h) | 95 | |
| performance parameter |
Standard configuration |
fire pump, fire monitor,steel pump room/equipments box ,5-9 Aluminum curtain door, 1600mm long rows of lights in the top of cab, fire fighting accessoires,etc |
| Fire Pump | CB10/60 | |
| Fire Monitor Type | PS50 (pressure:1.0MPa,flow:50L/s,shot range≥60m,rotation angle: left or right 360°,up or down-30°~80°) | |
| Fire Monitor Shot Range | Water≥60m , Foam ≥55m | |

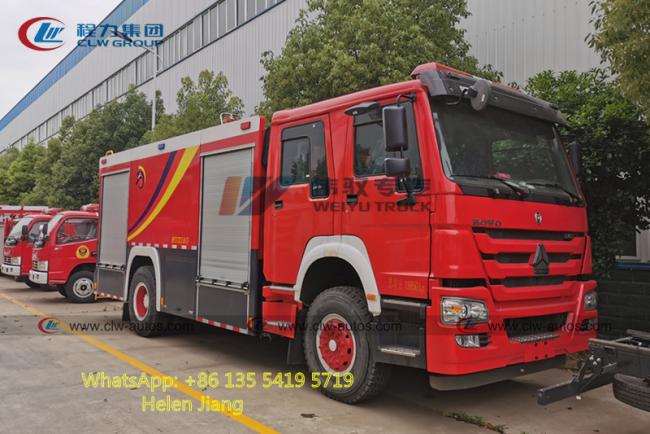

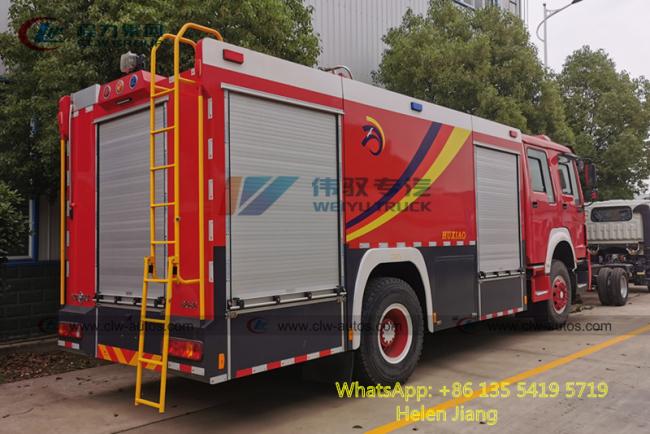

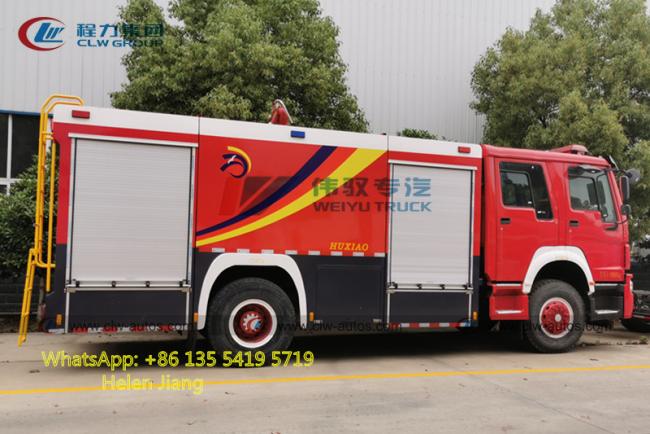

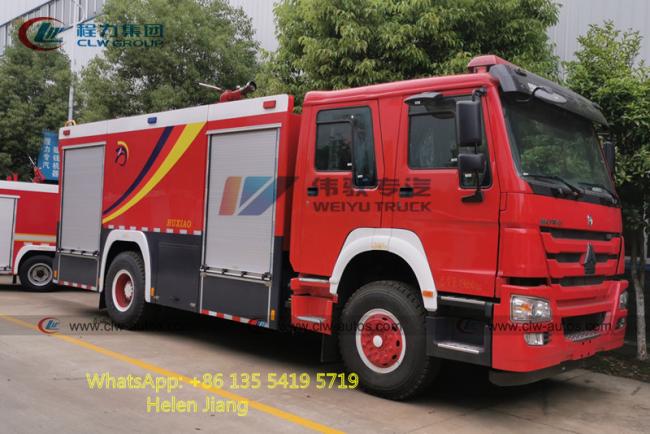

More Pictures for Reference:
Equipment come with fire trucks
Production Procedure
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
