SGS Tri Axle 56M3 Hydraulic Auger Grain Truck Trailer

Price Negotiable
Price: Negotiated
MOQ: 1 unit
Delivery Time: 30-35 days after receiving the deposit
Brand: CLW
Product Description

3 Tri Axle 56M3 Hydraulic Auger Bulk Feed Animal Fodder Wheat Grain Transport Delivery Tank Trailer



Product Description
1. Bulk feed transport vehicleis a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks,and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-classchassis.

2. Bulk feed truckconsists of the chassis, the loaded feed tank, the discharge auger system and the electron-hydraulic operating system.


3. Bulk feed transporter tanksare welded with high-quality steel plates. Different bins can be loaded and unloaded at the same time. Electron-hydraulic auger unloading saves manpower and time, convenient loading and unloading, less residue and beautiful appearance.



product Specification



Vehicle Parameters
Overall Dimensions
(L*W*H)(mm)
12955×2550×3980
Tank Dimension
(L*W*H)(mm)
12220×2540×2270
Total Mass(kg)
34850
Curb Weight(kg)
12350
Bulletin loading(kg)
22500
Theoretical loading(kg)
27000
Appearance color
White/ optional
Certification
ISO9001, 3C
Chassis Parameters
Parking brake type
Manual valve control spring brake cylinder
Driving brake system
Independent double circuit, air pressure, drum brake belt ABS
Tire specifications
11R22.5 16PR
Trailer traction pin height from the ground(mm)
1228
Trailer radius of gyration(mm)
1600
Trailer gap radius
2300
Wheelbase(mm)
7050+1310+1310






Tank Parameters
Tank gross volume (m3)
56
Space quantity
6
Conveying height(m)
10.2
Max conveying distance(m)
8.8
Discharge speed(Kg/min)
550-650
Residual rate(%)
≤0.22
Discharge by
Hydraulic auger
Tank drive form
The feed is conveyed by the lifting auger to the manual and wireless remote-control mode to realize long-distance transport and
improve the level of epidemic prevention. And the external power is available.
Electrical configuration
Complete set of Schneider Electric control system; conveyor motor ABB, with 20m external power cable, external power supply 380V
Painting
Professional anti-corrosion paint,Process: sandblasting,polishing, painting
Tank
Made of high quality carbon steel sheet;Round design, high strength, beautiful appearance; imported sealing device; strict welding
process to ensure quality..

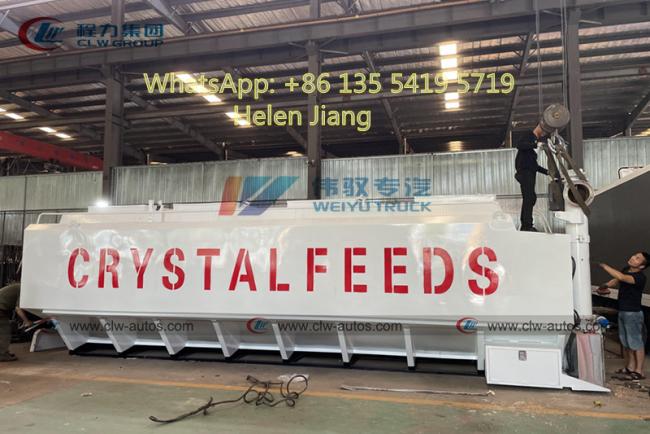

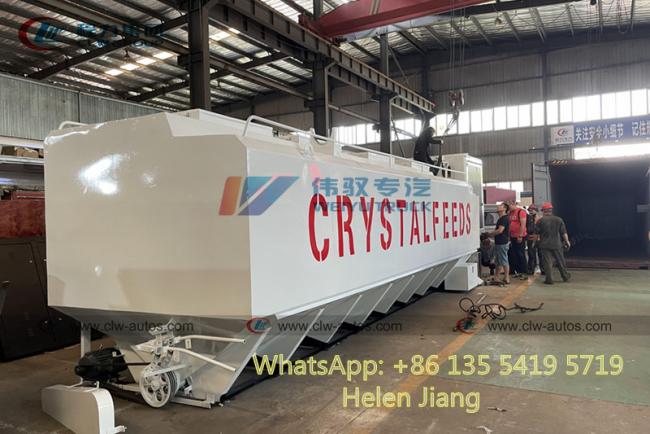

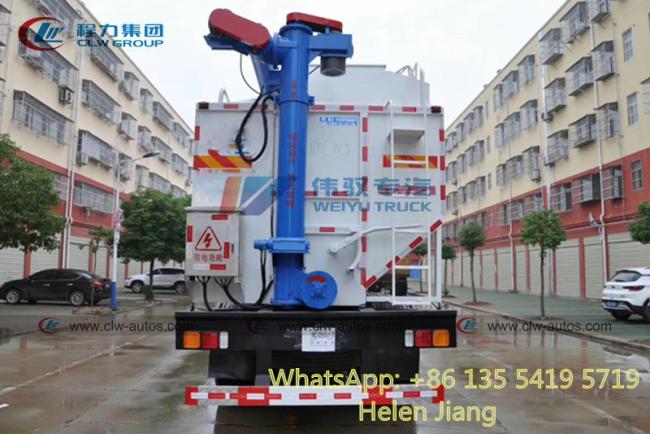

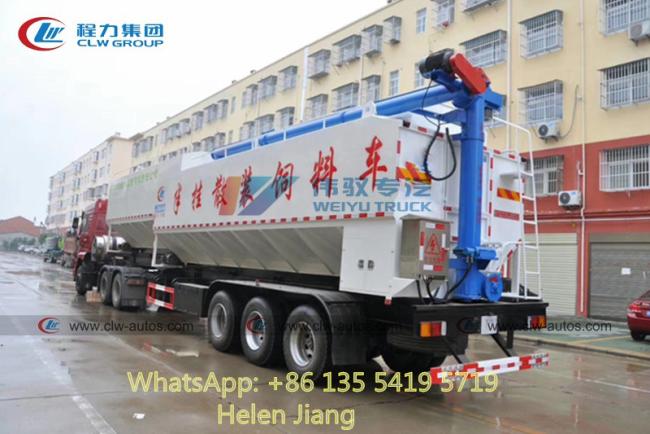

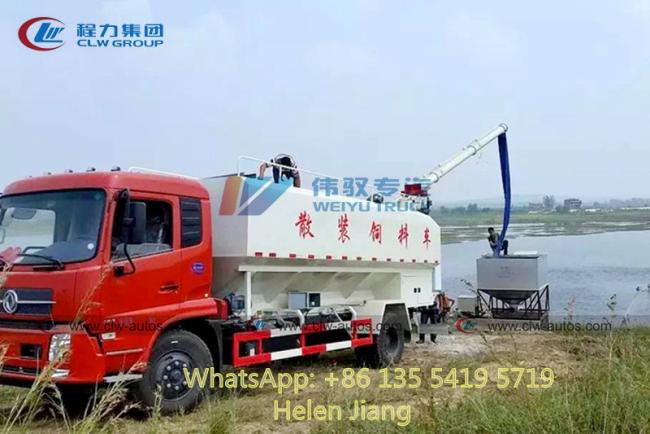

More detailed pictures for 3 Tri Axle 56M3 Hydraulic Auger Bulk Feed Animal Fodder Wheat Grain Transport Delivery Tank Trailer



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.





FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
