KAMA 4x2 5000L Vacuum Sewage Suction Truck For Sanitation Services
KAMA brand 4x2 5000liters 5cbm 5tons Vacuum sewage suction truck Septic tank truck
Product Description
1. Purpose: It is used for city and factory sewer cleaning, it's one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning!
2. Main parts: Water pump,pressure gauge,water gas separator,oil and gas separator...
3. Features: It can adopt high pressure water for flushing sewer.
4. 5,000 liters sewage vacuum suction truck .
Specifications
| Descriptions | Specifications and types |
| Truck Name | 5000Liters 5tons KAMA sewage suction truck septic tank truck |
| Truck Brand | CLW |
| Chassis | |
| Chassis Brand and model | KAMA |
| Approx. Dimension | 6500*2030*2850 mm |
| GVW./Kerb Wt. | 7360/ 4930 kg |
| Cab Capacity | 3 persons' seat |
| Air Conditioner | Air Conditioner is optional |
| Drive Type | 4X2, right hand drive or left hand drive |
| Fuel Type | Diesel |
| Engine Make & Model | Chaochai engine |
| Power | 120HP |
| Displacement | 3760 ml |
| Emission Standard | Euro 2 |
| Wheelbase/No.of axle | 3360 mm / 2 |
| Tyre Specfication | 7.00R16 |
| Tyre Number | 6 tyres and 1 spare tyre |
| Axles weight | Front axle 2.4 ton rear axle 4.2 ton |
| Transmission | WLY6T46 6 forwards 1 reverse |
| Max Speed | 80 km/h |
| Paint | Automative metallic paint |
| Upper body | |
| Sewer water tank capacity | 5000 litres/5tons |
| High pressure pump | High pressure pump pressure 16mpa, flow rate 130L/min |
| Vacuum pump | China famous brand water ring pump sk-6 |
| Equipped PTO. pressure gauges, one water-gas separator, one oil-gas separator, one oil tank reservoir, a lever inspection window and a piece of 7m suction hose , rear cover open , sewage tank lifting ,etc | |

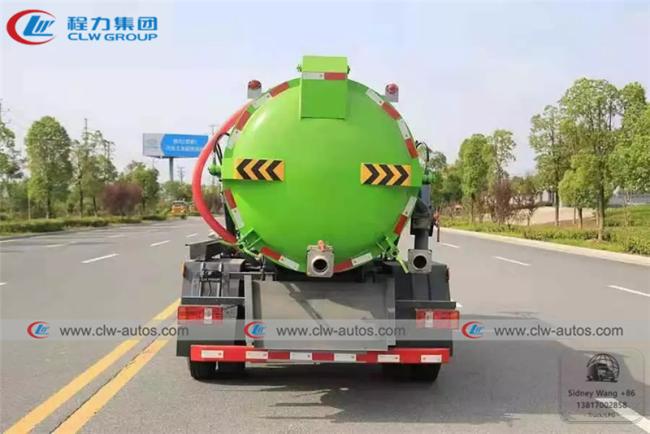

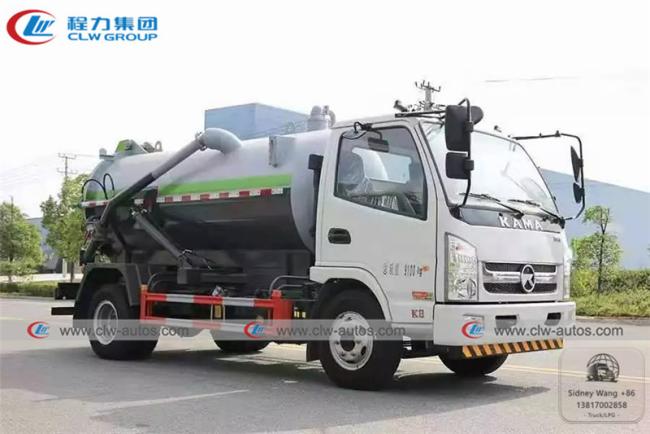

Reference Photos
Main Structure
Working Scene
Factory overview
Delivery and Shipment
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Fecal Suction tank we can get from your company?
A: we can supply 2CBM to 18CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
