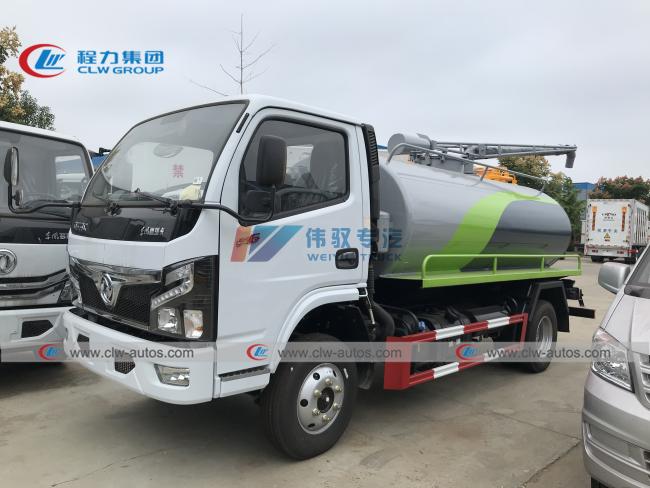

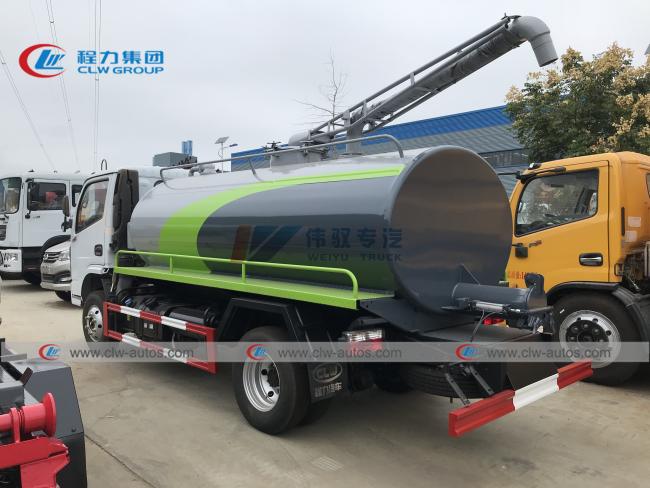

LHD / RHD Dongfeng 4x2 5cbm Vacuum Fecal Suction Truck
Foton 20000 Liters Vacuum Sewage Suction Tank Truck Fecal Suction Tanker Truck
Product Description
1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2. Chassis Brands: Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
3. Tanker body: From 2m3 to 25 m3 capacity.
4. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
| Vehicle Description | ||
| Overall dimensions | 5995*1980*2500mm | |
| GVW | 7360kg | |
| Curb weight | 3360kg | |
| Chassis brand | Dongfeng | |
| Traction type | 4*2 | |
| Tanker Description | ||
| Tanker | Capacity | 5cbm |
| Material | 5mm thickness, high quality carbon steel | |
| Structure | Welding, vacuum tank, Cylindrical | |
| Pump | Type | Vacuum pump |
| Flux | 45(L/S) | |
| Rating speed | 500~800(r/min) | |
| Shaft power | 4(kw) | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
| Pipe | Suction and discharge pipe | |
| Special function | Suction time ≤ 5min, | |
| Effective suction range ≥ 8, | ||
| Max vacuum degree ≤ 15 Kpa, | ||
| dump angle ≥ 45 | ||

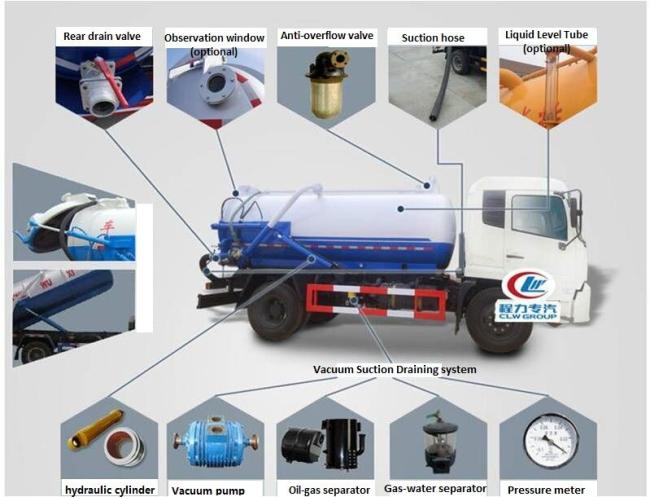

| Standard configuration | Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. | |
| Optional configuration | Tanker material: stainless steel. | |
| Vacuum pump : Italy or Spain vacuum pumps. | ||
| Anti-rust coating inside tank. | ||
| Sprinkler function. | ||
| Chassis Description | ||
| Chassis Brand | Dongfeng | |
| Steering | LHD/RHD | |
| Cab | Single row, with A/C | |
| Wheelbase | 3300mm | |
| Tire specification | 7.00R16 | |
| Tire quantity | 6 tires and 1 spare tire | |
| Engine | Engine model | Yunnei 4100 |
| Emission level | EURO 2or3 | |
| Horse power | 88hp | |
| Gearbox | 5 forward and 1 reverse | |
| Brake system | Air brake | |
| Axle | Front | 2tons |
| Rear | 4tons | |
| Fuel tanker | Type | Carbon steel |

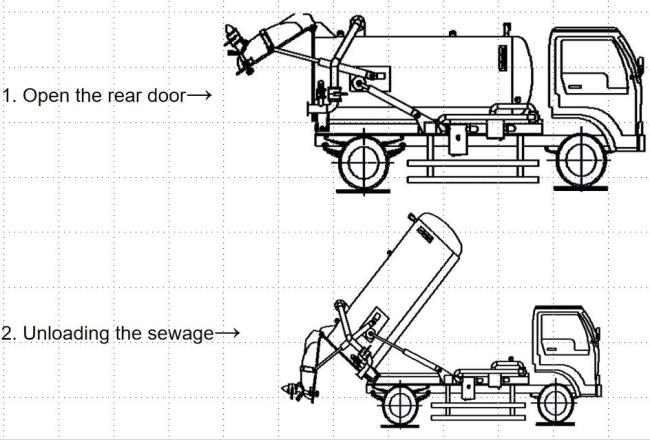

Discharge

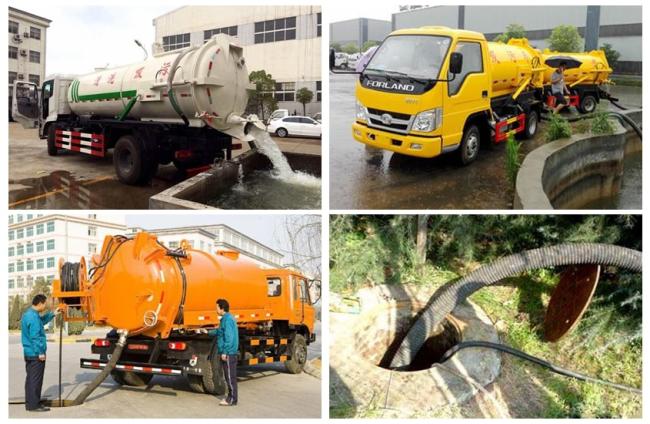

Working Show
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Sewage Suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
