Sinotruk Howo 4x2 8-10CBM waste collection truck Skip Loader Swing Arm Garbage Truck
Sinotruk HOMAN 4X2 10M3 10CBM Skip Loader Garbage Bins/Container Swing Arm Garbage Truck
Product Description
- New half-row cab, thickened high-strength front bumper
- Front fog lights,wide-angle rearview mirror, front road mirror
- 8 forwards &1 reverse 8-speed gearbox
- YC6J190-33 YUCHAI diesel engine
- Wheelbase 4200mm 4500mm
- 9.00R20 10.00R20 tires
- 5 tons front axle, 10 tons rear axle
- Intercooled supercharged.
1. Swing Arm Garbage Truck ( garbage collecting truck, garbage transport truck), mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines and apply to transport household waste in residential area.
2. According to loading and unloading type, it is divided into the following categories:
1) dump garbage truck,
2) hook arm garbage truck,
3) compactor garbage truck,
4) bswing arm garbage truck,
5) self-loading garbage truck,
6) sealed type garbage truck.
The Specification for Sinotruk HOMAN 4X2 10M3 10CBM Skip Loader Garbage Bins/Container Swing Arm Garbage Truck:
| Cabin | Driving type 4x2 | |
| H5 Cabin with two seats,with A/C. Right Hand Driven. 70°hydraulically tillable to the front as attached photo for ref. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8000x2500x3500 |
| Wheel base (mm) | 4500 | |
| Wheel track (front/rear) (mm) | 1980/1860 | |
| Approach/Departure angle(°) | 24/15 | |
| Weight in KGS | Tare Weight | 8000 |
| Loading Capacity | 10000 | |
| Front axles loading capacity | 5000 | |
| Rear axles loading capacity | 10,000 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | YUCHAI |
| Model | YC6J190-33 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 190 HP | |
| Emission standard | Euro Ⅲ | |
| Gearbox | DC6J65TC, 6 forwards &1 reverse | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 300 L | |
| Tire | 10.00R20 tires with one spare, totally 7 pcs. | |
| Swing arm system with cargo box | ||
|
||

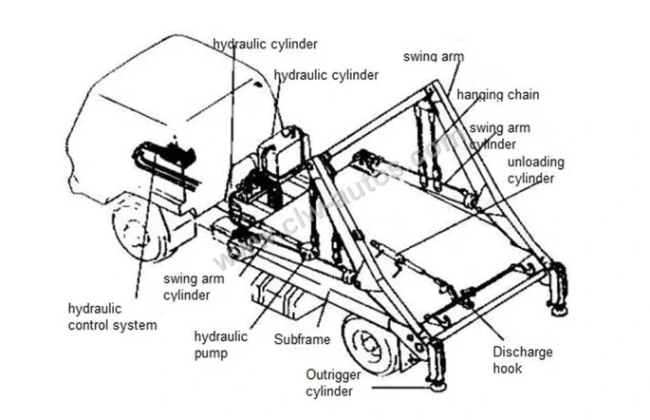

MAIN PARTS

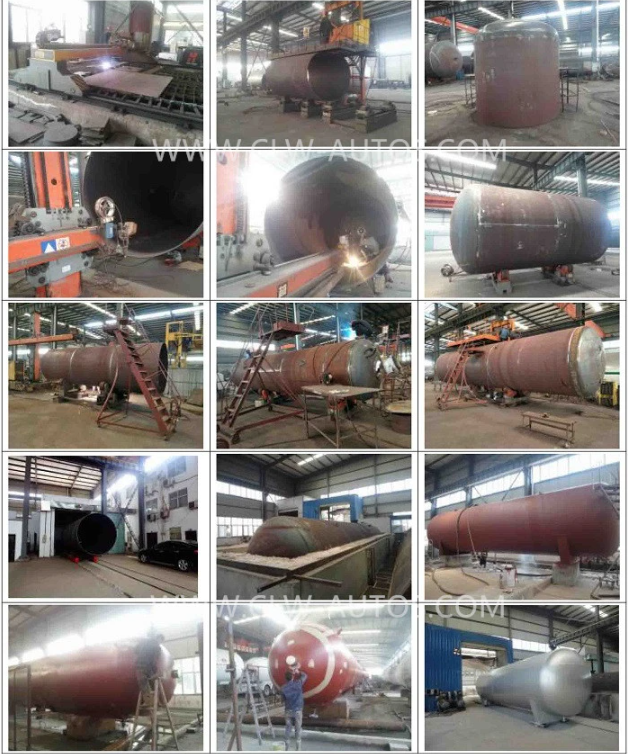

Production Process
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
