5 tons DONGFENG 8-10 CBM Recycling rubbish truck with High Compression Ratio
DONGFENG 8-10 CBM 5 tons Recycling rubbish truck with High Compression Ratio
PERFORMENCE:
Single/ half row /Double row reversible cab
* The new non-rib box, the plane arc is beautiful and generous,
*The effective compression volume is 6 cubic meters,
* Tail with flip feeding mechanism,
* Electronically controlled manual dual controllers, dual control boxes in the cab and the rear of the car,
* The tail has a 3 cm thick rubber sealing strip,
* The box can be sprayed with patterns and words as required.
Application:
-
urban residential areas;
-
communities;
-
large factories and mines;
-
institutions and colleges ;
-
narrow streets of the old city in the collection and transport of bottled, bagged and bulk household garbage;
-
waste recycling companies
Product Advantages
1. Hydraulic system, including the control valve, oil cylinder, connecting pipeline and other key parts, has advanced structure, reliable performance, simple operation and convenient maintenance.
2. Advanced electric control system adopts imported PLC integrated control, mechatronics-hydraulic integrated control, and high degree of automation.
3. The pushing plate control valve is equipped with a back pressure valve, which can highly improve the loading efficiency.
4. The beautiful streamlined appearance design, and the upper body adopts special high-strength anti-corrosion steel plate, which extends the service life of the truck.
5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.
Spec. of 5 tons Dongfeng 8-10 CBM Residential Garbage Compressed Garbage Truck
| Drive type | 4x2, New condition,left hand drive | ||
| Vehicle Main Dimensions | (L x W x H)mm | 7430×2350×2850 | |
| Wheel base (mm) | 3800 | ||
| Track front/rear mm | 1745/1630 | ||
| F/R Axle-Load | 2200/5000 | ||
| Approach/departure angle | 21/16 | ||
| Weight in KGS | Curb Weight | 5000 kg | |
| GVW | 7200 kg | ||
| Max. driving speed(km/h) | 95 | ||
| Engine | Brand | Yuhcai ,Diesel ENGINE | |
| Model | YC4FA120-33 | ||
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 120 hp | ||
| Emission standard | Euro III | ||
| Gearbox | 6 forwards& 2 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 7.50R16,6 pc including 1 spare tire | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Equipment for Compressed garbage truck | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Garbage Box Volume | 8 CBM/8 CBM | ||
| Body material | Floor plate 4mm and side plate 4 mm | ||
| Side sewage box size | 180L(optional equipment) | ||
| Filling structure sewage box size | 250L | ||
| Filling time | ≤28 s | ||
| Loading cycle time | ≤10 s | ||
| Discharging cycle time | ≤48 s | ||
| Hydraulic oil box volule | 80 L | ||
| System pressure | 16 Mpa | ||
| Hydraulic System | Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board. | ||
| Push Panel | Used to push and squeeze garbage,works together with the skid way in the box | ||

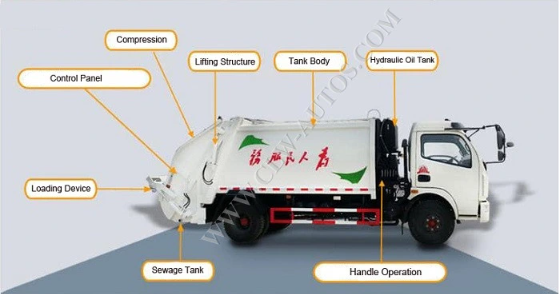

Main structure

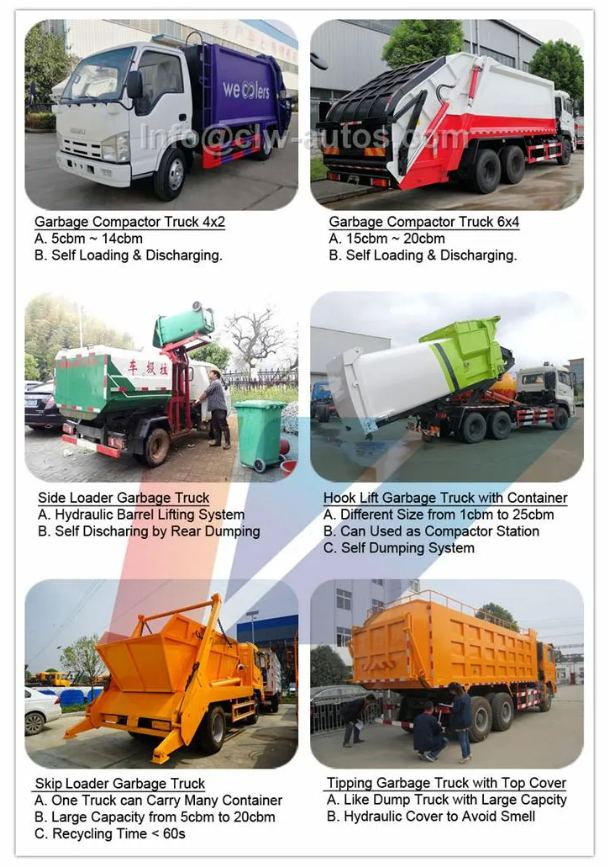

Other types of garbage truck
