Large Capacity 18-20m3 Dongfeng Brand Optional Color Garbage Disposal Truck
Large Capacity 18-20m3 Dongfeng Brand Optional Color Garbage Disposal Truck
Product Features
- Widely used, support customized
- Heavy load, simple operation
- Plate thickening, fully function
- High-quality Q345 manganese steel of WISCO, with four sides and four bottoms, curved box body, which has good force, no deformation, and larger loading capacity.
- Box body adopts automatic welding (full welding), which does not scrape dust, does not leak, beautiful and durable.
- Double sewage collection tank design, sealed treatment, eliminate secondary pollution, sewage tank is installed with a unique sewage valve, reliable sealing, not easy to block.
| Truck Chassis Specification | |||
| Chassis model | EQ1166GJ5 | ||
| Cab | Dongfeng half row cab | ||
| Driving Type | 6*4 LHD | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(mm) | 9360×2462×2710 | ||
| GVW( kg) | 16000 | ||
| Mass in working order ( kg) | 9500 | ||
| Wheelbase(mm) | 4350+1300 | ||
| F/R overhang (mm) | 1245/2465 | ||
| Approach/Departure Angel | 32/14 | ||
| Tire | 10.00R20,11.00R20 | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 5-speed | ||
| Enging | Model | EQB210-20 Cummins | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 5880 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Material of tank | Material : Q235,Thickness :4(mm) side /4(mm) rear | ||
| Dirty tank volume | 18cbm/18000Liters/18M3/15tons | ||
| Filler volume | 500L | ||
| Filing time(s) | 8~10s | ||
| Filling cycle time(s) | 50~60s/once | ||
| Discharge type | Rear Discharging | ||
| Time for Discharging | 30-40S | ||
| Hydraulic pressure | 16Mpa | ||
| Controlling way | Manualy and electrical control | ||

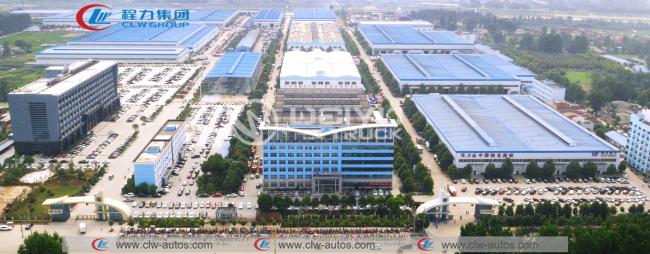

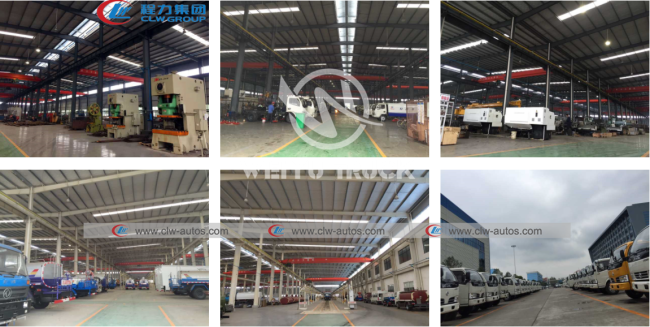

Our Factory
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
