Dongfeng Road Sweeper Truck 5M3 4x2 5cbm Dust Collection Waste Cleaning
Dongfeng 4x2 5cbm road Waste cleaning truck 5M3 Dust collection Truck
Features
1. Four sweeper brush and sucker for sweeping combination with excellent sweeping ability,
2. each side of the broom or brush can work at the same time, or work independently on each side,
3. cleaning device mechanism is simple and reliable, which is hard to damage;
4. all stainless steel dust bins, water tanks,
5. hydraulic system core components are all imported;
6. cleaning system powered by auxiliary engine, which do not interfere with vehicle power.
- It is a new type of high-efficiency sweeping equipment integrating road sweeping, garbage recycling and transportation.
- It can be widely used in road highways, municipal and airport roads, urban residential areas, parks and other roads.
- Pavement sweepers not only clean trash, but also dust and purify the air medium on the road
- Ensures the beauty of the road, maintains the sanitation of the environment, but also maintains the good working conditions of the road surface and prevents traffic accidents. The occurrence and further extend the life of the road.
Specification :
| Model | YZR5080TSLE | ||
| Overall dimensions | 6200×2000×2590mm | Gross Weight (kg) | 8275 |
| Wheelbase (mm) | 3308 | Curb Weight (kg) | 3900 |
| Front Track (mm) | 1740 | Approach Angle | 20 |
| Rear Track (mm) | 1610 | Departure Angle | 11 |
| Number of axles | 2 | Front Overhang (mm) | 1130 |
| Traction system | 4×2 | Rear Overhang (mm) | 2170 |
| Max speed (km/h) | 103 | Number of Tyres | 6 |
| Front Axle Load (kg) | 3300 | Tyre Specification | 7.5R16 |
| Rear Axle Load (kg) | 4975 | Allowable Cab Passengers | 2 |
| Paint | Any Color Available | Fuel | Diesel |
| Water tank volume(cbm) | 4cbm | Garbage tank volume(cbm) | 5cbm |
| Max.cleaning Width(mm) | 2800 | Maximum Sweeping Capacity(cbm/h) | 40,000 |
| Sweep Speed (km/h) | 3-25 | Sweeping Efficiency | ≥95% |

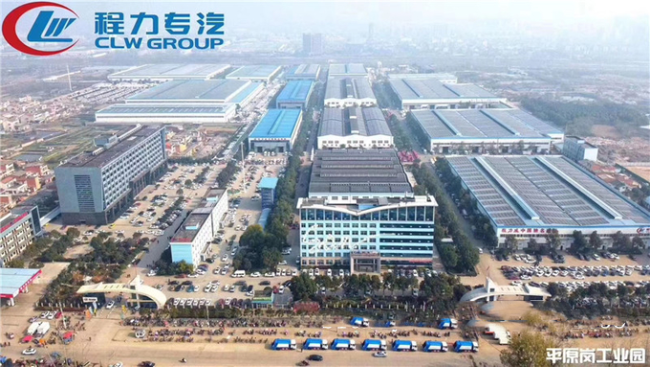

Factory sence
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
