Sinotruk HOWO Sanitation14cbm Heavy Duty Domestic Garbage Truck Rear Loader Compactor Truck
Sinotruk HOWO Sanitation14cbm Heavy Duty Domestic Garbage Truck Rear Loader Compactor Truck
Product descriptions:
1. HOWO chassis with high quality and good reputation
2. WEICHAI 190HP diesel engine match with fast 8-speed gearbox
3. 14cbm tank volum with side 4mm, bottom 5mm Carbon Steel-Q345 tank material
4. 3.9 T /8.5T front and rear axle, good load-bearing performance
5. Optional different flip type like hanging bucket container, all-sealing container, swing arm container, triangle container
6. Bottom box and filler are made of thickened steel plate
7. Garbage Compact Ratio is up to 0.75tonnes/cbm
Product advantages:
-
Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.
-
It is equipped with computer control system for loading and unloading operations.
-
One Person operate that can reduce sanitation working time and greatly improves the working environment.
-
It install computer control system and manual operation system in order to improve the vehicle using rate.
| 14 cbm Garbage Compactor Truck | |||||
| Overall Dimension | 8900*2550*3300mm | Gross Vehicle Weight | 18000 kg | ||
| Curb Weight | 11000kg | Loading Weight | 7950kg | ||
| Wheel Base | 4700 mm | Front / Rear Axle | 6500/11500kg | ||
| Cabin | Right Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio | ||||
| Engine model | Dissel | ||||
| Engine horsepower | 190HP, EURO4 | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 8 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 11.00R20(6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 14CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 0.75 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with high quality dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time<14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||

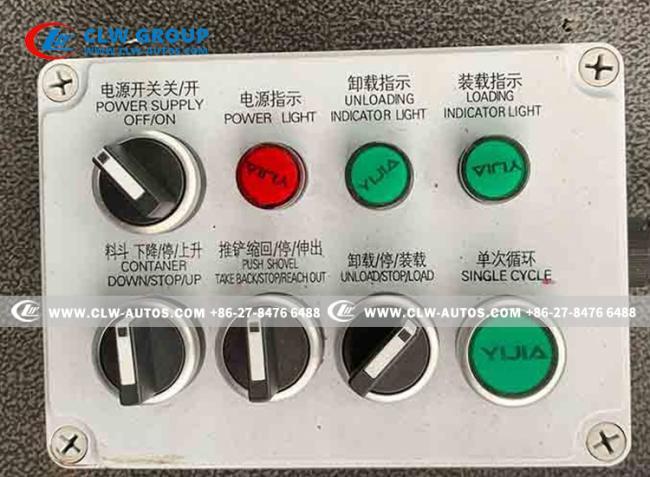

1. Cab operation panel for rear loading system

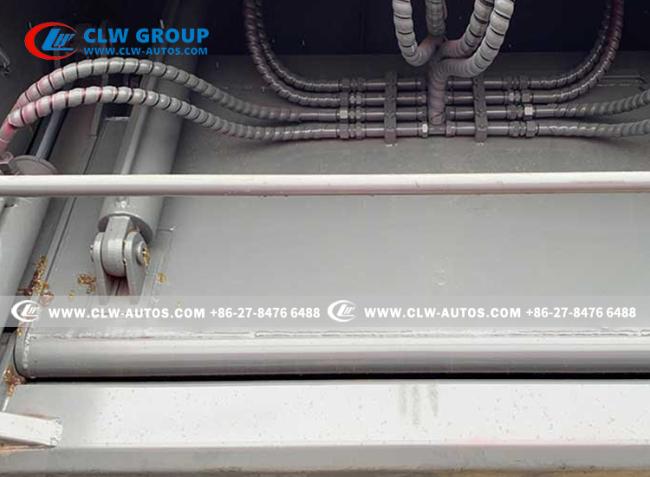

2.Hydraulic scraper operation feeding system
3.Large space cab, multi-function adjustable seat
