HW70 PTO Rear Loader Howo Garbage Compactor Truck Right Hand Driving 12m3 12cbm
Howo 12m3 12cbm Right Hand Driving HW70 PTO Rear Loader Garbage Compactor Truck For Sale
Product descriptions:
1. HW76 one and half row cabin
2. High quality Q345 managnese steel
3. The truck's tail is equipped with flip feeding mechanism and has 3cbm thick rubber sealing strip
5. Garbage box can be sprayed with patterns and words as required.
6. Double sewage collection tank

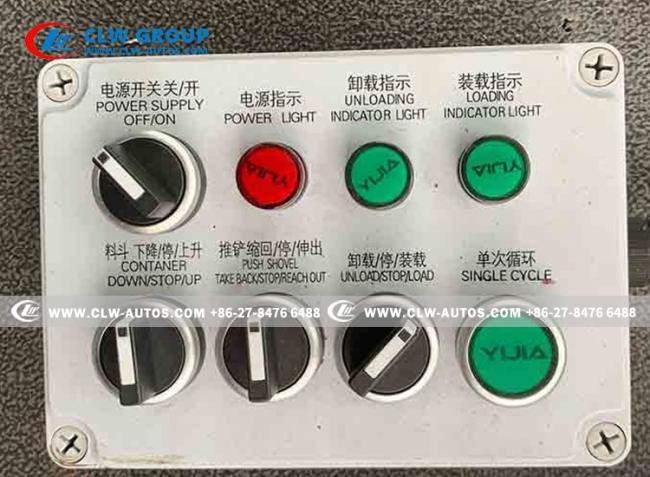

7. Manual and electronical dual controllers
8. Effective compression volume is up to 12cbm
Exporting countries:
1. Asia: Nepal, Pakistan, India, Indonesia etc.
2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica,Tobago etc.
3. Africa: Kenya, Lesotho, Botswana, Seychelles, Mozambique, Namibia etc.
4. South Africa: Uganda, Zambia, Tanzania, Zimbabwe etc.
Product parameters:
| Wheel Base | 4600 mm |
| Front Axle | 7000kg |
| Rear Axle | 16000kg |
| Engine | WEICHAI Diesel engine WD615.62 |
| Engine horsepower | 266HP EURO2 |
| Displacement | 9726 mL (Diesel) |
| Rated Rotation Speed | 2200 rpm |
| Engine type |
· Six cylinder in-line vertical, · super charge inner cooling, · Four-stroke, · water-cooled, · direct injection,
|
| Gearbox |
· Manuel type · HW19710, · 10-speed forward and 2 reverse
|
| Cabin |
· Howo spacious cabin, · Right hand drive; · One row and a half, · 2 Passenger allowed, · with A/C
|
| Tire | 295/80R22.5 (6 pcs with one spare) |
| Exhaust Pipe | At front of Cabin for safety |
| Fuel box | Aluminum alloy,400L |
| Garbage Truck Body | |
| Tanker body material | Quality high tensile Q345 carbon steel |
| Shape | rectangular box, arc-shaped rear |
| Thickness | Side 4mm, Bottom 5mm |
| Garbage Container Size | 12CBM |
| Filling hopper volume | 0.73 CBM |
| sewage box volume | O.6cbm |
| Working rotation speed | 1400 r/min |
| Compaction ratio | 0.75-0.8T/m³ |
| Compacting cycle time | 24~28 s |
| Tailgate lifting time | 10~15 s |
| Tailgate lifting Angle | 85~88 ° |
| Unloading cycle time | 60~75 s |
| Oil pump displacement | 63 ml/r |
| Hydraulic oil box size | 125 L |
| System pressure | Max. 240 bar and working pressure 180~200 bar |
| PTO operation method | Pneumatic |
| Operation and Control | Both Automatic(Electrical) and Manual (hydraulic) |
why do you choose us for garbage truck?
- Certificate: ASME, ISO, BV, SGS, CCC etc.
- More than 30 independents workshops for different types of trucks
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians and about 8000 staffs
- 800kinds of trucks and semi-trailers with various functions
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- More than 100,000 trucks and semi-trailers annually.
- Truck Sold to 90 countries
- Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK,FOTON,FAW,ISUZU,ETC
- We can handle production of bulk order water trucks of tender and government purchase in required time

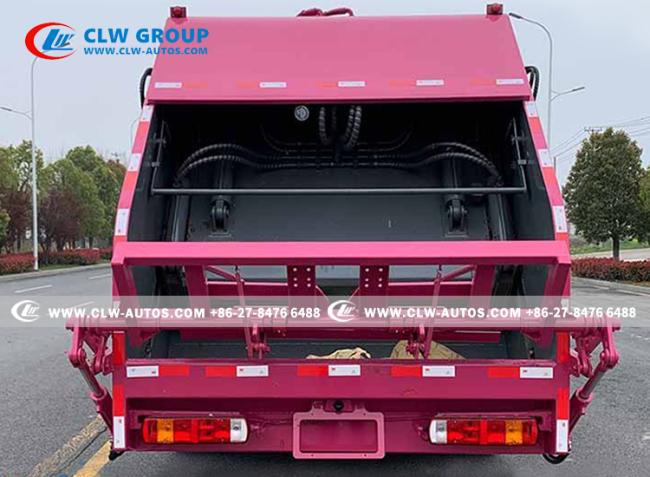

Detailed photos:
