Isuzu 20cbm 20m3 Hook Lift Waste Collection Truck Hooklift Roll Off Truck
Isuzu 20cbm 20m3 Hook Lift Portable Waste Collection Truck Hooklift Roll-Off Truck
Product description:
1. One truck can be matched with many rubbish bins. Which can improve the transportation capacity of the vehicle, saving energy and cost.
2. Adopt full hydraulic control operation system, garbage compartment and chassis can be completely separated, with reasonable structure, simple operation, stable, high efficiency, good sealing performance, convenient dumping and other advantages.
3. The dustbin is made of high quality wisco material.
4. The rear for mechanical locking device, the back door with sealing strip to prevent dirt, dust, debris caused by scattered.
5. You can select 2-4 rollers below the dustbin to facilitate movement and reduce the working pressure of the hook arm.
6. Sleeve joint, high pressure hose and high pressure steel pipe are installed reasonably,which ensure that there is no leakage for a long time, so as to be reliable, convenient maintenance and prolong the service life.
Product paremeters:
| Wheel Base | 4350+1350 mm |
| Front Axle | 7000kg |
| Rear Axle | 18000kg |
| Engine | Isu zu Diesel engine 6HK1-TCSG40 |
| Engine horsepower | 280HP EURO4 |
| Displacement | 7780 mL (Diesel) |
| Rated Rotation Speed | 2400 rpm |
| Engine type |
|
| Gearbox |
|
| Cabin |
|
| Tire | 1100R20 (10 pcs with one spare) |
| Exhaust Pipe | At front of Cabin for safety |
| Fuel box | Aluminum alloy, 400L |
| Garbage Truck Body | |
| Tanker body material | Quality high tensile Q345 carbon steel |
| Shape | rectangular box, arc-shaped rear |
| Thickness | Side 4mm, Bottom 5mm |
| Garbage Dimension | 5600*2300*1500mm |
| Standard Configuration | With one garbage bin, with hydraulic rear outrigger |
| Dump type | Hydraulic cylinder lifting and self-loading |
| Dump angle | ≥45° |
| Hydraulic system pressure | ≤16Mpa |
| Protective Material | Q235A Carbon Steel |
| Controlling Way | Three-way hydraulic control valve |
| Other Configuration |
1. Reinforced hydraulic swept-body system, with Double hydraulic cylinder
2. Swing Arm, Chain.
3. Hydraulic multi-way valve control.
|
| Options | Electronically controlled valve, trash bin type, trash bin quantity, etc. |
| Cycle times | Less than 40s |

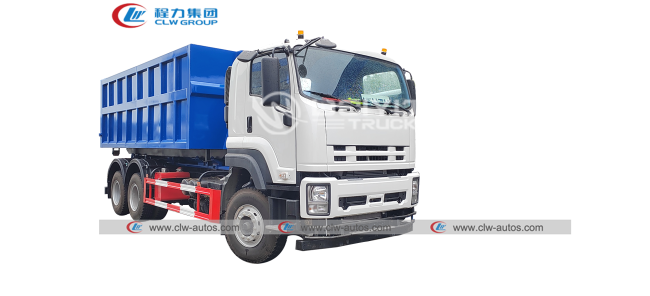

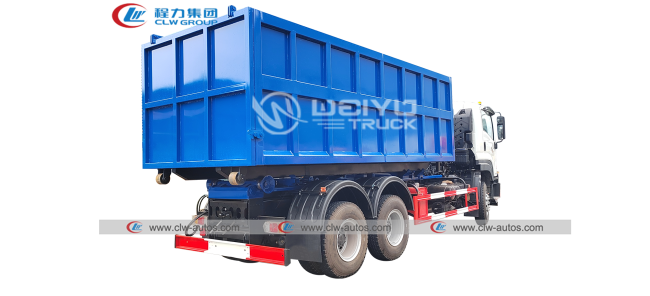

Reference pictures
Our Factory
Why choose us:
- Certificate: ASME, ISO, BV, SGS, CCC etc.
- More than 30 independents workshops for different types of trucks
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians and about 8000 staffs
- 800kinds of trucks and semi-trailers with various functions
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- More than 100,000 trucks and semi-trailers annually.
- Truck Sold to 90 countries
- Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK,FOTON,FAW,BEIBEN,ETC
- We can handle production of bulk order water trucks of tender and government purchase in required time
