Sinotruk Howo 14tons Waste Removal Truck 18m3 for Solid Rubbish Management Disposal
18m3 Sinotruk Howo14tons Waste Removal Truck Solid Rubbish Management Disposal Truck
Chassis description:
1. Howo 6X4 12wheeler right hand driving
2. Howo new facing cabin with one and half row
3. Weichai 371HP diesel engine with euro2 emission standard
4. HW19710 gear box,10 forwards& 2 reverse
5. Front 7t and double rear axle 16t
Upper body description:
1. 18cbm/18m3 tank volume
2. Carbon steel tank material
3. Side 5mm bottom 5mm thickness
4. Optional various types of garbage skip loader
Product advantages:
1. Frame structure
2. Sealing treatment to eliminate secondary pollution

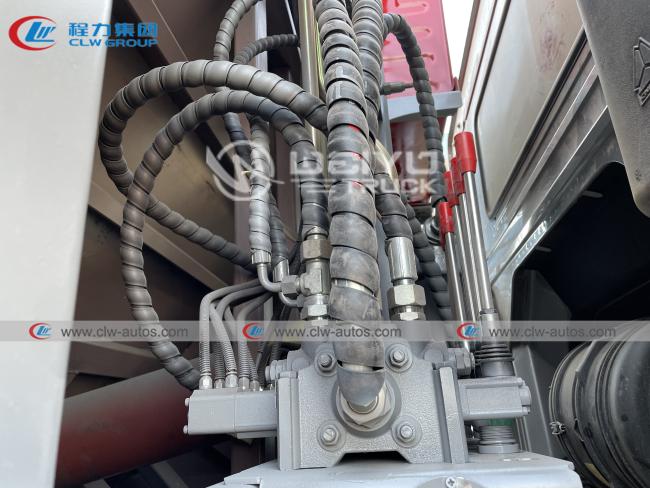

3. Electric-hydraulic joint control
4. Hydraulic lift safety circuit
5. Automatic and manual operating system
6. Automatic control of engine power output
7. Advanced electronic control system
8. Convenient operation control
9. A variety of bucket (bucket) mechanisms
10. High quality imported components
Product specifications :
| Drive type | 6X4, New condition, RHD | ||
| Vehicle Main Dimensions | (L x W x H)mm | 9850*2500*3330 | |
| Wheel base (mm) | 4625+1350 | ||
| F/R Axle-Load | 7000/16000 kgx2, | ||
| Approach/departure angle | 20/12 | ||
| Curb weight | 9600 kg | ||
| GVW | 25000 kg | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Brand | Sinotruk howo | |
| Type | 6 -stroke direct injection, 4cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 371hp | ||
| Emission standard | Euro2 | ||
| Gearbox | HW19710,10 forwards& 2 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 295/80R22.5, 10pcs with 1 spare | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Upper Body | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Thickness | Side 5mm, bottom 5mm | ||
| Garbage Box Volume | 18CBM/18000liters/18M3 | ||
| Remarks |
1. Color is optional 2.Customized LOGO painting as per customer reques |
||
Reference photos:
1. Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.
2. It is equipped with computer control system for loading and unloading operations.
3. One Person operate that can reduce sanitation working time and greatly improves the working environment.
4. It install computer control system and manual operation system in order to improve the vehicle using rate.

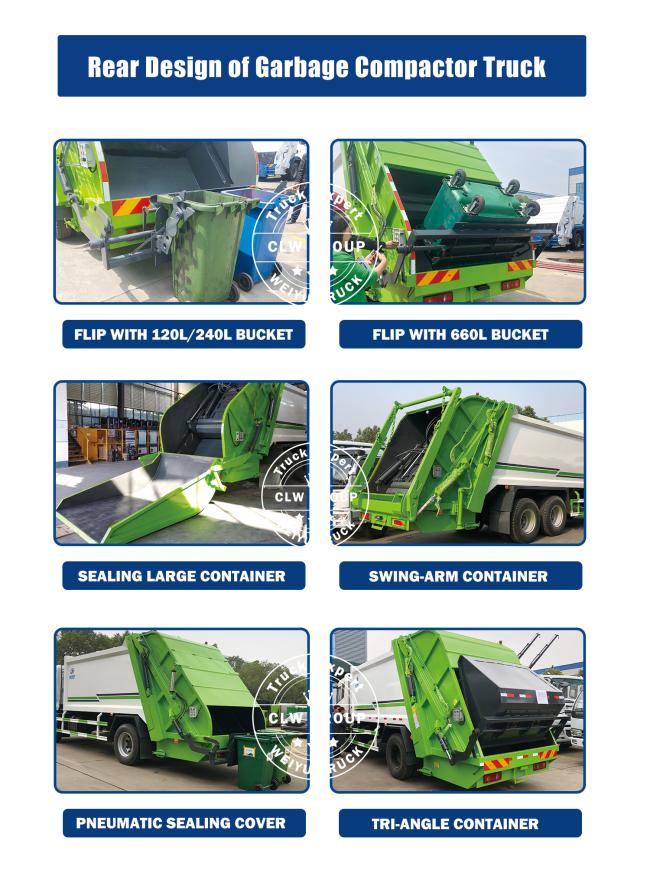

Detailed photos:
1.Hanging bucket trash hopper
2. All sealing large container
3. Swing arm container
4. Tri-angle container
