15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck
15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck
Chassis parameters:
1. Chassis brand: Shacman L3000 4x2 left hand driving
2. Cabin: L3000 cabin with one and half row
3. Engine: Weichai diesel engine 210hp Euro 2 emission standard
4. Front/rear loading weight: 4.8t/10t
5. Gearbox: 8 speed forward with 2 reverse, manual type
Upper body parameters:
1. Tank volume: 15cbm, 15m3, 15000liters, 15000L
2. Tank material: High Tension Steel Q235/Q345,stainless steel 304 for option
3. Sprinking Width: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump.
Features:1. The water tank truck adopts Shacman chassis for loading, equipped with tanks, loading tank assembly, self-suction pump, power rotation system, piping system and sprinkler assembly.
2. It is equipped with the functions of adjusting sprinkler to change sprinkling directions and angles to adapt different demands.
3. Antiaircraft gun can be used for urban and rural plants, and fire emergency.
4. The rear bottom is equipped with cylindrical nozzles, which can pour the dust fall from the middle sprinkler,
5. The top duckbill nozzles can irrigate the flowers and trees on both sides.
6. With the functions of spraying, pressing dust, high-low position spraying, and flushing guard bars and barrier belts.
7. With intelligent control system, drivers can complete various operations in the cab.
| Condition | New condition/Left hand drive/4x2 | ||
| Chassis | Brand | Shacman | |
| Curb weight(kg) | 6300 kg | ||
| Gross weight(kg) | 18,000 kg | ||
| Wheelbase(mm) | 5000 mm | ||
| Dimensions(mm) | 8300*2480*2900 mm | ||
| Front Loading Capacity (Ton) | 6 | ||
| Rear Loading Capacity (Ton) | 9 | ||
| Max. driving speed(km/h) | 100 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust valve brake | |||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 10.00R20 | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cabin | Single row seat, Tiltable. It can accommodate two people. With air conditioner. | ||
| Engine | Brand | WEICHAI | |
| Fuel type | Diesel | ||
| Power(kw) | 154kw | ||
| Horsepower(HP) | 210 HP | ||
| Cylinder number | 6 | ||
| Emission standard | Euro 3 | ||
| Upper | |||
| Water tank | Capacity(cbm/tons) | 15 | |
| Tank Dimension(mm) | 5000*2000*1500 | ||
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 5 | ||
| Water pump | China local brand | ||
| Suction Height | 7 meters | ||
| Function | 1, Front Side Rear Sprinkling width≥ 14m | ||
| 2, Water cannon range≥ 28m | |||
| Remarks | 1. AM/FM radio | ||
| 2. 2pcs water hose. | |||
| 3. Color is optional | |||

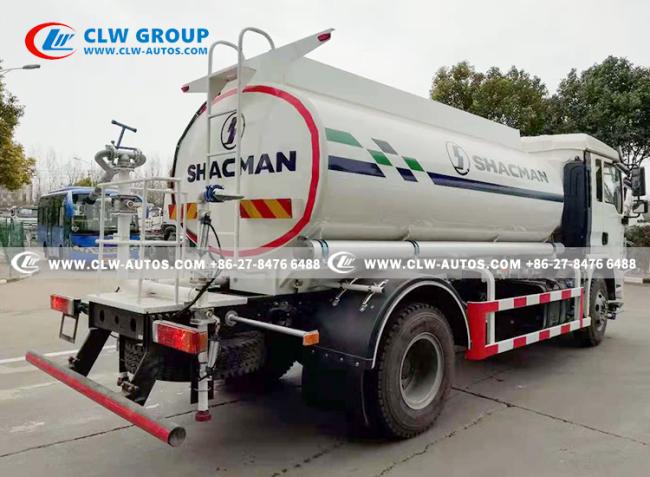

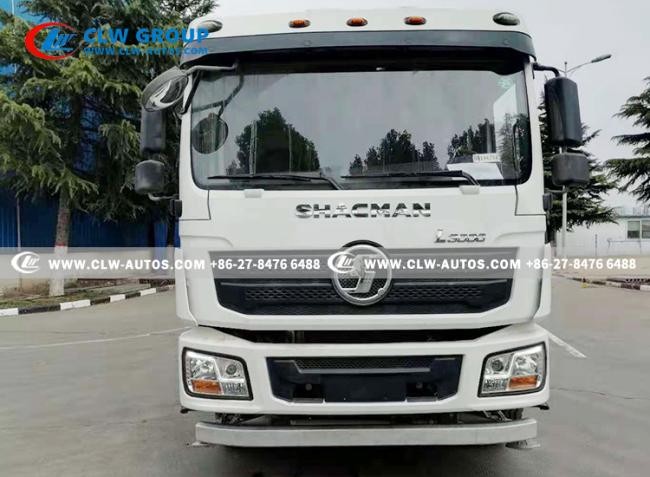

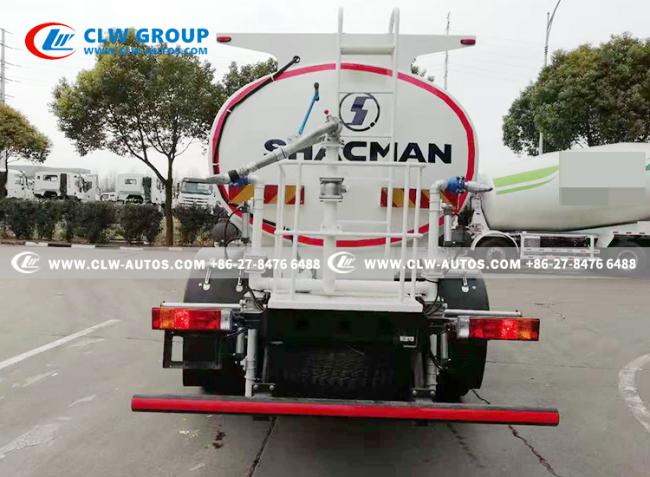

Reference photos for water bowser truck
Water Truck Diagram:
Working Show
Truck Details
Water bowser truck production line:
Factory overview
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
