5000liters Stainless Steel Water Tank Truck Water Transportation Truck
5000liters Stainless Steel Water Tank Truck Water Transportation Truck
Chassis parameters
Dimensions: 6500*2000*2800mm
Cabin: 4x2 Left hand driving with single row
Engine:Yuchai diesel engine with 115hp
Gearbox: 5-speed
Front/rear loading weight: 1.5t/3.5t
Tire:7.00R16
1. The tank body is made of high-quality stainless steel with more beautiful appearance and excellent sealing performance.
2. It is formed at one time by large plate bending machine, advanced equipment and automatic welding process
3. The lower end of the middle diaphragm is provided with a through hole,
4. The tank is equipped with anti swing and anti wave diaphragm.
5. The diaphragm in the tank has the function of anti wave, so as to reduce the impact of the water in the tank when the vehicle is driving.
6. It is optional for 1,2,3,4 compartments.
Specifications of DONGFENG 4X2 5cbm water tank truck
| Product name | Dongfeng 5,000L water tanker truck | ||||
| Total mass (kg) | 8400 | Tank volume (m3) | 5 | ||
| Rated mass (kg) | 5270 | Dimensions (mm) | 6500*2000*2800 | ||
| The number of passengers in the cab (person) | 2 | Maximum loading weight(kg) | 5,000 | ||
| Cabin | Single row | Maximum speed (km/h) | 85 | ||
| Tank material | stainless steel | ||||
| Chassis technical parameters | |||||
| Number of axes | 2 | Number of tires | 6 with one spare | ||
| Wheelbase (mm) | 3300 | ||||
| Tire specifications | 7.00R16 | ||||
| Gear box | 5-speed | Front loading weight(kg) | 1500 | ||
| Fuel type | Diesel | Rear loading weight (kg) | 3500 | ||
| Emission standard | Euro2 | ||||
| Engine model | Engine manufacturer | Engine capacity | Engine power | ||
| Yuchai | Guangxi yuchai Machinery Co., Ltd. | 3256 | 115hp | ||

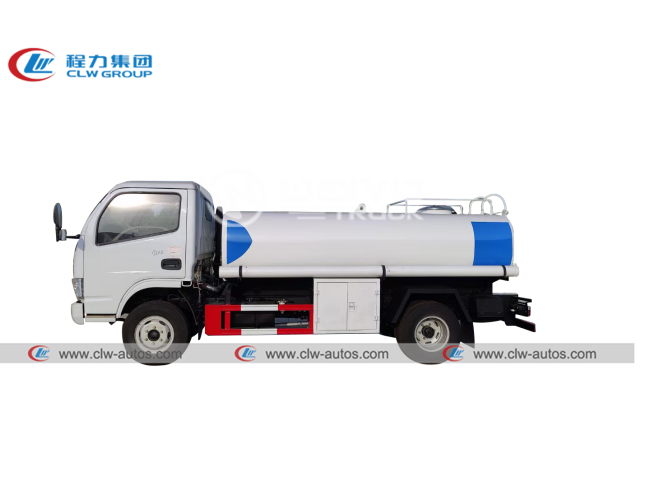

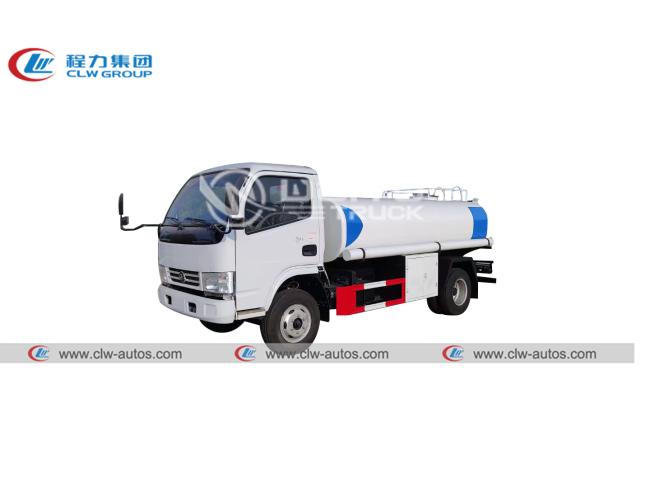

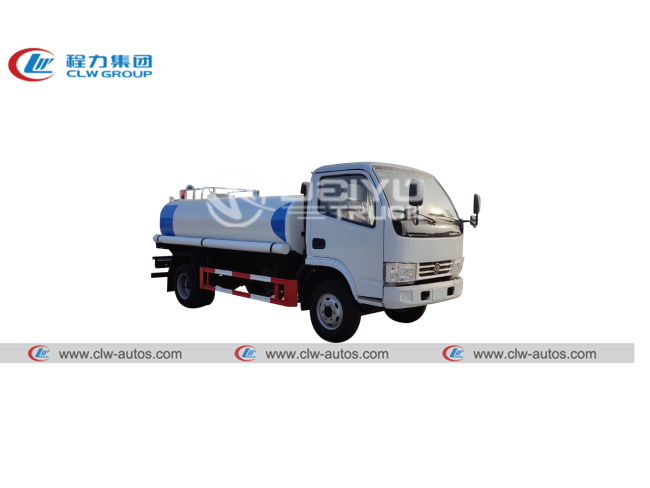

Reference photos for dongfeng water tank truck

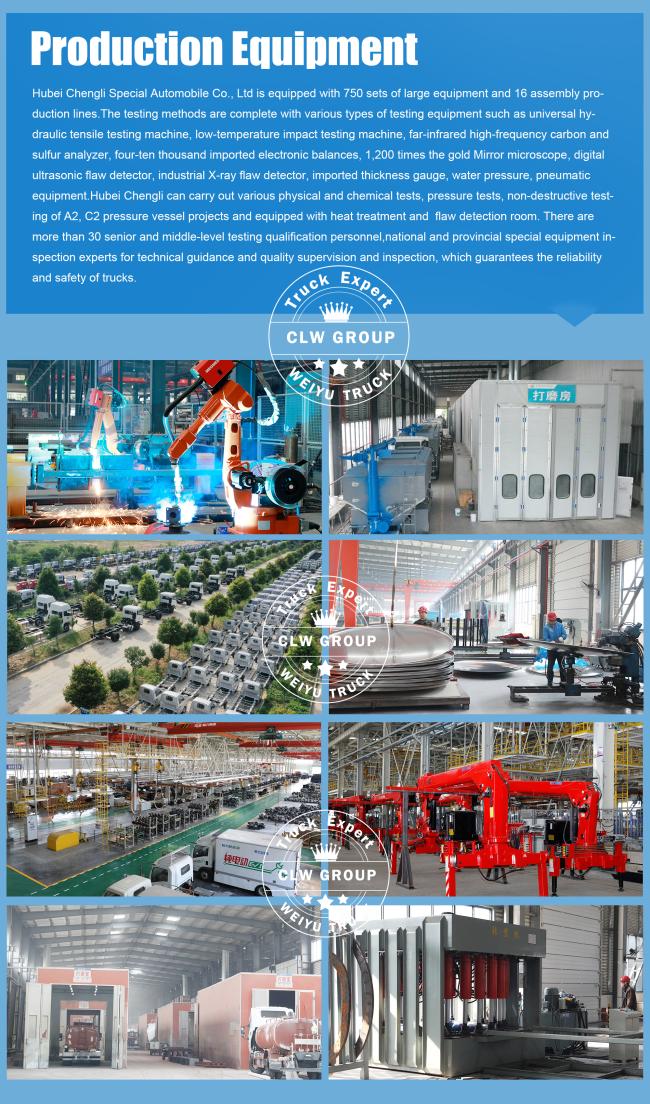

Factory information
a. Before purchasing:
1-Quick reply on customers' inquiry;
2-Professional suggestion on truck choice according to different countries.
3-Details quotation with spec.and reasonable price.
4-Welcome to visit our company before purchasing.
b. After purchasing:
1-Production pictures and video updated every week.
2-Customer can visit factory after truck completion or arrange third party inspection.
c. After-sales service:
1-English Operation Video
2-Free operation and technical train at factory but not include accommodation
3-Spare parts supplied at factory price whenever needed.
4-Engineers can be sent to your country and offer local engineering support and train.
