Foton Auman Rotation Fire Rescue Fire Pumper Truck 8tons 360 Degree
Foton Auman 8tons 360 Degree Rotation Fire Recuse Fire Pumper Truck
Equipment come with fire trucksChassis configuration:
1. 8110×2540×3600mm overall dimensions
2. Flat head, double-row, four doors, hydraulic tilt cab,2+4 seat, 4 Set of safety belt in the back seats. Manual window
3. YC6A240-33 240hp yuchai diesel engine
4. 8-speed forwarder with 2 Reverse
5. 5.5t front axle and 10t rear axle
6. Accessories: crew compartment, water tank (body), pump house, equipment compartments, water and foampump system, fire monitor, electronic sirens, lights and fire equipment
7. 360° rotation angle
8. Rated pressure of hydraulic system: 16Mpa
Upper body configuration:
1. Tank material: made of 5mm Q235 carbon steel material. Stainless steel material is optional.
2. Tank structure: welded structure, built-in vertical and horizontal anti-sway plates, and high-tech anti-corrosion treatment.
3. Pump room: equipped with new easy-to-pull aluminum alloy rolling shutters.
4. Equipment box: manufactured by the built-in tower connection technology of aluminum alloy profiles produced by the introduction of European technology.
4. Tank volume: 8,000 liters with 6000L (water); 2000L (foam)
Product parameters
| General | GVW/Curb weight | 169250kg/10250kg | |
| Rate of load | 8000kg | ||
| Overall size | 8110*2540*3600mm | ||
| cab | Cab | Flat head, double-row, four doors, hydraulic tilt cab,2+4 seat, 4 Set of safety belt in the back seats. Manual window | |
| Chassis | Siren control system | Yes | |
| Air conditioner | Yes | ||
| Drive type | 4x2 left hand drive | ||
| Fuel type: | Diesel | ||
| Engine manufacturer | YUCHAI | ||
| Power | 240hp | ||
| Displacement | 7255ml | ||
| Emission standard | Euro3 | ||
| Engine type | Inline six cylinder, four-stoke, water-cooled, turbocharged and intercooled, fuel direct injection pump. | ||
| Shift box | 8-speed Forwarder with 2 Reverse | ||
| Brake | Air brake | ||
| Wheelbase | 5750mm | ||
| Axle load | 5500kg/10000kg | ||
| Tire specification/No. | 11R22.5/6+1 | ||
| Max speed | 85km/h | ||
| Paint color | Red paint | ||
| Special configuration | Water Tank capacity | 6000L Made in high-strong carbon steel with anti-corrosion | |
| Foam tank capacity | 2000L Made in high quality steel with anti-corrosion | ||
| Consist of crew compartment, water tank (body), pump house, equipment compartments, water and foampump system, fire monitor, electronic sirens, lights and fire equipment. | |||
| This truck is improved and refitted with chassis of Foton. It is equipped with foam spraying fire system. The spacious cabin is suitable for six crews. Its internal structure reasonable and compact its foam spraying fire system could be used signally or jointly |
|||
| Technical Data for monitor sky lifting function | |||
| Max. Working Height | 12m(22m,25m,28m can be chose) | Outrigger Span | 2350mm |
| Max. Working Radius | 6.5m | Rotation Angle | 360° |
| Max Luffing Angle of Boom | 85° | Rated Pressure Of Hydraulic System | 16Mpa |
| Max Luffing Angle of Forearm | 155° | Max Oil Flow Of Hydraulic System | 30L/min |
| Safety Performance | · On and off interlock device | ||
| · Turntable indication device | |||
| · Boom and forearm interlock device | |||
| · Rotation limit device | |||
| · System does not work after power failure | |||
| · Soft leg alarm function | |||
| · Boom and forearm Angle Mechanical limit device | |||

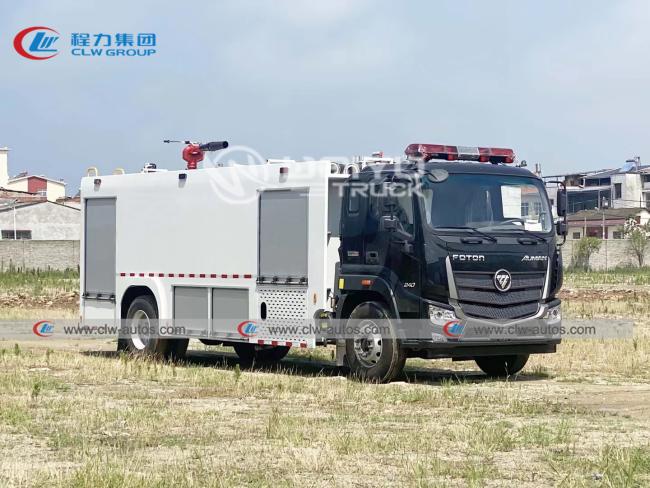

Reference photos
Fire trucks are widely used in factory, terminal, oil&gas depot to insure emergency fire cases.
Equipment come with fire trucks
Production Procedure
a. Before purchasing:
1-Quick reply on customers' inquiry;
2-Professional suggestion on truck choice according to different countries.
3-Details quotation with spec.and reasonable price.
4-Welcome to visit our company before purchasing.
b. After purchasing:
1-Production pictures and video updated every week.
2-Customer can visit factory after truck completion or arrange third party inspection.
c. After-sales service:
1-English Operation Video
2-Free operation and technical train at factory but not include accommodation
3-Spare parts supplied at factory price whenever needed.
4-Engineers can be sent to your country and offer local engineering support and train.
