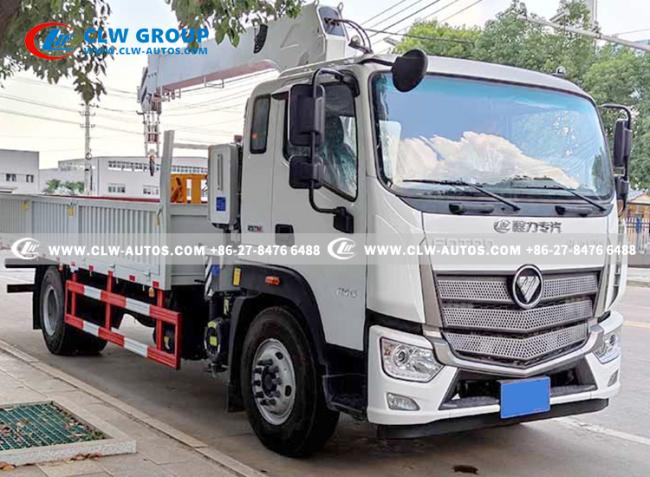

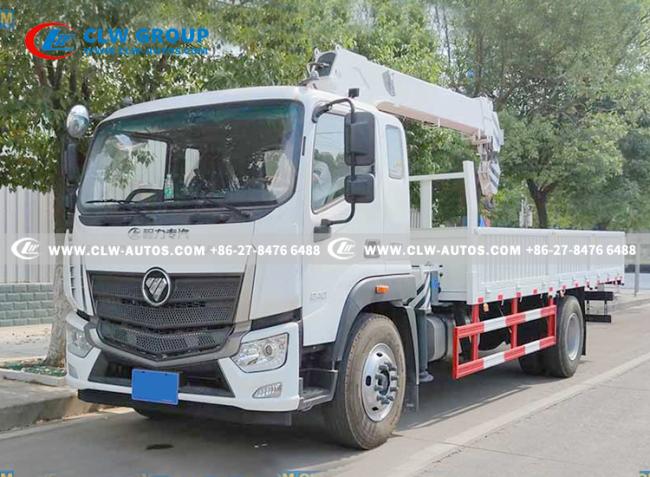

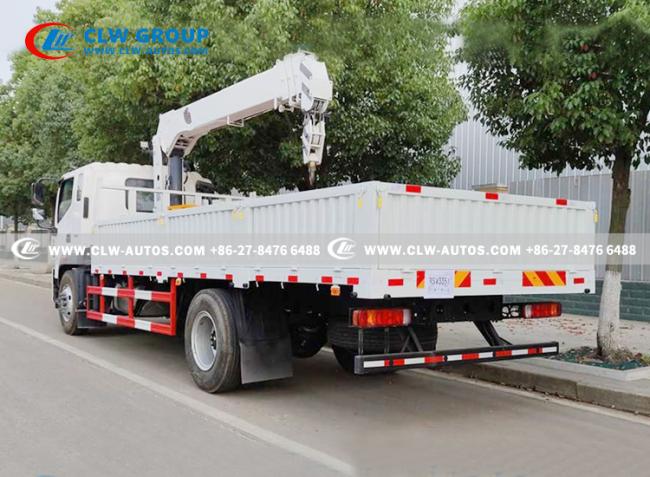

8T 8Tons Maximum Lifting Capacity Foton Single Axle Boom Truck With 45FT Main Boom
Foton Single Axle 8T 8Tons Maximum Lifting Capacity Boom Truck With 45FT Main Boom
Application range:
Landscaping, power construction, high-speed rail, wind power bridges, plant relocation, material transportation, equipment relocation, road rescue etc.
Product advantages:
1. Using lightweight design to improve the truck's greater carrying capacity, and save fuel, improves transportation capacity, and has a higher annual investment recovery rate
2. Using hydraulic winch technology, higher efficiency, more convenient maintenance, and more economical to complete the same work.
3. Unique 25% safe overload capacity design to make the hoisting safer and the work scope larger.
4. Importing international advanced equipment such as CNC plasma flame cutting machine, automatic welding production line, parameterized computer design center etc.
| General Technical Parameters | ||||
| Overall Dimension | 8905*2460*2820(mm) | |||
| Gross Vehicle Weight | 17995kg | |||
| Curb Weight | 12000kg | |||
| Chassis Specification | ||||
| Chassis Parameters | Chassis Brand | Foton Auman | ||
| Cabin | Left Hand Driving, Remote front door lock, with A/C | |||
| Engine | Model | 6 Cylinders | ||
| Power | 241HP | |||
| Emission standard | EURO3 | |||
| Displacement | 7255ml | |||
| Fuel type | Diesel | |||
| Gearbox | 8 Forward & 2 Reverse Gear | |||
| Front and Rear Axle load | 5.5T/10T | |||
| Wheel base | 5150(mm) | |||
| Brake System | Air Brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 11R22.5, 6 Pieces with 1 Spare Tire | |||
| Maximum speed | 90(km/h) | |||
| Superstructure | ||||
| Flatbed | Flatbed dimensions | 6050*2450*550(mm) | ||
| Working System | Crane | Brand | Chinese Famous Brand: Changxing SQ8.0A4 | |
| Boom Type | Straight arm | |||
| Max lifting weight | 8,000(kg) | |||
| Max lifting height | 15.6(m) | |||
| Max working radius | 13.6(m) | |||
| Rotation angle | 360 degree full rotation | |||
Working theory:
The straight arm truck crane is installed between the cab and the carriage. When it is working, the power is taken from the gearbox in the cab to drive the hydraulic pump to rotate. Provide high-pressure oil to each element, so as to realize the movement of the straight arm crane in various directions on the truck-mounted crane.
The slewing supporting used by the truck-mounted crane has the advantages of stable rotation and low friction, etc. It is equipped with hydraulic cooling system , which ensures the safety and reliability of the crane.
The whole truck is fully controlled by hydraulic, with large working range. It can 360 degrees full hydraulic full rotation.
It adopts new type of H-type outrigger, which can adapt to slope and irregular site operations.
The main components such as boom and outrigger are all high-strength and high-quality.
Hydraulic valve locks are internationalized brand, and other accessories are all domestic well-known brands, which are safer and more reliable.
Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
FAQ
Q1: What kinds of truck mounted crane I can order from your company?
A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 120tons, we will give our procurement suggestion to our client as per their requirements.
Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.
Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane, we all adopts CLW brand crane if request lifting capacity is above 30tons,
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
