2L-15 Steam Rated Valves , Automatic Steam Control Valve 1/8" 1/4" 3/8" 1/2"
Price:
Negotiable
MOQ:
>=1 Sets
Delivery Time:
Negotiable
Brand:
AFK
Product Description
2L-15 Steam Rated Valves , Automatic Steam Control Valve 1/8" 1/4" 3/8" 1/2"

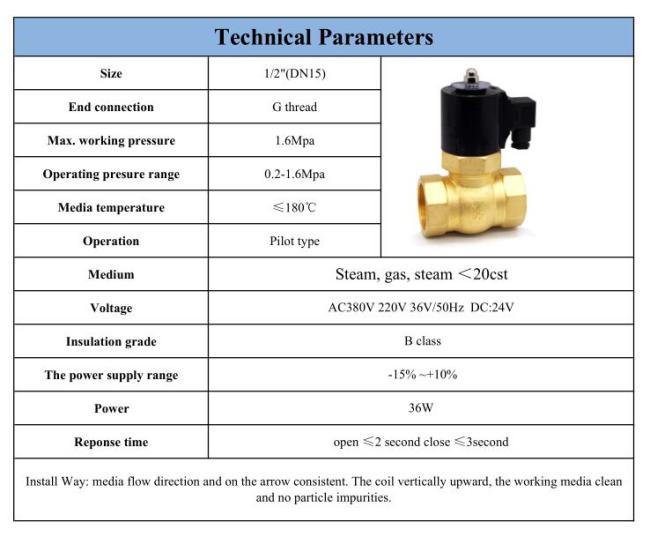

1.Model: 2L-15
2.Size: 1/2 inch
3.Thread: G
4.Operation: Pilot type
5.Operating pressure range: 0.2-1.6Mpa
6.Insulation grade: B class
7.Power: 26W
8.Material: Brass
9.Medium: Liquid gas steam <20 cst
10.Response time: Open≤2 second ≤3 second
11.Voltage: AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V
|
DESIGN FEATURES
|
|
|
1. Pilot
|
|
|
2. Fit for Liquid gas steam
|
|
|
3. Normally closed.
|
|
|
4.Pipe size from 1/2' to 2' .
|
|
|
5. Service voltage : AC380V, 220V,110V,24V DC24,12V
|
|
|
6.Thread connector : G
|
|
|
7.Large flow.
|
|
|
8.Material: Brass
|
Characteristic
1.The top structure of automatic compensation sealing type greatly extend the service life of the valve.
2.Design of balance piston clearance greatly enhances the reliability of the valve at high temperature.
3.Install way: Media flow direction and on the arrow consistent.
The coil vertically upward, the working media clean and no particle impurities.
