26W 1-1/4" Steam Solenoid Valve 220v Ac Liqiud Gas Steam Media AC380V 220V 36V/50Hz

Normally Closed Brass 1-1/4" steam solenoid valve 220v ac Liqiud Gas Steam Media

Characteristic

1. The top structure of automatic compensation sealing type greatly extend the service life of the valve.

2. Design of balance piston clearance greatly enhances the reliability of the valve at high temperature.

3. Install way: Media flow direction and on the arrow consistent.

The coil vertically upward, the working media clean and no particle impurities.

Detail Information

Voltage: AC380V 220V 36V/50Hz DC:24V

Insulation grade: B class

The power supply range: -15% ~+10%

Power:26W

Reponse time: open ≤2 second close ≤3second

Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Model Number: 2L-32

Size: 1-1/4" (DN32)

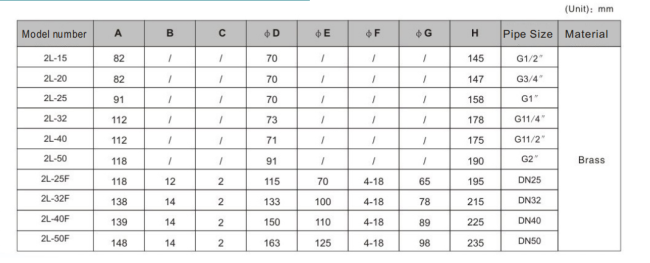

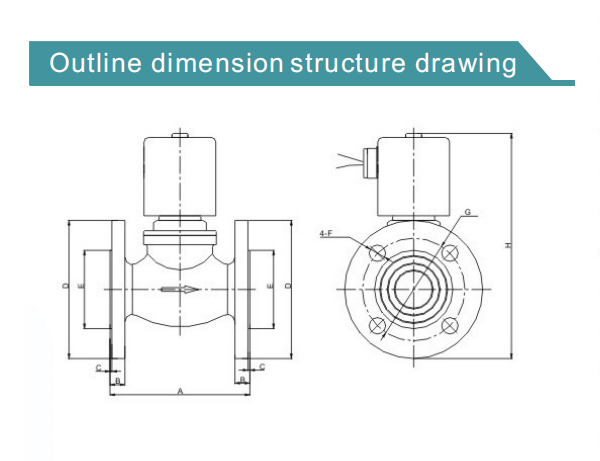

Detail Image
