R31 Stainless Steel Double Stage Pressure Regulator Diaphragm 316L ISO CE Approval
R31 Stainless Steel ISO CE Double Stage Pressure Regulator
Typical Application
Laboratory
Gas laser
Gas bus-bar
Petrochemical industry
lTesting equipment
Material
Body: 316L, Brass
lonnet: 316L, Brass
Diaphragm: 316L
Strainer: 316L(10μm)
Seat: PCTFE, PTFE, Vespel
Spring: 316L
Stem: 316L

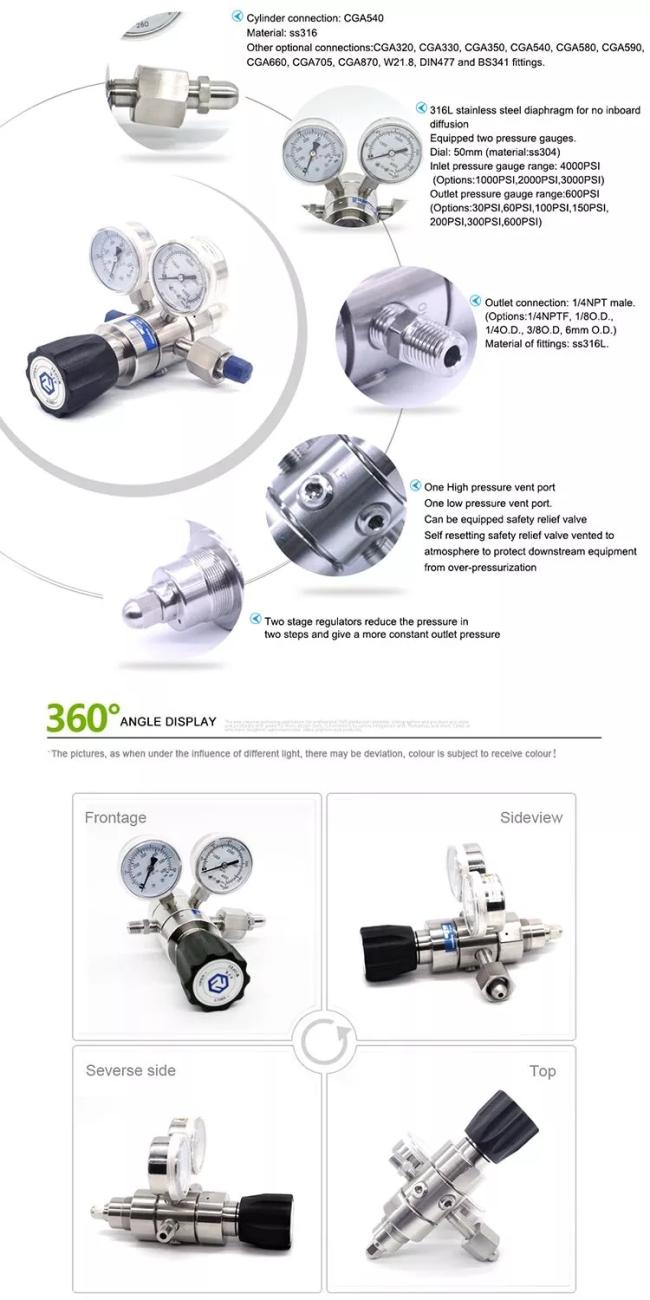

Detail Image
Ordering Sheet
|
Item |
Body Material |
Body Hole |
Inlet pressure |
Outlet pressure |
Gauge |
Inlet connection |
Outlet connection |
Optional |
|
R31 |
L:ss316L |
M |
D:3000PSI |
G:0-125psi |
G:Mpa |
00:1/4NPT F |
00:1/4"NPT F |
P:panel mount |
|
|
B:brass |
Q |
F:500PSI |
I:0-75psi |
P:psi/bar |
01:1/4"NPT M |
01:1/4"NPT M |
R:attached safety relief valve |
|
|
|
|
|
K:0-25psi |
W:no gauge |
23:CGA330 |
10:1/8O.D. |
N:attached needle valve |
|
|
|
|
|
L:0-15psi |
|
24:CGA350 |
11:1/4O.D. |
D:attached diaphragm valve |
|
|
|
|
|
Q:30"Hg Vac-30psig |
|
27:CGA580 |
12:3/8O.D. |
|
|
|
|
|
|
S:30"hg Vac-60psig |
|
28:CGA660 |
15:6mmO.D. |
|
|
|
|
|
|
T:30"hg Vac-100psi |
|
30:CGA590 |
16:8mmO.D. |
|
|
|
|
|
|
U:30"Hg Vac-200psi |
|
52:G5/8"-RH(F) |
74:M8*1-RH(M) |
|
|
|
|
|
|
|
|
63:W21.8-14H(F) |
|
|
|
|
|
|
|
|
|
64:W21.8-14LH(F) |
|
|
|
|
|
|
|
|
|
|
|
|
Once you send the inquiry, pls send order code e.g.:R31-L-M-D-G-P-00-00-P. Or pls send us following information so that we select select model:
1. Media (sevice as)? co2 or?
2. atual inlet pressure and outlet pressure?
3. Flow rate?
4. Inlet connection and out connection?
5. Material or ss316?
6. Quantity?
