16mm Port AC220V Stainless Steel Solenoid Valve 2W-10B With Timer

Price Negotiable

Price: Negotiable

MOQ: 1~10

Delivery Time: 1WEEK

Brand: AFK

Product Description

Product Features

Stainless steel piston, sensitive action, long service life of 100W times; autocratic coil is not easy to burn; zero leakage; a wide range of applicable.

Working Principle	Economy
A: The normally closed type: when the coil is energized, the main spool by medium pressure valve closed coil is de-energized, open. B: The normally open type: when the coil is energized, the valve is closed; the coil is cut off, and the main valve core is opened by the medium pressure differential force.	There are a lot of solenoid valve can be generic,but in the foundation to meet the above three points should be the most economical product.
Reliability
Solenoid valve is divided into normal open and normal close,general selection of normal close,power on is open . power off is close ,but when the open time is very and close time is very short ,should select normal open . Life test,the factory belongs to the type test .there is no professional standard for solenoid valve in our country ,S0 please be caution when use solenoid valve manufactures. Action is very short an high frequencies is generally used direct-acting,in large caliber optional fast.

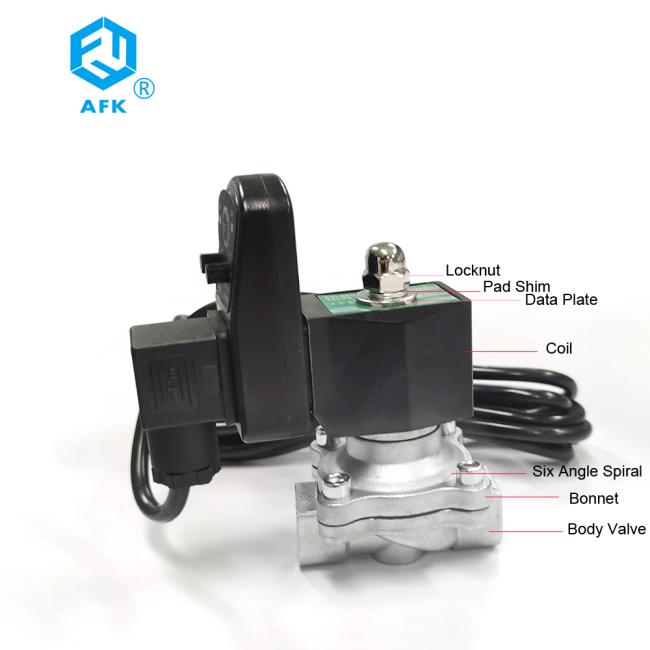

Structure

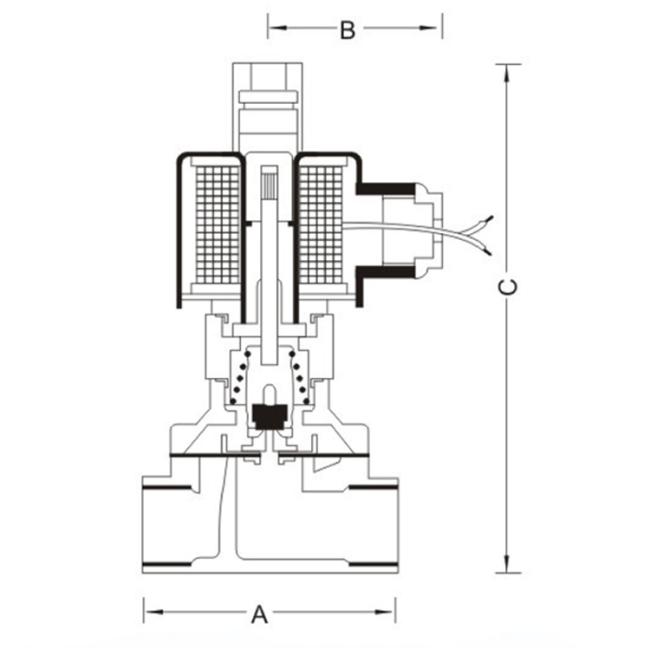

Structure Parameters

Model NO.	2W-1 60-10B	2W-160-15B	2W-200-20B	2W-250-25B	2W-320-32B	2W-400-40B	2W-500-50B
Pipe Size	3/8”	1/2”	3/4"	1”	1 1/4"	11/2"	2”
orifice size	16mm	16mm	20mm	25mm	32mm	40mm	50mm .
CV value	4.8	4.8	7.6	12	24	29	48
fluid	Air water oil,the neutral gasliquid
service voltage	AC380V AC220V AC110V AC24V DC24V DC12V allow 士10%
operating	direct acting			type	Normally Closed
Body Material	stainless steel			viscosity	Below 20CST
working pressure	water,air :0~ 10kgf/cm2 oil:0~7kgf/cm2
Material of seal	standard: below 80Cfluid temperature use NBR, below 120Cuse EPDM. VITON resistance to weak acid and weak base or below 150C

2W	160	10	B	H	AC220V
2/2 way direct- acting solenoid valve	Orifice size	port size	Material : stainless steel	Blank:NBR H:High te mperature	Standard voltage DC: 24V ECT
