Bently Nevada 330703-000-080-10-02-00 3300 XL 11 mm Proximity Probes
Product: Bently Nevada 330703-000-080-10-02-00 3300 XL 11 mm Proximity Probes 330703-00-80-10-02-00 in stock now
Description
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:
Axial (thrust) position measurements
Ramp differential expansion measurements on steam turbines
Rod position or rod drop measurements on reciprocating compressors
Tachometer and zero speed measurements l Phase reference (Keyphasor) signals
The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm and 14 mm Transducer Systems. When upgrading from the 7200-series system to the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11 mm components. In addition, the monitoring system must be updated. If using a 3500 Monitoring System, an updated version of the configuration software that lists the 3300 XL 11 mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification.
Datasheet:
Recommended Products
| 330703-00-80-10-02-00 | 330703-000-040-90-02-CN |
| 330709-000-070-10-02-00 | 330703-000-040-10-02-05 |
| 330709-00-060-10-02-05 | 330705-02-18-10-02-05 |
| 330706-005-46-10-02-00 | 330703-000-040-10-02-05 |
| 330707-00-25-10-12-00 | 330704-00-050-10-01-05 |
| 330876-02-10-00-00 | 330910-05-09-10-01-CN |
| 330171-00-40-10-02-00 | 330171-00-26-10-02-00 |
| 330851-02-000-056-90-00-05 | 109548-01 |

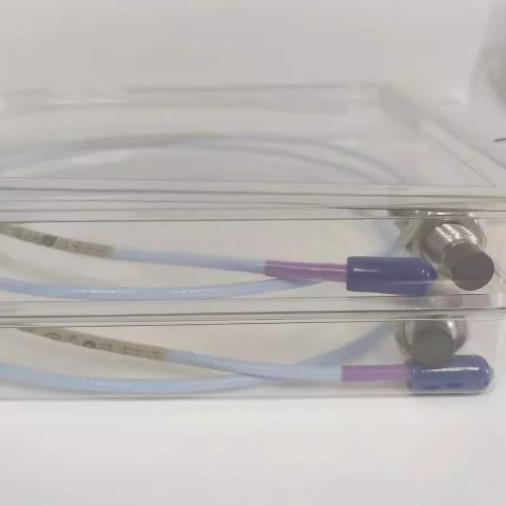

Photos
