50M3/H Water Treatment System / Pure Water Filter 50T/H With Blue Fiberglass For Drinking
50M3/H Water Treatment System / Pure Water Filter 50T/H With Blue Fiberglass For Drinking
Professional water treatment equipment supplier
1.Product Description
RO reverse osmosis is relying on the reverse osmosis membrane under enough pressure, make solution by reverse osmosis membrane solvents in pure water, so as to achieve the goal of removing salt.The pore size of RO reverse osmosis membrane is only nanoscale. Under a certain pressure, H2O molecules can go through the RO membrane, while the inorganic salts, heavy metal ions, organic matter, colloid, bacteria, viruses, and other impurities in the raw water can not pass RO membrane. Thus pure water and concentrated water are separated.
2.Product Details
Application: mineral water, direct drinking water, beverage&food,win.,ect
Water outlet: Conductivity <10us.cm 25℃(support customize)
Production Capacity: 50m³ per hour
Raw water quality:TDS less then 20000ppm
3. Features
| (1). Occupy little space, easy to operate, wide application range; |
| (2). operation cost is low, acid and alkali consumption is low, no secondary pollution; |
| (3). Reverse osmosis desalting rate ≧ 99%, machine desalting rate ≧ 97%, 100% of organic and bacteria can be removed; |
| (4). Finished water under good electronic conductivity, one stage ≦10u s/cm, two stage around 2~3u s/cm, based on raw water ≦ 600 u s/cm; |
| (5). High operation automation degree. It is unattended. The machine will automatically stop in case of no water. Timed flushing of front filtering materials by automatic controller. Automatic flushing of reverse osmosis film by Integrated circuit system. Online display of raw water and pure water electronic conductivity; |
| (6). Main parts use import brands, some parts use domestic well-known brands. |
4. Benefits of Reverse Osmosis (RO) Systems
RO system requires very less energy for its working.
It requires very low maintenance.
The RO system uses an automated technique called cross-flow to clean its clogged membrane.
RO system, when used in water filters, eliminates 98% of the impurities from tap water.
The water produced by RO technology, when supplied to a gas turbine, improves operating efficiency, and increases output by more than 10%.
RO systems are cost-effective, and their price is continually decreasing.
RO systems do not make use of harmful chemicals, hence are used in many power plants.
6. Photo Show
This is a project in Saudi Arabia, this country water mostly using well/ bolehole/ underground as raw/ feed water, but such water is with high salty, we called brackish water, TDS between 3000-20000mg/L, so it can drink directly, and need to be treated.
We provide foreign installation services for big machine, small machine provide 24hours online technology guide. As below is the instalation trip share with my friends:

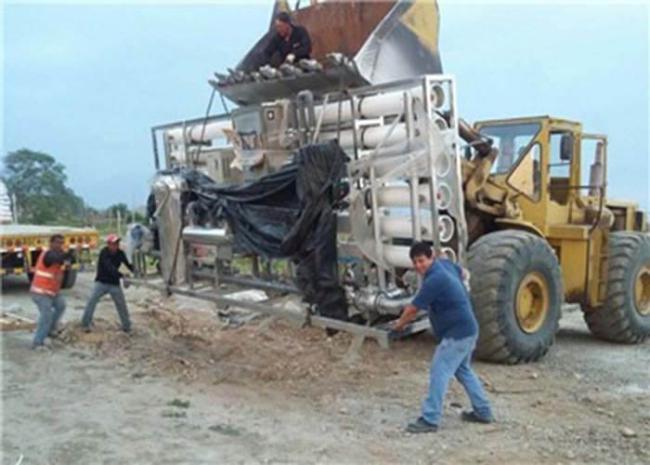

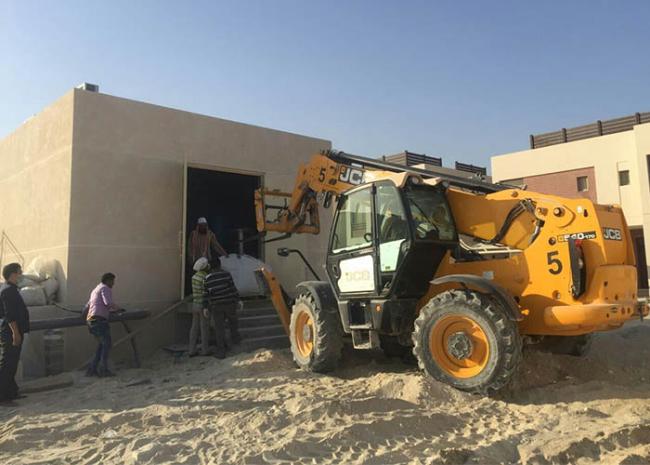

a. when goods arrived Saudi Arabia^^

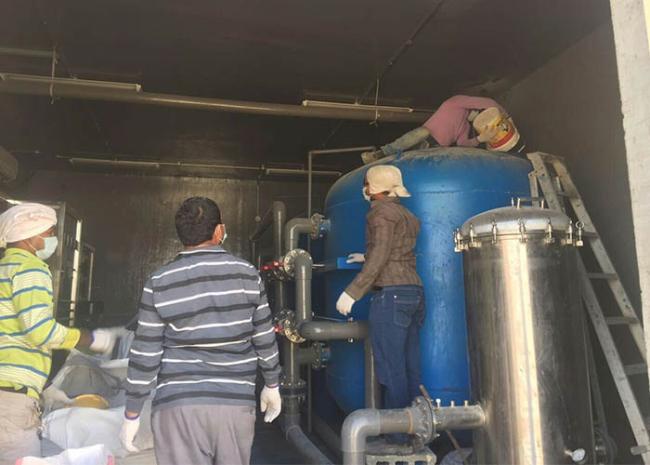

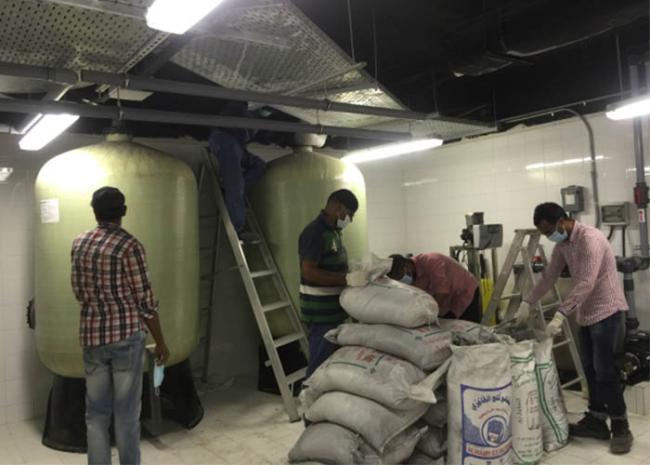

b. Quartz sand and activated carbon filling into the filter

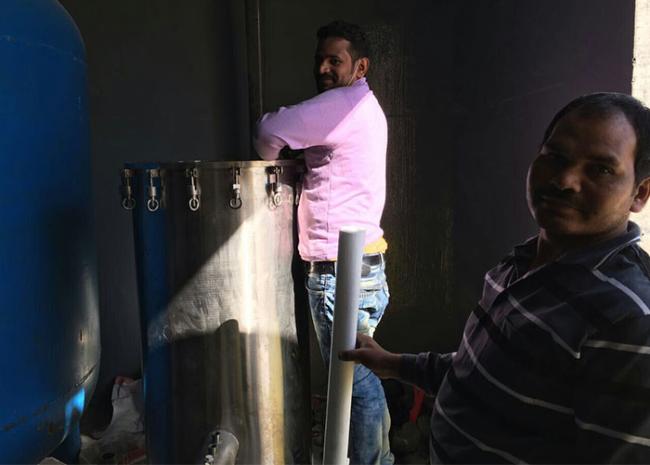

c. Filter cartridge filling into the security filter

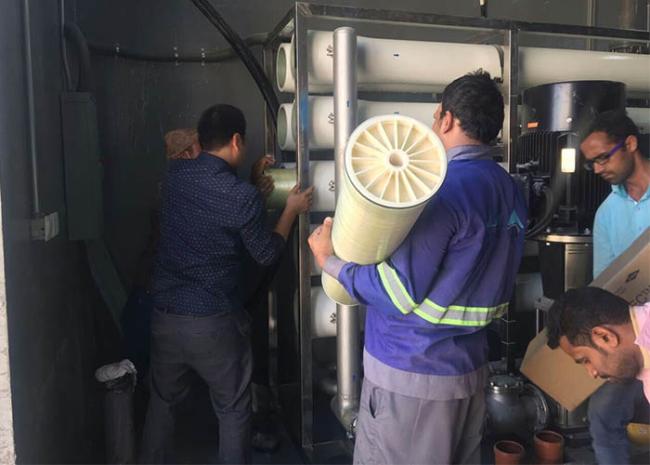

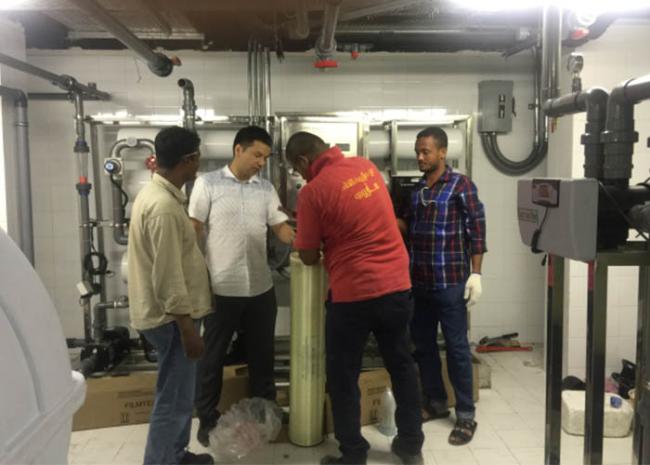

d. Filling RO membrane into the housing

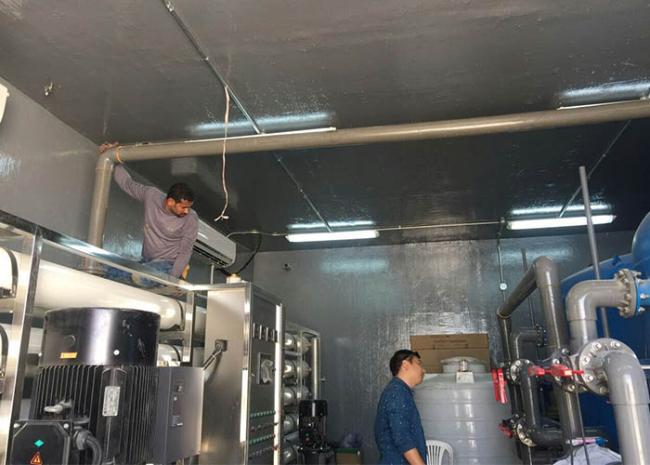

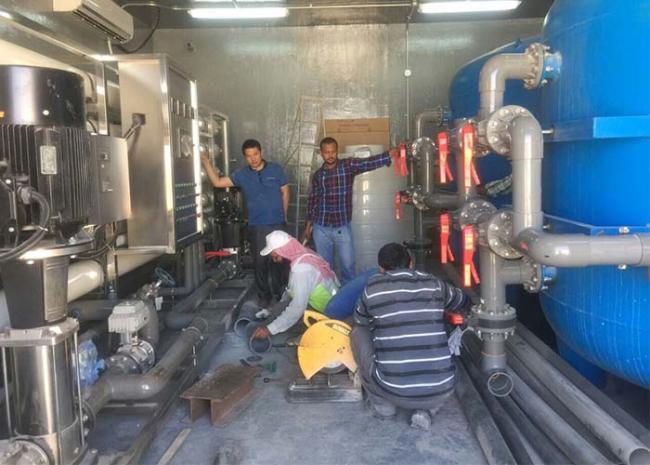

e. Pipe connecting

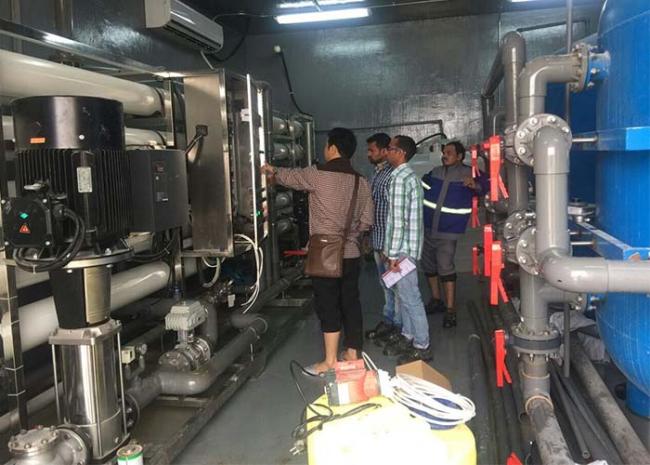

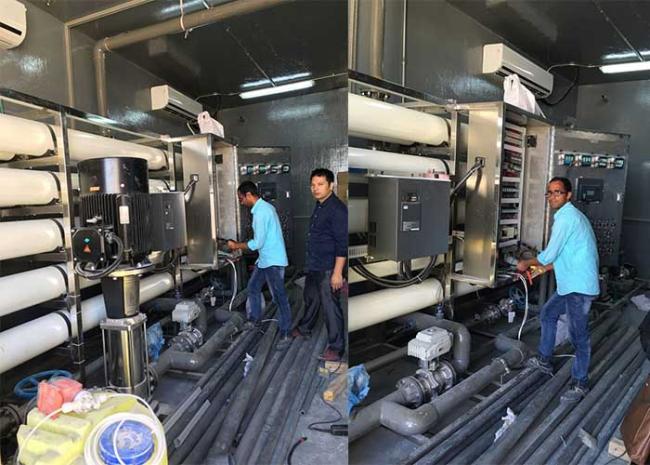

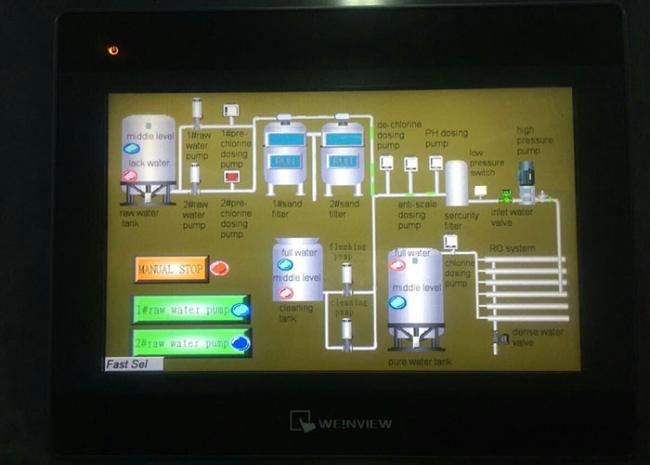

f. Electrical and PLC test

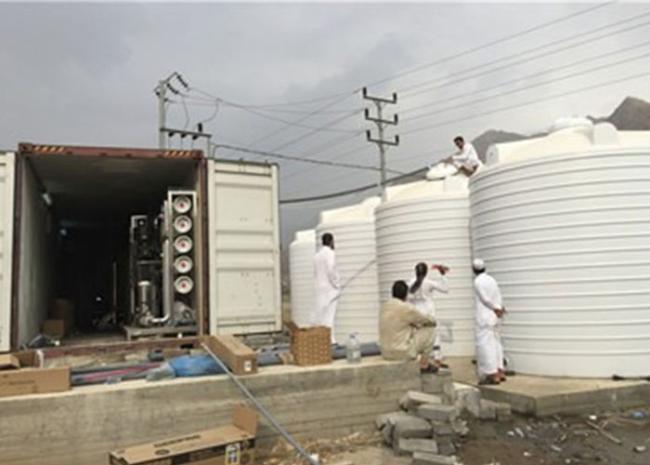

g. Connecting with the raw water tank and pure water wank

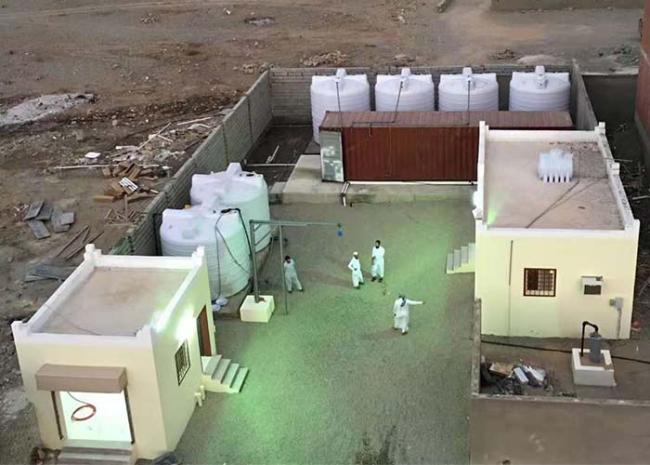

h. Our machine is all here^^

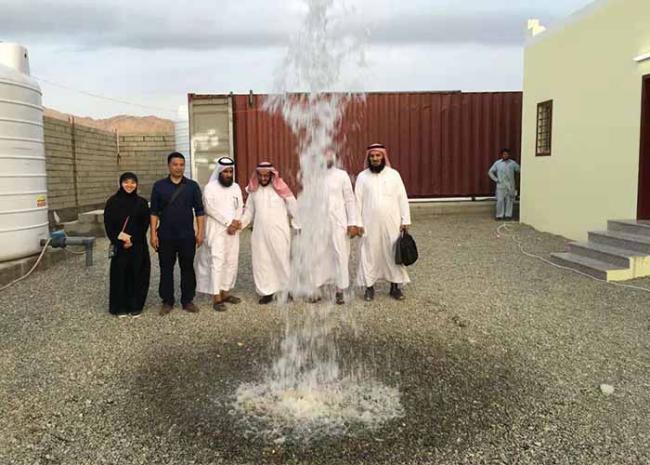

i. Finally water test
* For different size and different water source please contact with us. Customized design is availbale.
