Industrial Water Filter 1500LPH RO Water Treatment System For Paint / Bolier
1.Product Description
Our main product is RO system water purifier machine what we can do is to help changing such as seawater, brackish water,underground water and tap water atc...into domestic water, irrigation, direct drinking or bottle drinking(pure/mineral/alkaline water), industrial water: boiler water, hospital usages, beverage usages atc...
Work process:
| The RO water system is adopt advanced technology , the RO water output rate is 1.5M3/HR. |
|
The quartz sand filter can remove the suspend solid and improve the outlet water turbidity. |
| The activated carbon filters will remove color, odor, chlorine from the raw water. |
|
After these two filters , the water will be through into the security filter which can remove the smaller suspended solids .Then water flow into RO system part cause by the boosting of high pressure pump. |
|
The inlet water reach working pressure of the RO system part , then transport into to the pressure vessel which with RO membrane module .The water will be separated by the RO membrane and become two water current, the one is outlet pure water , the other one is dense water. |
|
The pure water is transport to pure storage tank and the dense water is discharged to gutter after the adjustment of dense water valve and measurement of the measure meter. |
2. Product Details

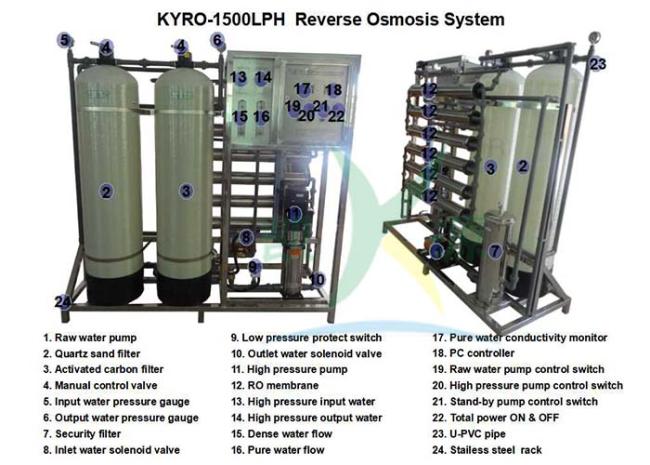

KYRO-1500LPH RO Water Treatment System:
1. Capacity: 1500 Liters per hour
2. Rated power: 3.5KW/H
3. Desalting rate:>=97%
4. Water recovery rate: 50-75%
5. Voltage: 110V - 415V, 50Hz or 60Hz, single phase or 3phase
3. Product Processing
Process: raw water tank → raw water pump → quartz sand filter → activated carbon filter → water softener / chemical dosing system (optional) → security filter → high pressure pump → ro system → pure water tank → UV sterilizer (ozone generator) → precision filter → water supply point
4. Application
Feed water(source water / raw water):
City water, river water, lake water, underground water(borehole water , well water), brackish water, sea water atc...
Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding

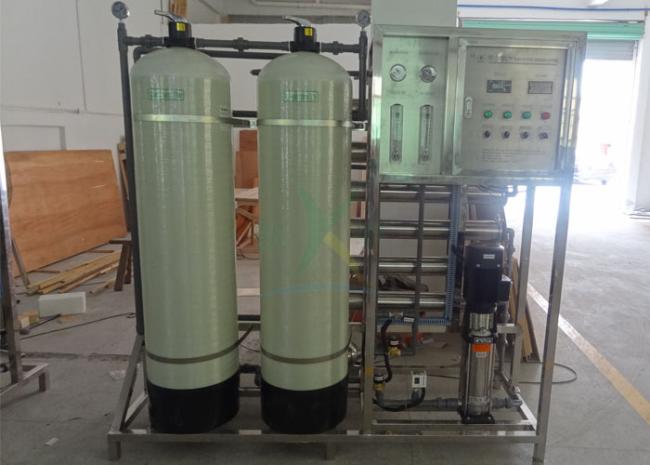

5. Pictures show
Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
