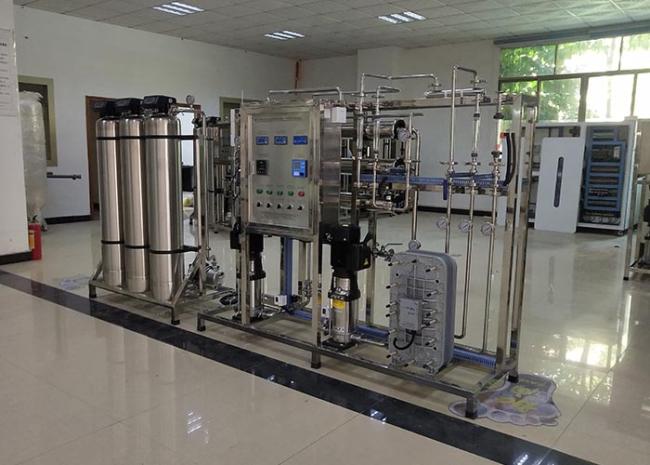

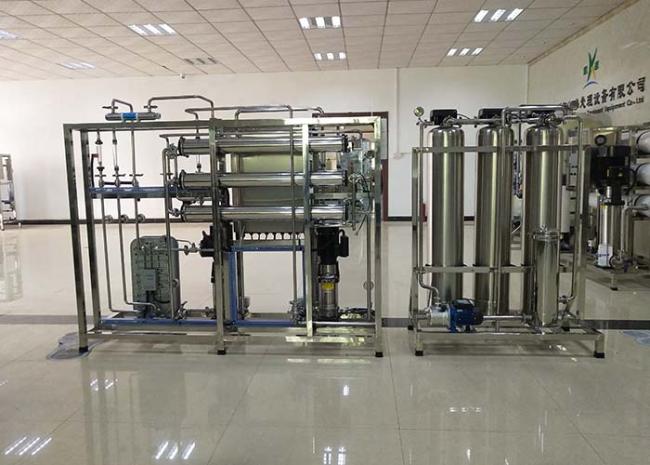

250LPH 2 Stage RO EDI System For Medical Ultrapure Water Treatment Machine
250LPH Two Stage RO EDI System For Medical Ultrapure Water Treatment Machine
RO(Reverse Osmosis), the basic working principle is : using of a special high pressure
pump, increasing pressure to raw water, then force raw water penetrating through reverse
osmosis membrane under the pressure. Only water molecules and solvent less than microns
can pass through the RO membrane.
EDI (Electrodeionization) is a revolutionary water treatment technology ,it is a membrane separation desalination technology that skillfully combined the electrodialysis technology and ion exchange technology together ,which is high-tech , green and environmental protection technology. EDI plant has very high requests to raw water, usually we use double stage RO system production water as its raw water.
Application
| a. Medical production,industrial pharmacy use |
| b. Cosmetics |
| c. Recycling water system |
| d. Chemical, electroplate industrial etc |
| e. Microelectronic, power, and biological project |
| f. Chemical Lab |
| g. Other electronic standard water |
Features
| This system occupy little space, easy to operate, wide application range. |
| Reverse osmosis desalting rate ≥99%, machine desalting rate ≥97%. 98% of organic matters, colloids and bacteria can be removed. |

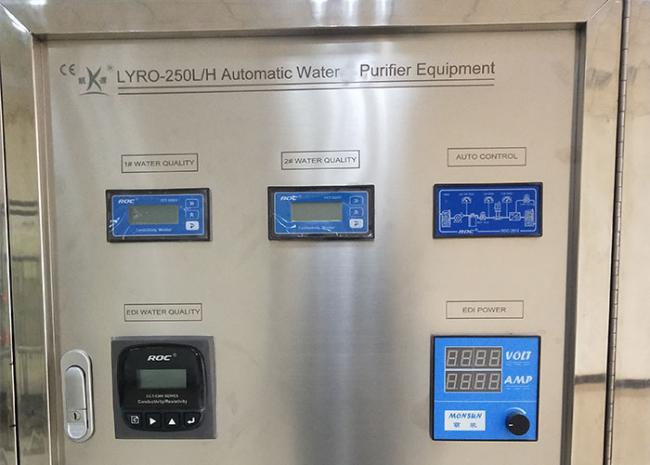

| Finished water under good electric conductivity, 1st stage ≤10μs/cm, 2nd stage around 2-3μs/cm, EDI≤0.2μS/cm(based on raw water≤300μs/cm). |
Processing: SS304 raw water tank-raw water pump-multimedia filter-active carbon filter-softener filter-precision filter-high pressure pump-1st reverse osmosis system -PH dosing -high pressure pump-2nd reverse osmosis -(2nd RO water tank)-EDI precision filter- EDI device-pure water tank-heat exchanger - UV lamp -outlet
Quartz sand filter: fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc.
Activated carbon filter: fill activated carbon inside, to remove color, odor, residual chlorine and organics substances.
Chemical dosing system/ Water softener: add antiscalant(buyer supply)/add cation resin inside, absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water.
PH adjusting system: to adjust the PH data
Security filter: fill PP filter cartridge inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
RO membrane: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
EDI membrane: ultrapure water, output conductivity less than 0.2uS/cm
UV sterilizer/Ozone generator: for killing bacterial in water, be safe for drinking.
CIP system: its help to cleaning the RO membrane, so that it can be have long life span^^
Tag: ultrapure water equipment, pure and clear water filter system, ultra pure water filter
