Portable 1500GPD RO Seawater Desalination System Water Filter Machine 2000 To 5000 liters Per Day
Small Portable 2000 to 5000liters per day 1500GPD Ro Seawater System Desalination Machine of Water Filter Machines
1. Seawater Desalination Technology Description
Sea water is high salty water(TDS>=350000ppm), which make it cannot be directly used for our daily life. And with the development of water treatment technology, Nowadays, there are 2 methods widely adopted to sea water desalination, reverse osmosis method and distillation method. With the development of reverse osmosis membrane technology, reverse osmosis method is more popular in sea water desalination system to remove more than 98.5% salt from the seawater and make WHO drinkable water, which is more energy-saving, have high desalination and recovery rate, easy operation, and the can use in any area.
Our sea water desalination system base on the below factors and have the below advantages;The reverse osmosis technology will be affected by the following factor, PH,temperature,water hardness,turbidity and chemical material. Thus the pre-treatment is very important for sea water desalination. Our pre-treatment includes, high precision sand filter and security to remove the particle and algae, dosing system to adjust the PH, which will provide the clear water (mainly contain salt and ions) to ro parts).The below are more details for the system.
2.How to get the suitable Ro system?
Please send the following details to this supplier.
1.What's the capacity for the RO system you need? (we have experience from 500lph to 180000lph)
2.The treated water application

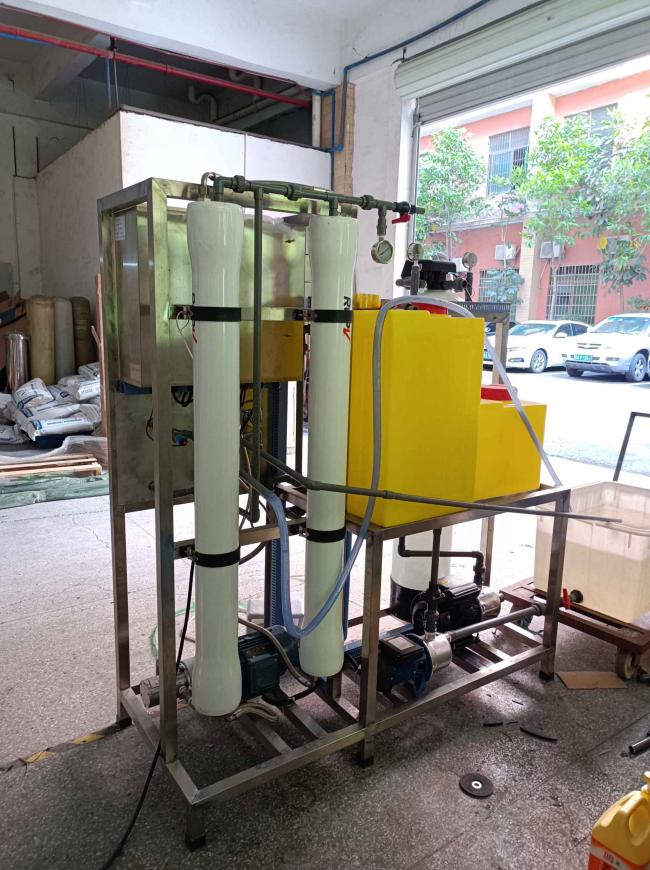

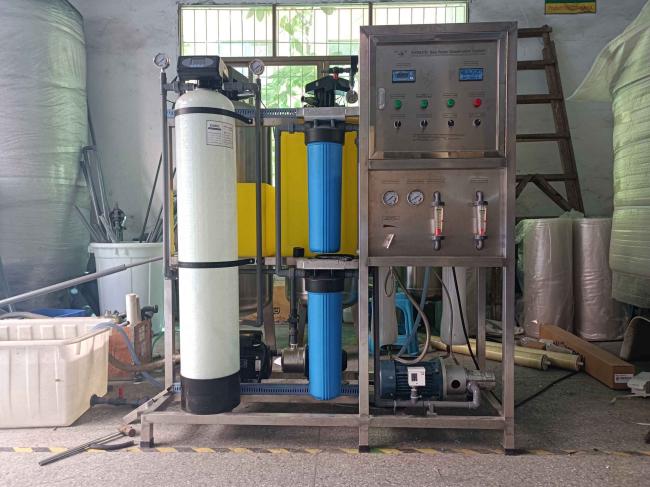

3.2000L/D and 5000L/Dseawater reverse osmosissystem specification and photos.
| Item | Specification |
| 1.Electricity Supply | 220v-450v, 50hz/60hz,3 phases Total power:2.75KW-----Can be customized |
| 2.Membranes Brand | USA DUPONT, CHINA VONTRON, JAPANESE TORAY |
| 3.Pump Brand | CNP or European brands |
| 4.Motor Brand | CNP or SIEMENS |
| 5.Control | PC or SIEMENS PLC program control |
| 6.Desalination rate | More than 98.5% |
| 7.Recovery rate | at less 65% |
| 8.Material | FRP(Fiberglass) with U-PVC, Stainless steel 316 |
| 9.Raw water TDS | 30000ppm |
| 10.Output water | WHO Drinking water standard |
| 11.Customized logo | We can do engraving cursor for our client's brand logo on machine |
|

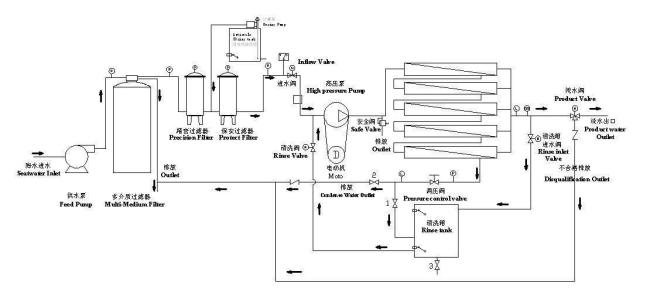

The whole system process: Raw water tank(buyer offer)-Raw water pump-sand filter-carbon filter-water softener(resin filter)-micro filter-high pressure pump-Ro system-EDI system |
|
| Machine Advantagee: |
| 1).System can produce water continuously, PLC program controlled, Simple in installation and operation |
| 2). RO system be chosen the import USA DOW membrane. |
| 3). Tank level control, automatic stop when the raw water tank without water or pure water tank is full |
| 4). RO system flushes RO membranes when it starts to work so that membrane fouling is reduced. |
| 5).CNP high pressure pumps or Denmark Grundofos high pressure pumps are adopted. |
| 6). Product water quality is continuously monitored by conductivity meter. |
| Consumbles Replacement Time: | |
| 1.Quartz sand/actiavted carbon should be replaced every about 15 month | |
| 2.PP filter cartridges should be replaced every about 1 to 3 months | |
|
3.Ro membranes should be replaced about every 1.2 to 1.5 years |
We can do engraving cursor for our client's brand logo on machines

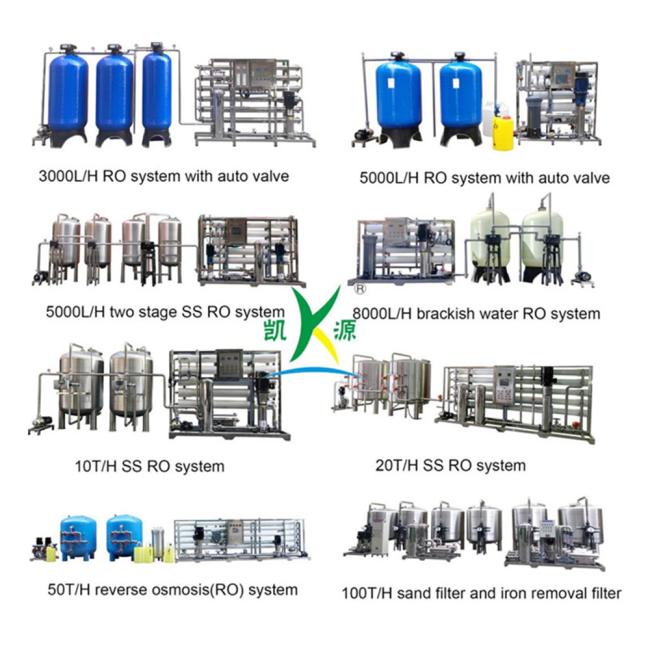

5.Our Installation Experience for our clients
6.Our Certificates--CE, ISO ECT.
7.Our Exhibition--In Shanghai, Canton,AUE
8.Why Choose Kai Yuan Water?
1.We have the strict machine test for every machine before shipping, to ensure every machine operate smoothly. 2.We have the most careful package for every machine with both film and wooden case to ensure every machine will be not destroyed during shipping.
3.We have long-time cooperative shipping company with the best shippping price and service. For some country, the shipping country can help custom clearance.
4.Working in water treatment since 2002, we have lots of experience of customerized product for clients(professional water treatment knowledge), exporting and installating abroad.
5.Our company got many CE,ISO,SGS certificates for the high quality product and the mature technology for reverse osmosis, so we can help our customers to change the water they have now to the water they want.
6.Serving so mang customers from all over the world and we treat every customers as our good friend, we will invite our customer to the factory for visiting.Our factory is open to every one who wants to buy/know about water treatment plant.
