high temperature flexible 20-26 Awg UL3140 Silicone Rubber Insulated tinned copper electrical Wire
flexible UL 3140 Silicone Rubber Insulated Wire tinned copper wire
specifications
| Retad voltage | 300V |
| Retad temperature | 150°C |
| Insulation | silicone rubber |
| Conductor | tinned copper wire |
| Standards | UL 758 |
| Application | home appliances/ leds/industrial machine |
| Size | awg20,22,24,26 |
| M/FT | 305/1000 |
| Color | white,black,red,brown,yellow,blue,green,transparent etc. |
product dimensions
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
| 26 | 1/0.4 | 0.4 | 1.6 | 3.6 | 143 | 305/1000 |
| 24 | 1/0.5 | 0.5 | 1.6 | 3.7 | 89.3 | 305/1000 |
| 22 | 1/0.65 | 0.65 | 1.6 | 3.85 | 56.4 | 305/1000 |
| 20 | 1/0.81 | 0.81 | 1.6 | 4.01 | 35.2 | 305/1000 |
Advantages of Silicone Insulated Wires
Following are some of the advantages of using silicone insulated wires for your application.
Excellent Performance in Adverse Environments:
These wires provide optimum performance in adverse
environments. They can withstand snow, humidity, ozone, rains, and harsh UV rays for years without disintegrating.
Wide Operating Temperature Ranges:
The wires can withstand a wide temperature range from –50 to +200 °C.
Also, advanced grades can withstand a temperature range from –90 to +300 °C.
Ideal for Daily Use:
These wires can easily withstand daily wear and tear as well as aging.
Excellent Chemical Resistance:
Silicone wires can resist various harsh chemical substances used in industries easily.
Exhibit Excellent Electrical Insulating Properties:
These wires exhibit excellent electrical insulating properties in various application conditions.
High Flexibility:
Silicone wires can withstand high flexing cycles in any industrial application than many other plastic wires.
Flame Retardant:
These wires exhibit high flame resistance, which makes them an ideal choice for various industrial applications.
our certificates

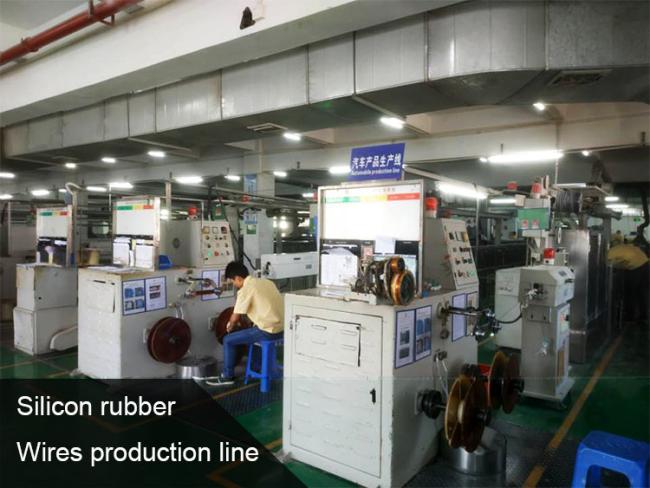

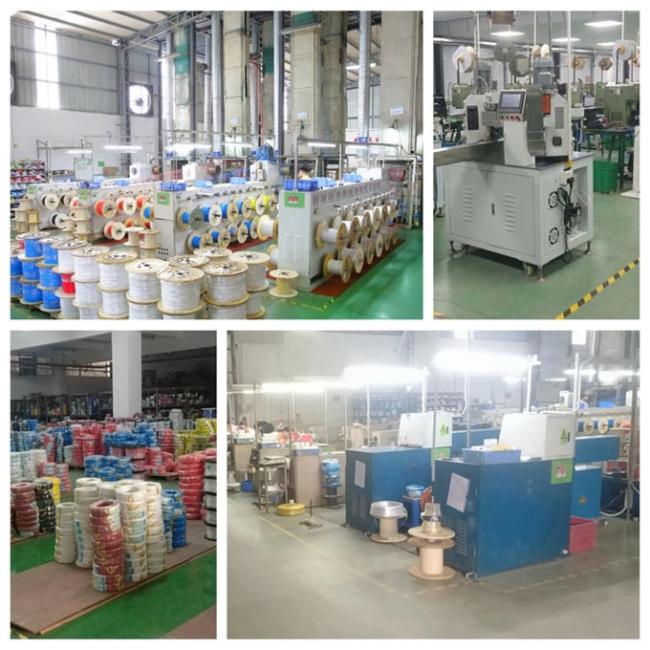

work shop
1. by express
2. by sea
LC, TT, Western Union, Money Gram and PayPal
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
Q:What about the lead time for mass production?
A:Honestly, it depends on the order quantity and the season you place the order.Usually, delivering time
is 7-10days, Generally speaking, we suggest that you start inquiry one months before the date you would
like to get the products at your country.
Q:What is your terms of delivery?
A:We usually accept FOB, CFR, CIF etc. You can choose the one which is the most
convenient or cost effective for you.
Q:What certification did your products pass?
A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
