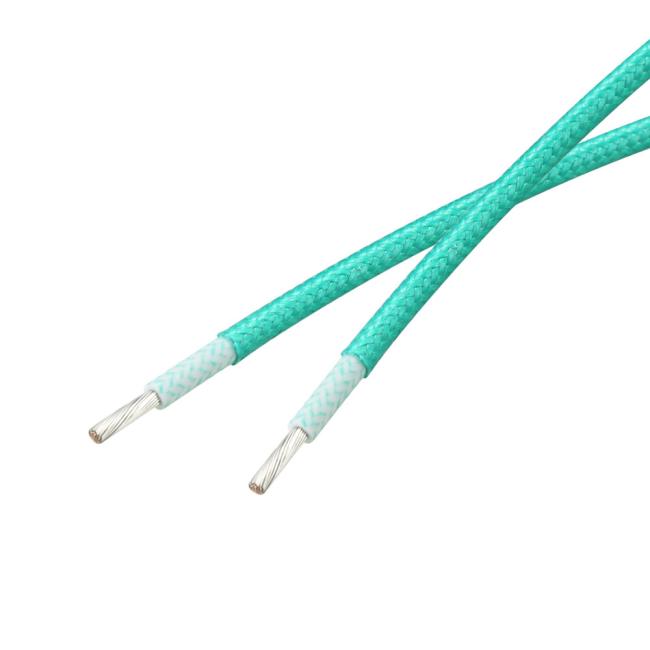

24awg UL3122 Silicone Rubber Insulation Cable Fiberglass Stranded
Price:
USD0.1-2/m
MOQ:
1000M
Delivery Time:
5-10 workdays
Brand:
Mysun
Product Description
UL3122 silicone rubber wire
- Flexibility: silicone rubber insulation with fiberglass braided sleeving
- Maximum conductor resistance: 24.4 ohm/km
- Resistant to oil, hot and cold, flexing
- Rated temperature: -50°C to +200°C
- Rated voltage: 300V
- Insulation potential strength: 2000 VAC/min
- Passes the FT2 flame test
- Available in 16AWG, 18 AWG, 20 AWG, and 22 AWG
| Conductor | Insulation | Max Cond resistance (ohms/m) |
Unit length (m)(F) |
|||||||||||
| 3KV | 6KV | 10KV | 20KV | 30KV | ||||||||||
| Size | Construction | Diameter | Nominal Thickness | Diameter | Nominal Thickness | Diameter | Nominal Thickness | Diameter | Nominal Thickness | Diameter | Nominal Thickness | Diameter | ||
| (AWG) | (NO./mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 28 | 7x0.12 | 0.37 | 0.50 | 1.37 | 0.70 | 1.77 | 1.00 | 2.37 | 1.30 | 2.97 | 1.70 | 3.77 | 239 | 610/2000 |
| 26 | 7x0.15 | 0.49 | 0.50 | 1.49 | 0.70 | 1.89 | 1.00 | 2.49 | 1.30 | 3.09 | 1.70 | 3.89 | 150 | 610/2000 |
| 24 | 14x0.14 | 0.60 | 0.50 | 1.60 | 0.70 | 2.00 | 1.00 | 2.60 | 1.30 | 3.20 | 1.70 | 4.00 | 94.2 | 610/2000 |
| 22 | 22x0.14 | 0.76 | 0.50 | 1.76 | 0.70 | 2.14 | 1.00 | 2.76 | 1.30 | 3.36 | 1.70 | 4.16 | 59.4 | 305/1000 |
| 20 | 32x0.14 | 0.91 | 0.50 | 1.91 | 0.70 | 2.31 | 1.00 | 2.91 | 1.30 | 3.50 | 1.70 | 4.31 | 36.7 | 305/1000 |
| 18 | 52x0.14 | 1.17 | 0.50 | 2.17 | 0.70 | 2.57 | 1.00 | 3.17 | 1.30 | 3.77 | 1.70 | 4.57 | 23.2 | 305/1000 |
| 16 | 52x0.18 | 1.50 | 0.50 | 2.50 | 0.70 | 2.90 | 1.00 | 3.50 | 1.30 | 4.10 | 1.70 | 4.90 | 14.6 | 305/1000 |
Service:
Shipment:
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
