High Voltage Flexible 20AWG 22AWG 24AWG 26AWG UL3141 Silicone Rubber Insulated Wire
high voltage flexible UL 3141 Silicone Rubber Insulated Wire tinned copper wire
specifications
| Retad voltage | 600V |
| Retad temperature | 150°C |
| Insulation | silicone rubber |
| Conductor | tinned copper wire |
| Standards | UL 758 |
| Application | home appliances/ leds/industrial machine |
| Size | awg20,22,24,26 |
| M/FT | 305/1000 |
| Color | white,black,red,brown,yellow,blue,green,transparent etc. |
product dimensions
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | (Ω/KM) | (M)(Ft) |
| 26 | 7/0.16 | 0.48 | 1.60 | 3.68 | 143 | 200/656 |
| 24 | 7/0.20 | 0.61 | 1.60 | 3.81 | 89.3 | 200/656 |
| 22 | 7/0.254 | 0.77 | 1.60 | 3.97 | 56.4 | 200/656 |
| 20 | 7/0.31 | 0.94 | 1.60 | 4.14 | 35.2 | 200/656 |
Industrial Applications that Use Silicone Insulated Wires
Silicone insulated wires are used for a variety of industrial applications due to the above mentioned advantageous properties.
The below mentioned industrial applications make the best use of these insulated wires.
Internal Wiring of Home Appliances and Industrial Applications:
Silicone insulated wires are ideal for flexible applications, and is used for internal wiring of industrial heating appliances,
hot-rolling mills, textile machines, industrial ovens, etc.
High Voltage Cable Assemblies:
Today, many cable assembly manufacturers prefer using silicone cables over regular cheap cable assemblies.
Additionally, these wires have a dielectric strength of 550vpm, high insulation resistance, and excellent dielectric
constant of 3-3.5. These characteristics make these wires good electrical insulators, and are ideal for high voltage
cable assemblies as well.
RoHS Compliant Applications:
As silicone rubber is a non-toxic substance, it is ideal for RoHS compliant a
pplications. This is also the reason why silicone insulated wires are used in various medical applications.
our company

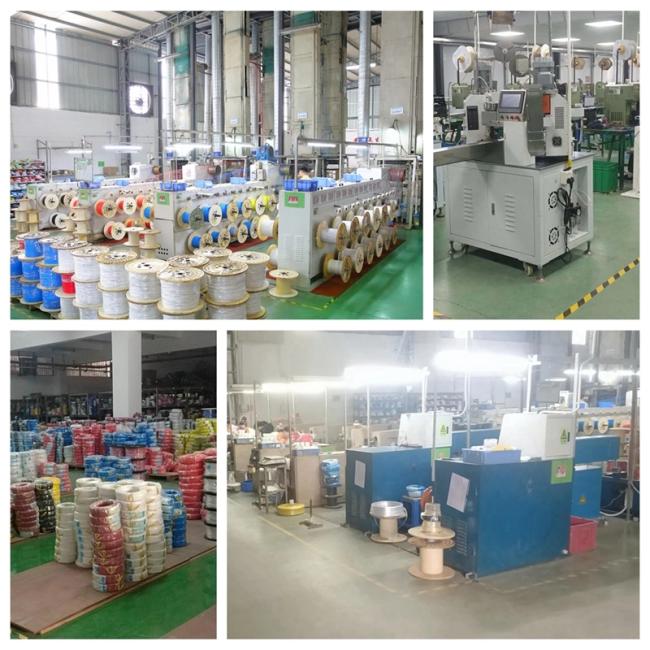

workshop
package
1. by express
2. by sea
LC, TT, Western Union, Money Gram and PayPal
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
