awm 22 Gauge flexible UL3212 Heat Resistant Silicone Rubber Insulated electrical Wire
Price:
Negotiable
MOQ:
5000 pcs
Delivery Time:
Negotiable
Brand:
MYSUN
Product Description
flexible UL 3212 Silicone Rubber Insulated Wire tinned copper wire
specifications
| Retad voltage | 600V |
| Retad temperature | 150°C |
| Insulation | silicone rubber |
| Conductor | tinned copper wire |
| Standards | UL 758 |
| Application | home appliances/ leds/industrial machine |
| Size | awg10-26 |
| M/FT | 305/1000 |
| Color | white,black,red,brown,yellow,blue,green,transparent etc. |
product dimensions
| Conductor | Insulation | Max.cond resistance (Ω/km) |
Unit Length (m)(Ft) |
|||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
||
| 26 | 7/0.16 | 0.48 | 1.15 | 2.38 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 2.51 | 89.3 | ||
| 22 | 7/0.254 | 0.77 | 2.67 | 56.4 | ||
| 20 | 7/0.31 | 0.94 | 2.84 | 35.2 | ||
| 18 | 7/0.39 | 1.19 | 3.09 | 22.2 | ||
| 16 | 7/0.16 | 0.48 | 2.38 | 143 | 305/1000 | |
| 14 | 7/0.20 | 0.61 | 2.51 | 89.3 | ||
| 12 | 7/0.254 | 0.77 | 2.67 | 56.4 | ||
| 10 | 7/0.31 | 0.94 | 2.84 | 35.2 | ||
Silicone rubber is known for its versatility, flexibility, and durability. This material is a stable, non-reactive,
synthetic elastomer that can be used in extreme environments involving temperatures ranging from -55°C to over 300°C.
Silicone rubber can be designed using different types of formulations of one or two polymers along with filler elements.
Hence, they can provide effective application solutions while reducing overall manufacturing costs.
applications:
Radiators
Steel mills
Electric motors
Hot rolling mills
Cooking surfaces
Heating apparatus
Industrial converters
Ovens and ventilators
Household appliances
Metallurgical facilities
Civil and industrial plants
Lighting (halogen lamps, etc.)
High voltage electrical cabins and circuits
Steel mills
Electric motors
Hot rolling mills
Cooking surfaces
Heating apparatus
Industrial converters
Ovens and ventilators
Household appliances
Metallurgical facilities
Civil and industrial plants
Lighting (halogen lamps, etc.)
High voltage electrical cabins and circuits
Application Benefits of Silicone Rubber Insulated Wire
Extreme applications can benefit by utilizing these types of wires.
The material has good insulating qualities, which does not change to a great extent when subjected to environmental stress.
They are nearly unaffected by extreme weather changes such as harsh sunlight and extreme cold.
The wires are extremely flexible, and provide a certain amount of resilience to compression in an application.
Silicon rubber insulated wires have a long service life, and can be used in multiple applications.
The wires are extremely flexible, and provide a certain amount of resilience to compression in an application.
Silicon rubber insulated wires have a long service life, and can be used in multiple applications.
Industrial Applications of Silicone Rubber Wire
The ease of manufacturing and shaping allows these wires to be used in a wide variety of applications
and industries, including:
- Automotive components
- Industrial electronic products
- Medical devices and implants
- Food and beverage industry
Silicone rubber insulated wires are the perfect solution to protect wires and
provide inimitable wire performance in extreme applications.
our company
certifaicates

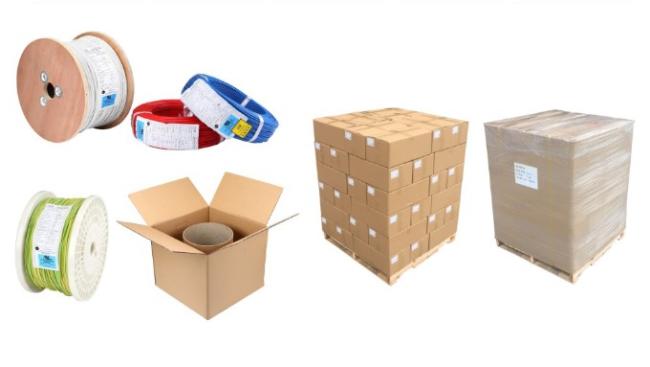

package
Service:
Shipment:
1. by express
2. by sea
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
