150 Celsius 300V Silicone Rubber Wire Insulated AWM3068 Construction 7/0.10mm
| Voltage: | 300V | Temperature: | 250C |
|---|---|---|---|
| Insulation: | Fiberglass | Conductor: | Nickel-plated Copper Wire Or Silver-plated Copper Wire |
| Color: | All Colors Are Available | Standard: | UL758 |
| Usage: | Home Application,LED Lamp, Oven,industrial Machine | Size: | 12-30awg |

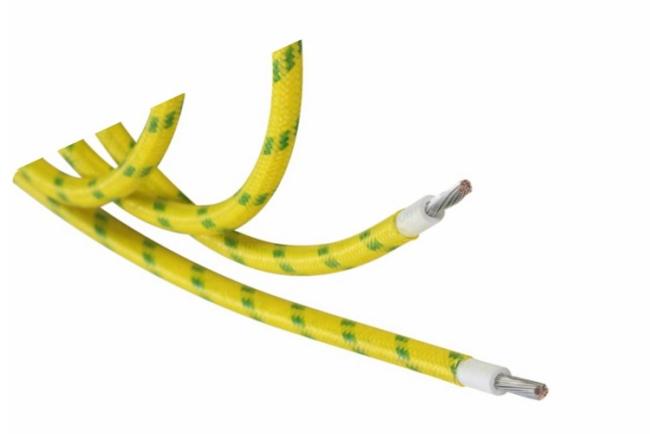

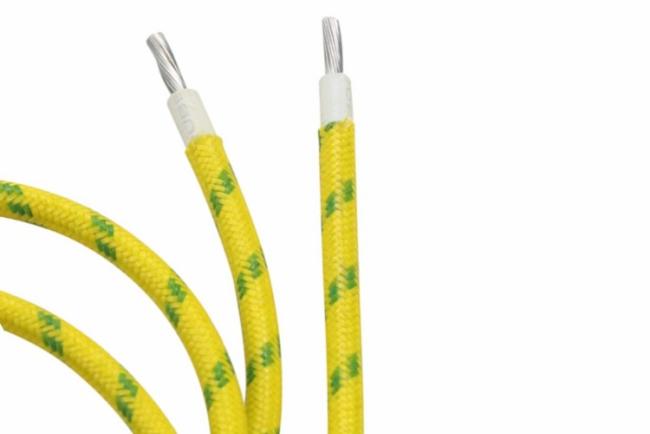

Silicone fiberglass wire UL3254 electrical wire
Specifications:
Nominal voltage: 300V
Temperature range: 250C
Standard: UL 758
Conductor: Nickel-plated copper wire or silver-plated copper wire
Insulation: Silicone Rubber
Insulation: Fiber Glass
size:12-30awg
color:all colors are available
package:305m/roll or customied
Product dimensions:
| Conductor | Insulation | Max.cond resistance (Ω/km) |
Unit Length (m)(Ft) |
|||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
||
| 30 | 7/0.10 | 0.30 | 0.93 | 2.16 | 361 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 2.22 | 227 | ||
| 26 | 7/0.16 | 0.48 | 2.34 | 143 | ||
| 24 | 7/0.20 | 0.61 | 2.46 | 89.3 | ||
| 22 | 7/0.254 | 0.77 | 2.62 | 56.4 | 305/1000 | |
| 20 | 7/0.30 | 0.92 | 2.79 | 35.2 | ||
| 18 | 7/0.39 | 1.19 | 3.03 | 22.2 | ||
| 16 | 7/0.49 | 1.49 | 3.33 | 14 | ||
| 14 | 41/0.254 | 1.87 | 3.75 | 8.78 | ||
| 12 | 19/0.47 | 2.36 | 4.22 | 5.53 | ||
advantage
this wire offers the following benefits, making it ideal for demanding industrial applications:
Flexible Temperature Range:
Silicone rubber insulated wire is ideal for applications where temperature varies frequently.
Flexible Stranding:
Flexible conductor stranding makes the wire suitable for application areas with cramped spaces.
Chemical and Oil Resistance:
Good resistance to oils, gasoline, and certain chemicals enhances the performance of this wire in extreme environments.
Enhanced Safety:
The halogen free silicone rubber insulation does not release fumes or gases when ignited.
This increases the safety of employees who work with electronic equipment.
