Heat Proof 200C 0.5sqmm UL3512 Flexible Insulated Wire
silicone insulation electrical wire flexible insulated wire UL3512
Silicone wire features:
Heat-proof electric cables using silicon rubber as an insulating material. The main uses are for home appliances, residential
facilities, office equipment, automotive electric appliances, etc., where its heat-resistance (180, 200 and 250 degrees
centigrade), excellent electric properties, and feasibility are needed. In addition, there are some wire lines that comply with
the UL/CSA of overseas-standard products and the Electrical Safety Law.
Cable dimensions:
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
| 0.50 | 20/0.18 | 0.95 | 0.78 | 2.51 | 40.1 | 305/1000 |
| 0.75 | 30/0.18 | 1.17 | 2.73 | 26.7 | ||
| 1.00 | 40/0.18 | 1.3 | 2.86 | 20 | ||
| 1.25 | 50/0.18 | 1.5 | 3.06 | 14.35 | ||
| 1.50 | 30/0.25 | 1.60 | 3.16 | 13.7 | ||
| 2.00 | 41/0.254 | 1.85 | 3.41 | 8.78 | ||
| 2.50 | 50/0.25 | 2.06 | 3.62 | 7.16 | ||
| 3.00 | 60/0.25 | 2.30 | 3.86 | 6.5 | ||
| 4.00 | 56/0.30 | 2.62 | 4.18 | 4.7 | ||

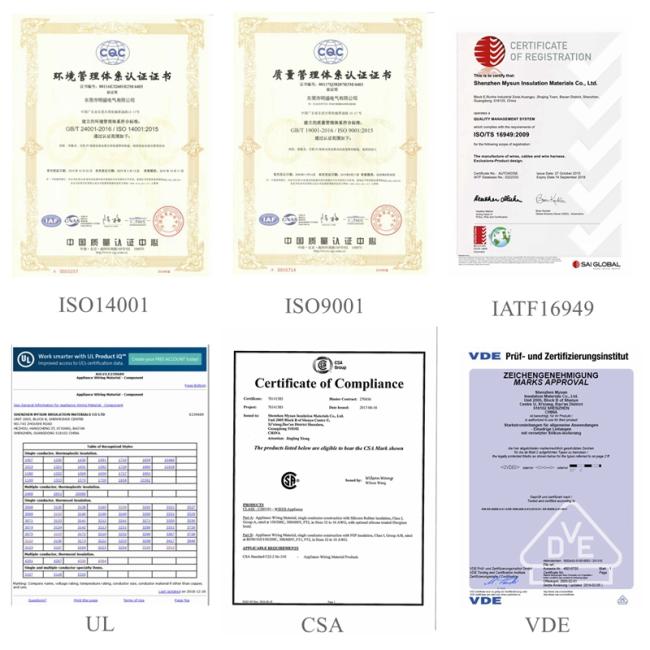

Certificate:

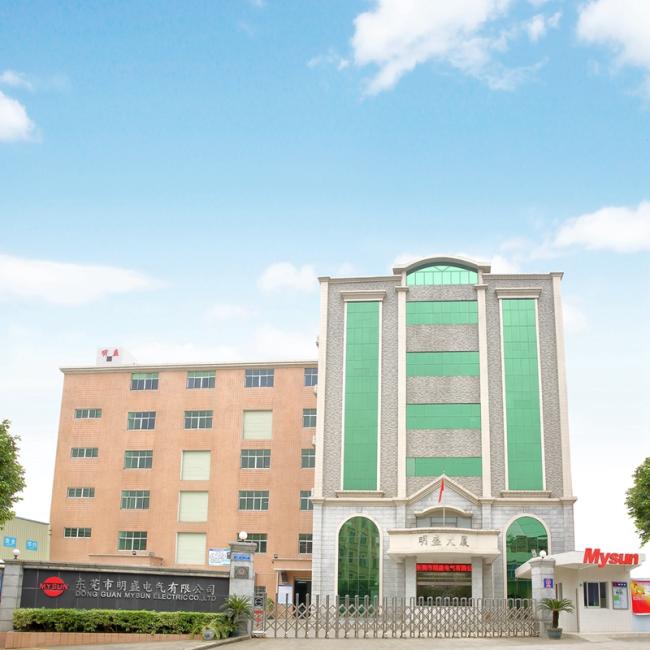

MYSUN factory:
Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds of UL, cUL, CSA, VDE, CCC, RoHS, REACH certified high temperature wire and cable. For home appliances, lighting, medical equipment, office facilities, industrial machine and motors & generators. The company has consistently in accordance with the ISO9001, ISO14001 international standard and IATF16949 auto certification.
Mysun lab:
Good equipment lays a firm foundation for good products.Mysun has full set of test equipments, such as flame test chamber, aging
test machine, grinding test machine, abrasion resistance test machine, low temperature winding machine, air ventilation climatic
test chamber, high voltage tester, printing hardness fastness tester, projector, high temperature furnace and so on.
Price term:
EXW, FOB, CIF
Payment terms:
LC, TT, Western Union and PayPal
Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
