18AWG Fiberglass Braided Tinned Copper Wire UL 3071 FT2 Flame Test
Price:
USD 0.1-2/M
MOQ:
1000meters
Delivery Time:
5-10 working days
Brand:
MYSUN
Product Description

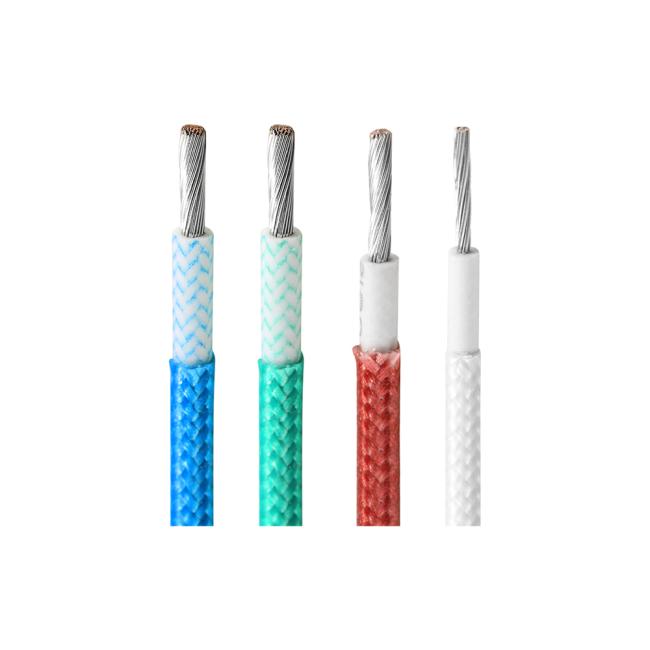

UL3071 silicone rubber wire
- Flexibility: silicone rubber insulation with fiberglass braided sleeving
- Maximum conductor resistance: 24.4 ohm/km
- Resistant to oil, hot and cold, flexing
- Rated temperature: -50°C to +200°C
- Rated voltage: 600 V
- Insulation potential strength: 2000 VAC/min
- Passes the FT2 flame test
- Available in 13AWG, 14AWG, 16AWG, and 18 AWG
Product demension:
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
| 18 | 7/0.39 | 1.19 | 0.93 | 3.05 | 22.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 3.35 | 14 | ||
| 14 | 41/0.254 | 1.87 | 3.73 | 8.78 | ||
| 13 | 50/0.254 | 2.07 | 3.93 | 6.97 | ||
