300v 200c UL1332 Tinned Copper FEP Insulated Cable 10-30AWG

Name: 300v 200c UL1332 Tinned Copper FEP Insulated Cable 10-30AWG
Brand: Shenzhen Mysun Insulation Materials Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 305 meters

Delivery Time: 7-15 working day

Brand: Mysun

Product Description

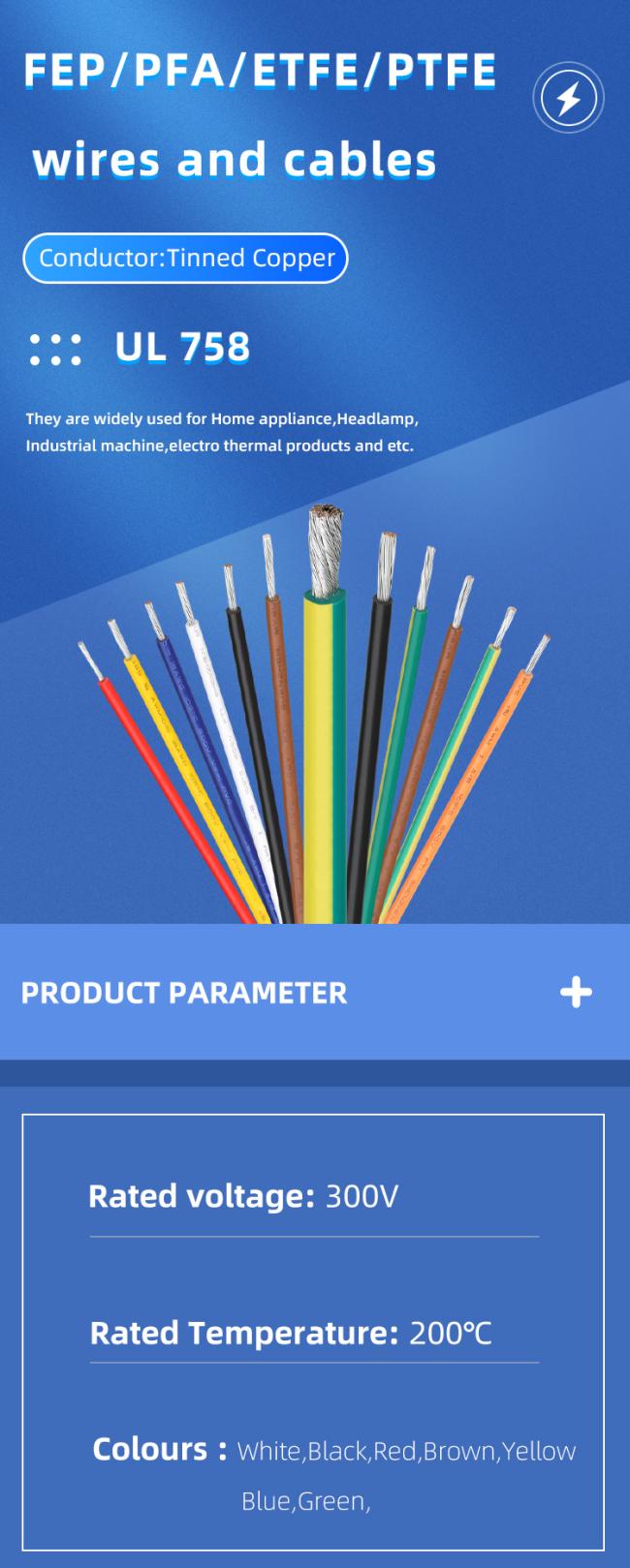

Specifications:

Nominal voltage:300V

Temperature range: 200℃

Standard: UL758

Insulation:FEB

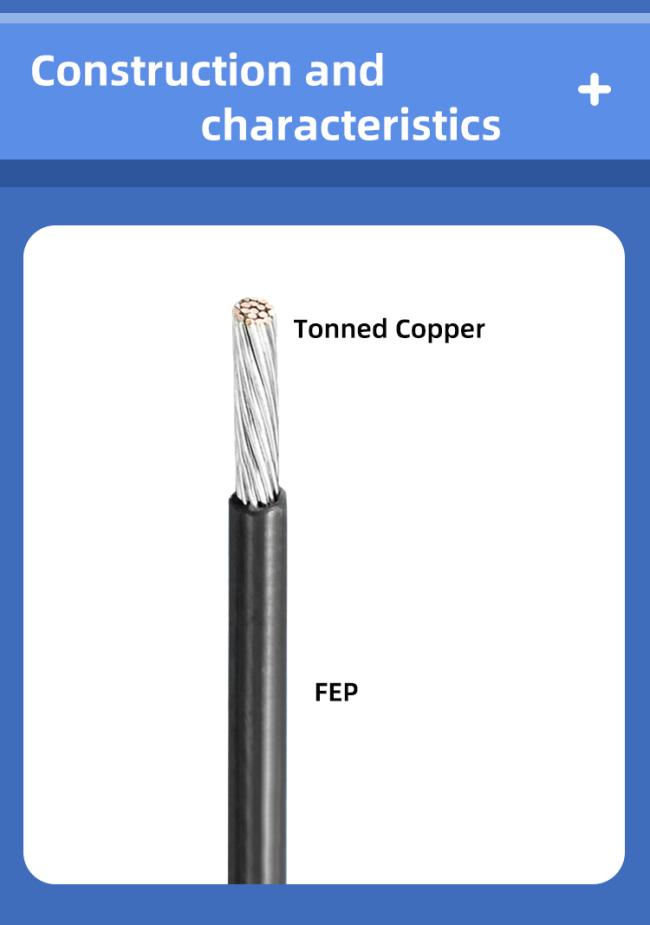

Conductor: Tinned Copper Wire

Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.

Product Parameter

Conductor			Insulation		Max Cond resistance (Ω/km)	Package (m or ft)
Conductor			Insulation
Size (AWG)	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)
30	7/0.1	0.3	0.305	0.91	381	610/2000
28	7/0.12	0.36	0.305	0.97	239	610/2000
26	19/0.1	0.48	0.305	1.11	150	610/2000
24	19/0.12	0.61	0.305	1.21	94.2	610/2000
22	19/0.15	0.77	0.33	1.41	59.4	305/1000
20	19/0.19	0.94	0.33	1.59	36.7	305/1000
18	19/0.235	1.19	0.33	1.83	23.2	305/1000
16	19/0.3	1.49	0.33	2.16	14.6	305/1000
14	19/0.37	1.85	0.33	2.51	8.96	305/1000
12	19/0.47	2.35	0.33	3.01	5.64	305/1000
10	19/0.61	3.05	0.33	3.71	3.55	305/1000

Applications:

* Widely used in lighting, household appliances, , lamps.

* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.

Our Product

Product Description

Package & Delivery

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days

Company Introduction

Mysun Dongguan factory
Employee: 183
Area: 18000m²
Daily capacity: 2000,000m above
