VDE8207 26AWG 600v 200c Conductor Insulated Copper Wire For Heater

Price Negotiable

Price: Negotiable

MOQ: 305 meters

Delivery Time: 7-15 working day

Brand: Mysun

Product Description

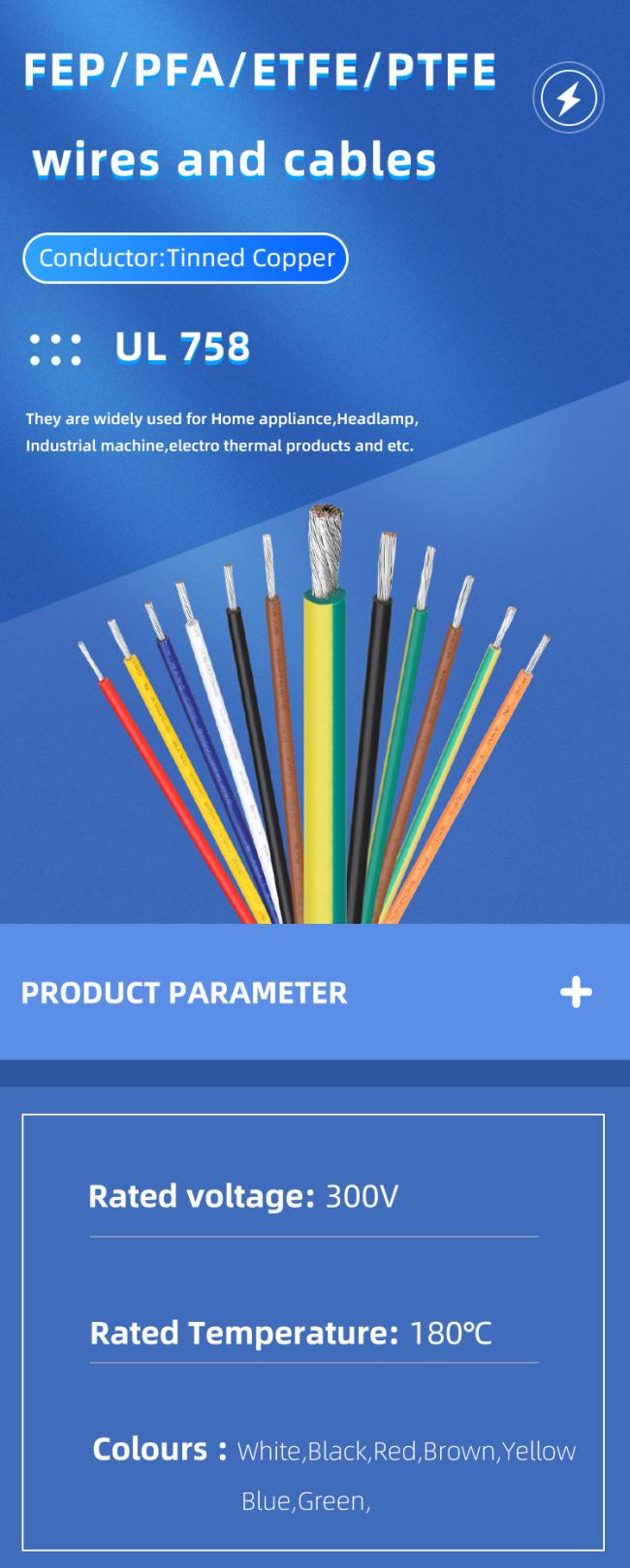

Specifications:

Nominal voltage:300V

Temperature range: 180℃

Standard: UL758

Insulation:FEB

Conductor: Tinned Copper Wire

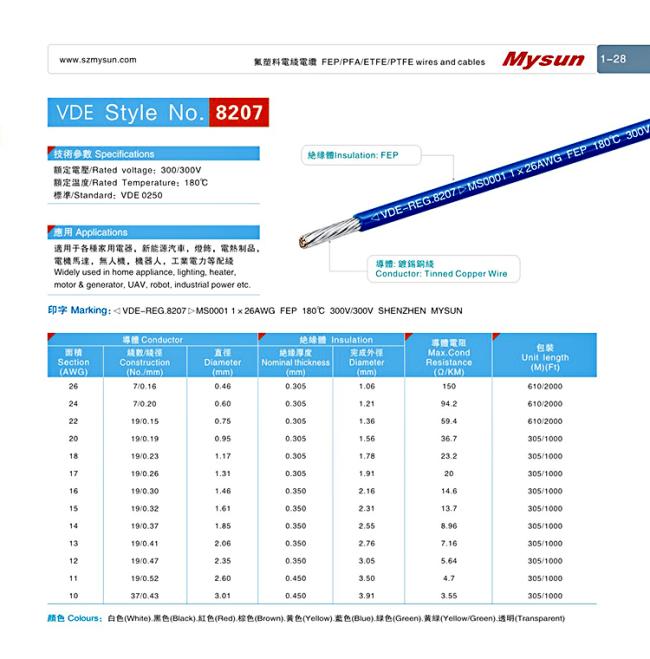

Product Parameter

CONDUCTOR			INSULATION		MAX.COND RESISTANCE (Ω/KM)	UNIT LENGTH (M)(FT)
SIZE (AWG)	CONSTRUCTION (NO./mm)	DIAMETER (mm)	NOMINAL THICKNESS (mm)	DIAMETER (mm)	MAX.COND RESISTANCE (Ω/KM)	UNIT LENGTH (M)(FT)
0.12	7/0.15	0.46	0.305	1.06	150.15	610(2000)
0.2	7/0.20	0.6	0.305	1.21	89.3	610(2000)
0.3	19/0.15	0.75	0.305	1.36	59.78	610(2000)
0.5	19/0.19	0.95	0.305	1.56	40.1	305(1000)
0.75	19/0.23	1.17	0.305	1.78	26.7	305(1000)
1	19/0.26	1.31	0.305	1.91	20	305(1000)
1.25	19/0.29	1.46	0.35	2.16	14.35	305(1000)
1.5	19/0.32	1.61	0.35	2.31	13.7	305(1000)
2	19/0.37	1.85	0.350	2.55	8.78	305(1000)
2.5	19/0.41	2.06	0.35	2.76	7.16	305(1000)
3	19/0.47	2.35	0.35	3.05	6.5	305(1000)
4	19/0.52	2.6	0.45	3.5	4.7	305(1000)
5	37/0.43	3.01	0.45	3.91	3.76	305(1000)

Applications:

Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.

Our Product

Product Description

Package & Delivery

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days

* Widely used in lighting, household appliances, , lamps.

* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.

Company Introduction

Mysun Dongguan factory
Employee: 183
Area: 18000m²
Daily capacity: 2000,000m above
