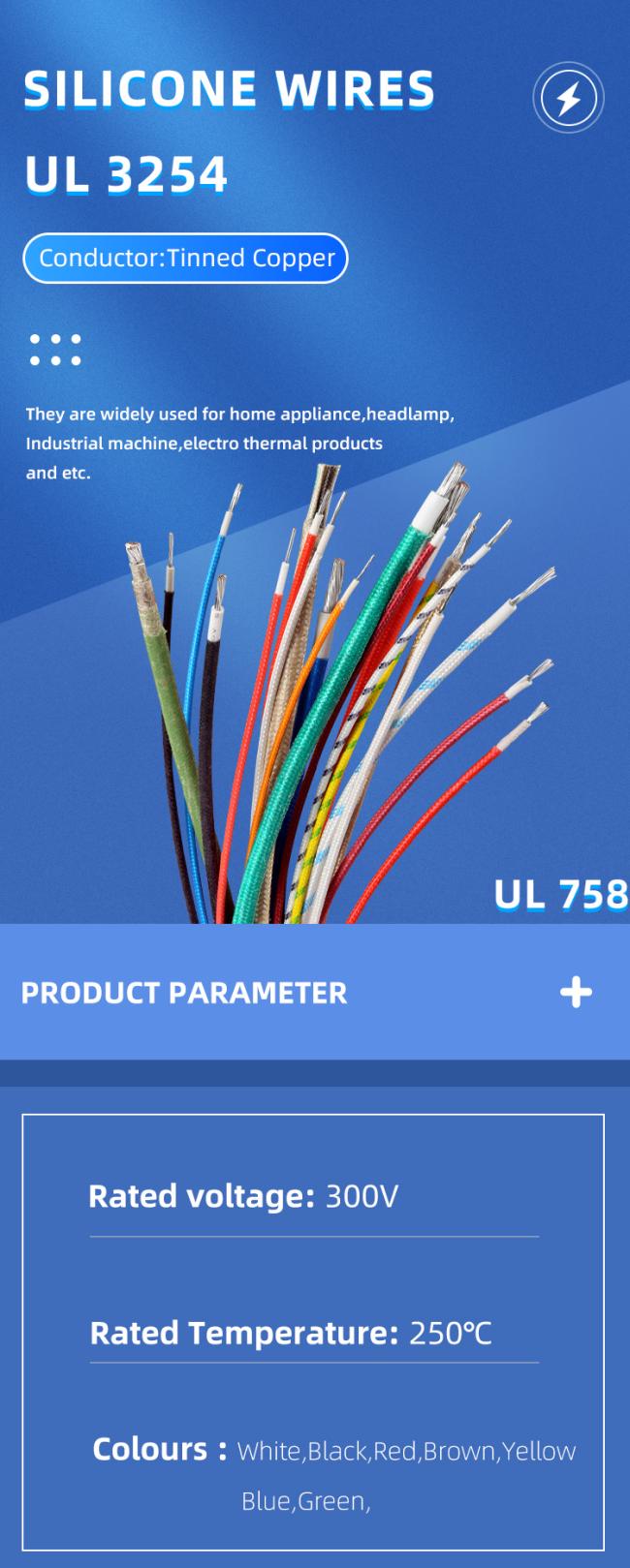

12AWG 300V Silicone Wires Electrical Wires FT2 UL3254 Nickel Plated
Silicone wires electrial wres 12AWG 300V FT2 UL3254 Nickel -plated wires
UL 3254 Specifications:
Nominal voltage:300V
Temperature range: 250℃
Standard: UL3254
Insulation: Silicone Rubber + Fibber glass
Conductor: Tinner copper
Product features:
insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.
Product Parameter
Applications:
* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
| 30 | 7/0.10 | 0.3 | 0.93 | 2.16 | 361 | 610/2000 |
| 28 | 7/0.12 | 0.36 | 2.22 | 227 | ||
| 26 | 7/0.16 | 0.48 | 2.34 | 143 | ||
| 24 | 7/0.20 | 0.6 | 2.46 | 89.3 | ||
| 22 | 7/0.254 | 0.76 | 2.62 | 56.4 | 305/1000 | |
| 20 | 7/0.31 | 0.93 | 2.79 | 35.2 | ||
| 18 | 7/0.39 | 1.17 | 3.03 | 22.2 | ||
| 16 | 7/0.49 | 1.47 | 3.33 | 14 | ||
| 14 | 41/0.254 | 1.89 | 3.75 | 8.78 | ||
| 12 | 19/0.47 | 2.36 | 4.22 | 5.53 | ||
Our Product
Product Description
Package & Delivery
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
