105c 600v 32awg XLPE Hook Up Wire UL758 With Jacket

Price Negotiable

Price: 0.06~0.48USD per M

MOQ: 3050meters

Delivery Time: 7-15 working day

Brand: Mysun

Product Description

32awg xlpe insulation material wtith jacket 105c 600v wires

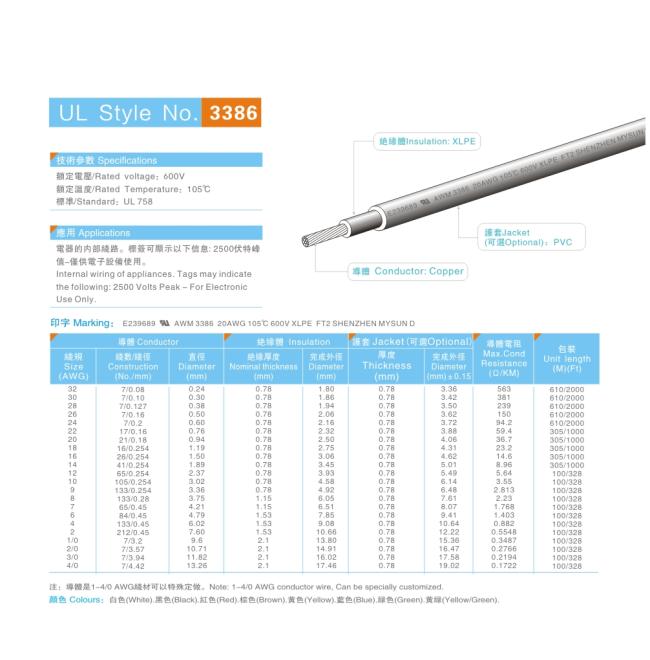

UL 3386 Specifications:

Nominal voltage:600V

Temperature range:105℃

Standard: UL3386

Insulation: xlpe

Conductor: copper

Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.

Product Parameter

Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.

Conductor			Insulation		Jacket		Max.Cond Resistance	Unit length
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Thickness	Diameter ±0.15	(Ω/KM)	(M)(Ft)
32	7/0.08	0.24	0.78	1.8	0.78	3.36	563
30	7/0.1	0.30	0.78	1.86	0.78	3.42	381	610/2000
28	7/0.127	0.38	0.78	1.94	0.78	3.5	239
26	7/0.16	0.5	0.78	2.06	0.78	3.62	150
24	7/0.20	0.60	0.78	2.16	0.78	3.72	94.2
22	17/0.16	0.76	0.78	2.32	0.78	3.88	59.4	305/1000
20	21/0.18	0.94	0.78	2.5	0.78	4.06	36.7
18	16/0.254	1.19	0.78	2.75	0.78	4.31	23.2
16	26/0.254	1.50	0.78	3.06	0.78	4.62	14.6
14	41/0.254	1.89	0.78	3.45	0.78	5.01	8.96
12	65/0.254	2.37	0.78	3.93	0.78	5.49	5.64	100/328
10	105/0.254	3.02	0.78	4.58	0.78	6.14	3.55
9	133/0.254	3.36	0.78	4.92	0.78	6.48	2.813
8	133/0.28	3.75	1.15	6.05	0.78	7.61	2.23
7	65/0.45	4.21	1.15	6.51	0.78	8.07	1.768
6	84/0.45	4.79	1.53	7.85	0.78	9.41	1.403
4	133/0.45	6.02	1.53	9.08	0.78	10.64	0.882
2	212/0.45	7.60	1.53	10.66	0.78	12.22	0.5548
1/0	7/3.2	9.6	2.1	13.8	0.78	15.36	0.3487
2/0	7/3.57	10.71	2.1	14.91	0.78	16.47	0.2766
3/0	7/3.94	11.82	2.1	16.02	0.78	17.58	0.2194
4/0	7/4.42	13.26	2.1	17.46	0.78	19.02	0.1722
