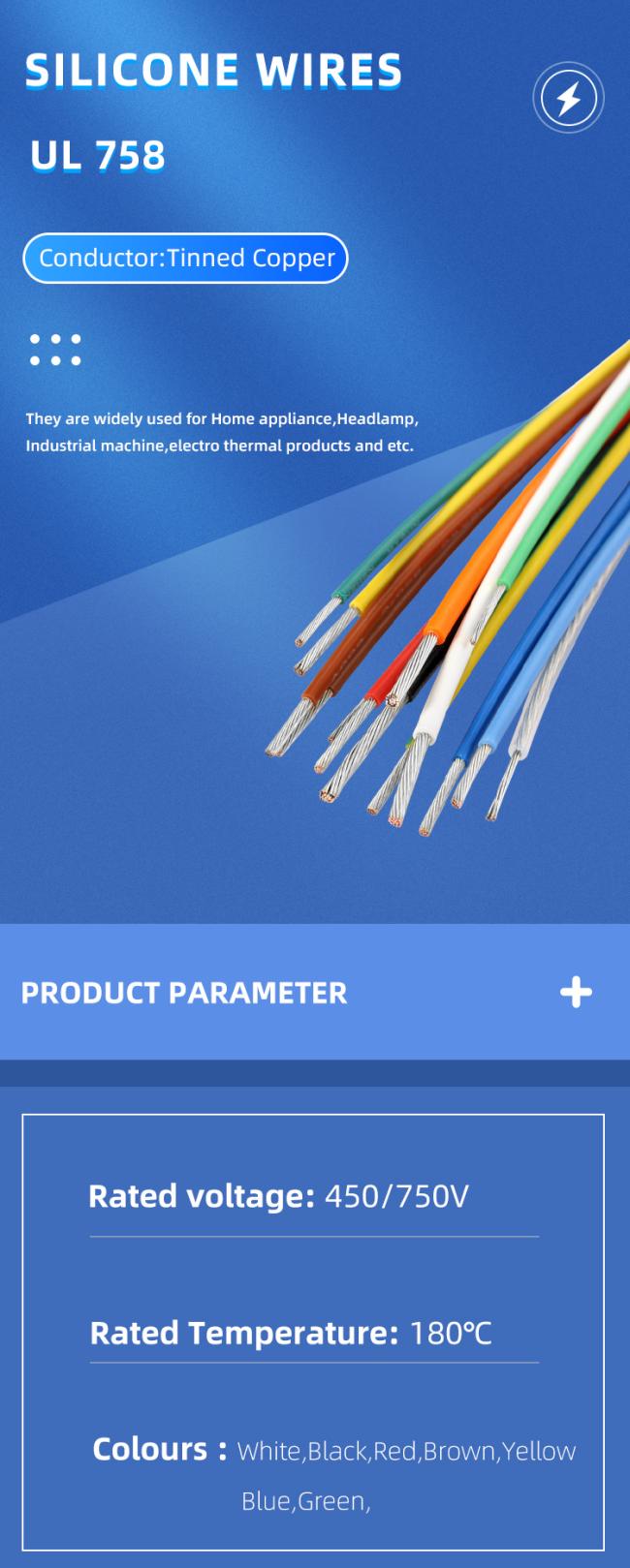

VDEH05S-K CCC Silicone Rubber Insulation Wire 450 750V 180C For Electric
Silicone rubber insulation VDEH05S-K Tinner copper conductor 450/750V/180C for electric appliance/lighting wires
VDE H05S-k Specifications:
Nominal voltage:450/750V
Temperature range: 180℃
Standard: VDE 0282-3
Insulation: Silicone Rubber
Conductor: Tinner copper

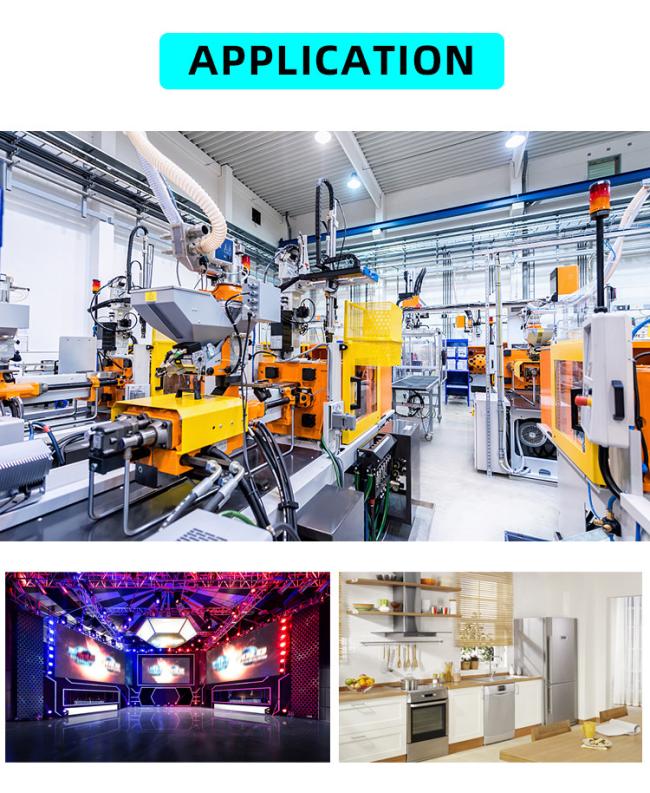

Application
Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.
Product features:
insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.
Product Parameter
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
(Ω/KM) | (M)(Ft) |
| 0.5 | 20/0.18 | 0.75 | 0.8 | 2.52 | 40.1 | 305/1000 |
| 0.75 | 30/0.18 | 1.13 | 0.8 | 2.73 | 26.7 | |
| 1 | 40/0.18 | 1.3 | 0.8 | 2.91 | 20 | |
| 1.25 | 50/0.18 | 1.5 | 0.8 | 3.06 | 14.35 | |
| 1.5 | 30/0.25 | 1.6 | 0.9 | 3.4 | 13.7 | |
| 2 | 41/0.254 | 1.85 | 0.9 | 3.67 | 8.78 | |
| 2.5 | 50/0.25 | 2.06 | 1 | 4.08 | 7.16 | |
Product Description
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
