WR19 BJ500 To 1.85mm Female Waveguide To Coax Adapter 39.2GHz~59.6GHz Right Angle

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP,SSMP, 3.5, K (2.92), 2.4, 1.85, 1.0 and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.



Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

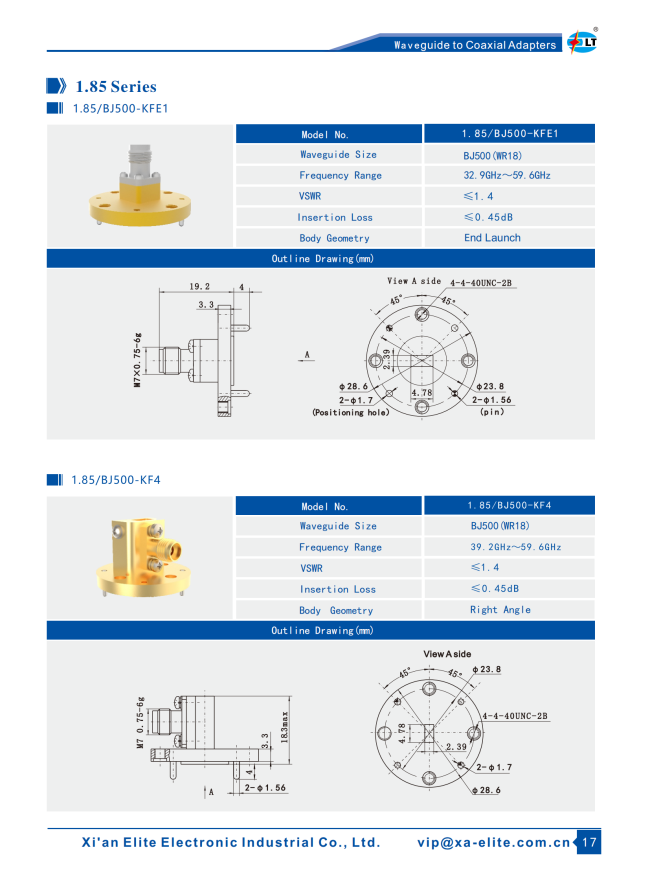

Outline Drawing and Pictures of WR19 BJ500 to 1.85mm Female Waveguide to Coax Adapter 1.85/BJ500-KF4:





List of Waveguide to 1.85mm Coaxial Adapters:

Model Number	Description	Note
1.85/BJ500-KF4	WR19(BJ500) to 1.85mm female right angle adapters
1.85/BJ500-KFE1	WR19(BJ500) to 1.85mm female end launch adapters	BJ500=WR19
1.85/BJ620-KF	WR15(BJ620) to 1.85mm female right angle adapters	BJ620=WR15
1.85/BJ620-KFE	WR15(BJ620) to 1.85mm female end launch adapters
Custom Type	Customized sizes are acceptable





Cross-references of waveguide Standard
