WR22 BJ400 To 2.4mm Female Waveguide To Coax Adapter 32.9GHz~50GHz 2.4/BJ400-KF

32.9GHz~50GHz WR22 BJ400 to 2.4mm Female Waveguide to Coax Adapter

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-70GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP, 3.5, K (2.92), 2.4, 1.85, 1.0 and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.



Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

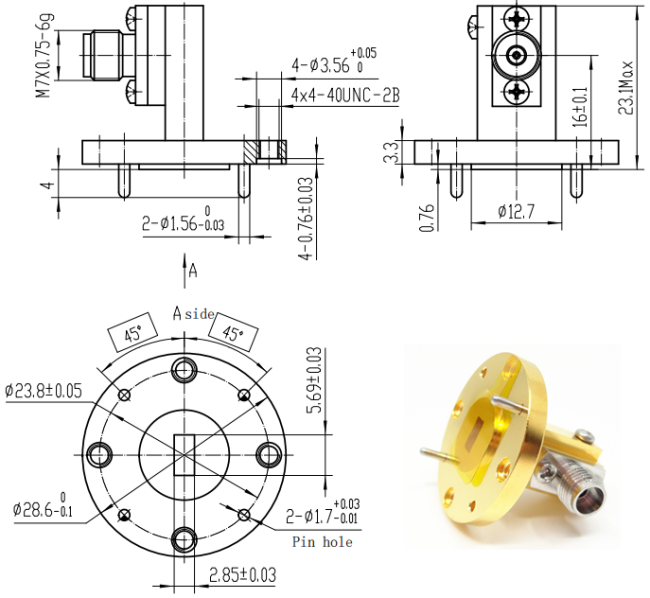

Outline Drawing of Model No. 2.4/BJ400-KF:

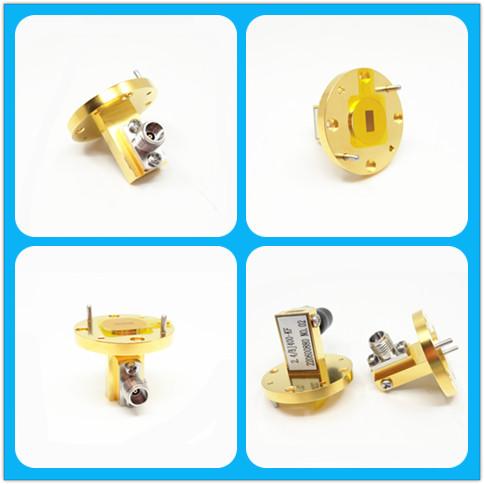

Pictures of WR22 BJ400 to 2.4mm Female Waveguide to Coax Adapter 2.4/BJ400-KF:





List of Waveguide to 2.4mm Coaxial Adapters:

Model Number	Description	Note
2.4/BJ260-KF	WR34(BJ260) to 2.4mm female right angle adapters
2.4/BJ260-JF	WR34(BJ260) to 2.4mm male right angle adapters	BJ260=WR34
2.4/BJ320-KF	WR28(BJ320) to 2.4mm female right angle adapters	BJ320=WR28
2.4/BJ320-JF	WR28(BJ320) to 2.4mm male right angle adapters	BJ400=WR22
2.4/BJ400-KF	WR22(BJ400) to 2.4mm female right angle adapters



Cross-references of waveguide Standard

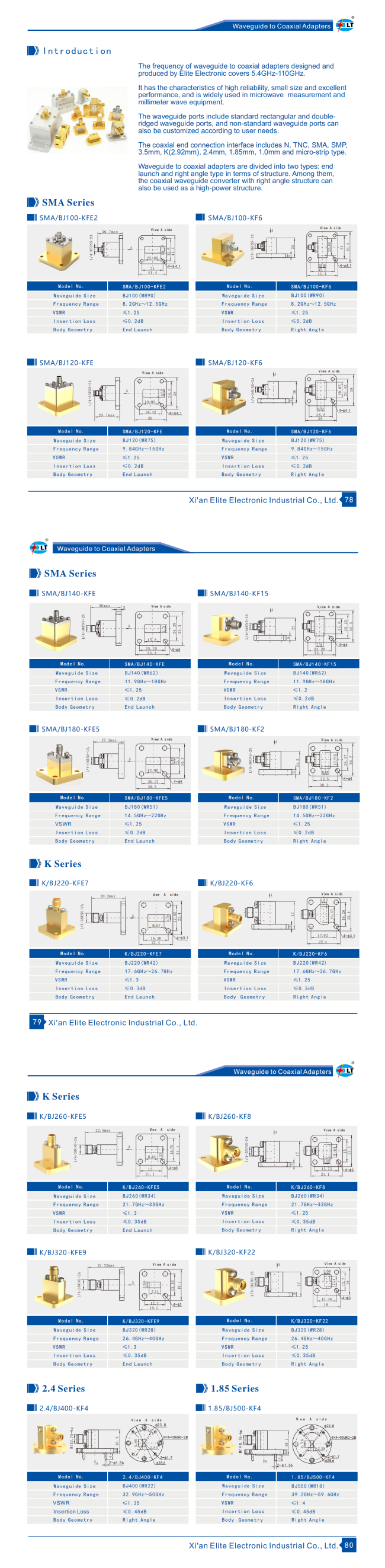

Waveguide to Coax Adapter-ELT 2024.pdf
