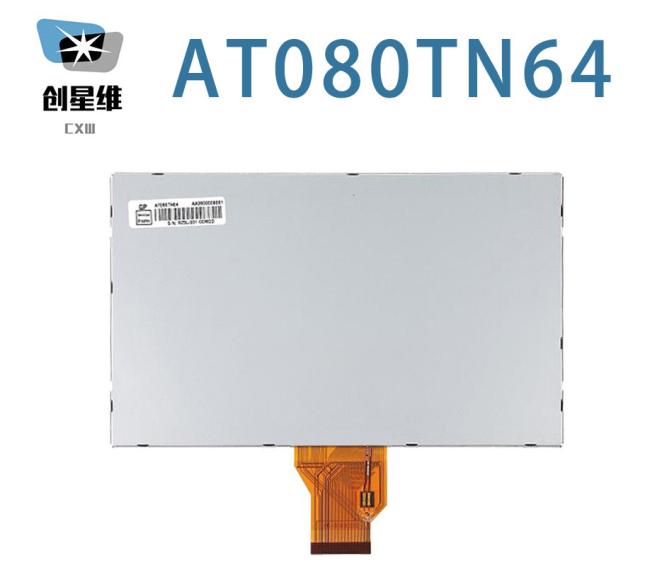

AT080TN64 Chimei Innolux 8.0" 800(RGB)×480, 450 cd/m² INDUSTRIAL LCD DISPLAY
Chimei Innolux AT080TN64 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| AT080TN64 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 85 °C | -30 ~ 85 °C |
Chimei Innolux AT080TN64 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 450 (Typ.) | 70/70/50/70 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 262K/16.2M (6-bit / 6-bit + Dithering) | X:0.310; Y:0.330 | |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
Chimei Innolux AT080TN64 Mechanical Features
| Panel Size : | 8.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.2208×0.2070 [116PPI] | 0.0736×0.2070 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 176.64(H) × 99.36(V) | 180.1(H) × 103.4(V) | 192.8(H) × 116.9(V) | 6.4±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 245g (Typ.) | - | Antiglare | ||
Chimei Innolux AT080TN64 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3S12P | Array | 20K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 9.3±0.9V | 240±24mA | 2.232W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in signal interface | ||||
Chimei Innolux AT080TN64 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) | 4.0/20.0/0.2/0.2mA (Typ.)(DIDD/AIDD/IGH/IGL) | 0.226W (Typ.) | ||||
| Voltage for Display Signals : | 0≤0.1DVDD≤0.3DVDD; 0.7DVDD≤0.9DVDD≤DVDD | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6/8-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 50 pins | 1 pcs | DRGB-50P1C8B-115A | |||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H)×6.7(D) mm, viewing area size of 180.1(W)×103.4(H) mm, with surface treament of Antiglare, net weight of 245g (Typ.). As a TN, Normally White, Transmissive LCM product, AT080TN64 can provides 450 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S12P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AT080TN64 utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
