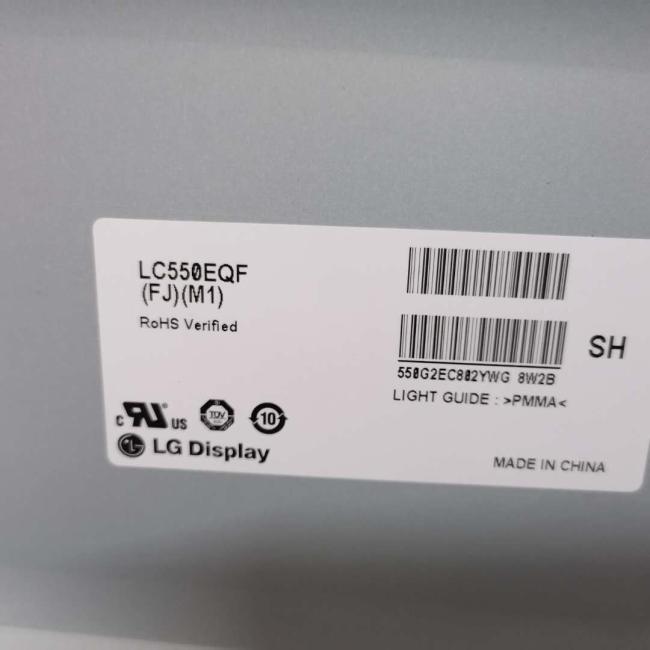

LC550EQF-FJM1 LG Display 55" 3840(RGB)×2160 400 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
LG Display
Product Description
LG Display LC550EQF-FJM1 Application Details
| Basic Information : | Brand | Model | LC550EQF-FJM1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 55" | Alias | LC550EQF (FJ)(M1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
LG Display LC550EQF-FJM1 Mechanical Details
| Pixel Features : | Resolution | 3840(RGB)×2160, UHD | Dot Pitch(mm) | 0.105×0.315 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.315×0.315 (H×V) [80PPI] | |
| Mechanical Size : | Active Area(mm) | 1209.6(H) × 680.4(V) | Bezel Area(mm) | 1214.6(H) × 685.4(V) |
| Outline Dim.(mm) | 1238.8(H) × 706(V) | Depth(mm) | 14.0 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 12.5/13.5Kgs (Typ./Max.) | Treatment | Antiglare (Haze 3%), Hard coating (2H) |
LG Display LC550EQF-FJM1 Optical Details
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 5 (Typ.)(G to G); 8 (Typ.)(MPRT) | |
| Color Performance : | White Coordinate | X:0.281; Y:0.288 | Display Colors | 16.7M/1.06B (8-bit / 8-bit + Dithering) |
| Color Temperature | 9966K | White Uniformity | 1.54 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 95% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LC550EQF-FJM1 Interface Details
| Signal Electrical : | Voltage Supply | 12.7V (Typ.) | Current Supply | 0.7/0.9A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 8.9/11.5W (Typ./Max.) | |||||
| Signal Type : | V-by-One 16 lane | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-RE51S-HF | 1 pcs | 51 pins | 0.5 mm | ||
| JAE | FI-RE41S-HF | 1 pcs | 41 pins | 0.5 mm | ||
| JST | SM05B-PASS-TB | 1 pcs | 5 pins | 2.0 mm | ||
LG Display LC550EQF-FJM1 Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 126±10V | Current Supply | 110mA (Typ.) | ||
| Consumption | 83.2/89.8W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | HS100-L08N-N62 | 1 pcs | 8 pins | 1.0 mm | ||
| UJU | HS100-L08N-N62-A | 1 pcs | 8 pins | 1.0 mm | ||
LG Display LC550EQF-FJM1 Packing Details
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 22 pcs / box | - | 1400×1140×980 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
