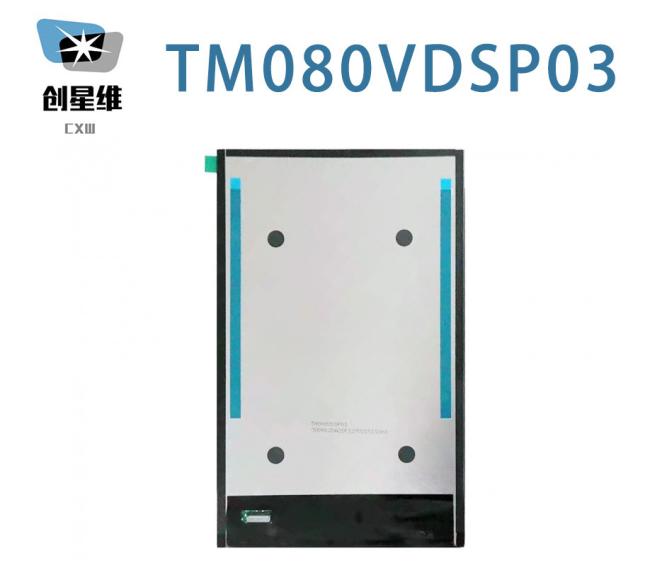

TM080VDSP03 TIANMA 8.0" 1200(RGB)×1920, 390 cd/m² INDUSTRIAL LCD DISPLAY
TIANMA TM080VDSP03 Application Details
| Basic Info : | Panel Brand | Panel Model | TM080VDSP03 | |
|---|---|---|---|---|
| Diagonal Size | 8.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -10 ~ 60 °C | Storage Temp. | -15 ~ 70 °C |
TIANMA TM080VDSP03 Mechanical Details
| Pixel Features : | Pixel Format | 1200(RGB)×1920 [WUXGA] | Dot Pitch | 0.0299×0.0897 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.0897×0.0897 mm (H×V) [283PPI] | |
| Mechanical Size : | Display Area | 107.64×172.224 mm (H×V) | Bezel Area | - |
| Outline Dim. | 114.58×184.09 mm (H×V) | Outline Depth | 2.05/3.95 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 10:16 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | TBD | Surface | Hard coating |
TIANMA TM080VDSP03 Optical Details
| Basic Information : | Brightness | 390 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.301; Wy:0.321 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 7272K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 61% | sRGB | 80% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 63% coverage | |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM080VDSP03 Backlight Details
| Back-light Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 7S3P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 22.4V (Typ.) | Current Input | 63mA (Typ.) | ||
| Consumption | 1.41W (Typ.) | |||||
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | - |
whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 283 PPI. As for mechanical detail, it features active area of 107.64(W)×172.224(H) mm, outline size of 114.58(W)×184.09(H)×3.95(D) mm, with surface treament of Hard coating, net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, TM080VDSP03 can provides 390 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted 7S3P WLED as it's backlight systerm which was placed as Edge light type. TM080VDSP03 utilizes MIPI (4 data lanes) as it's signal inputting systerm with power supply voltage of 3.3V (Typ.)(VCI).
