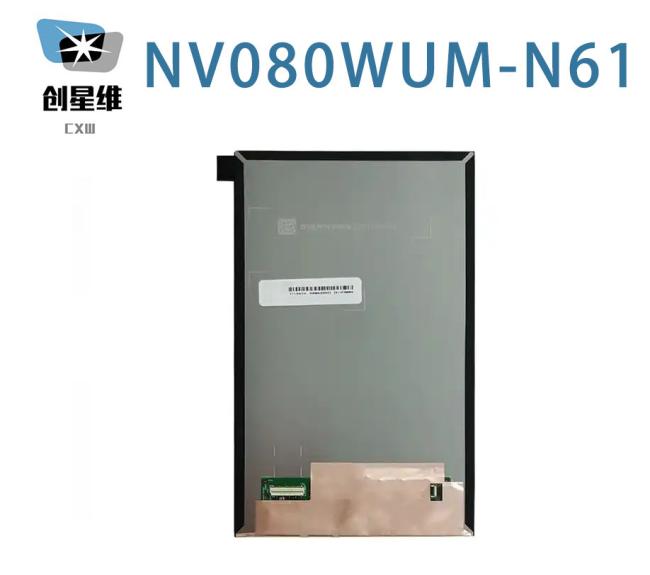

NV080WUM-N61 BOE 8.0" 1200(RGB)×1920, 435 cd/m² INDUSTRIAL LCD DISPLAY
BOE NV080WUM-N61 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| NV080WUM-N61 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
BOE NV080WUM-N61 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 435 (Typ.) | 85/85/85/85 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | HADS, Normally Black, Transmissive | 1200 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 76% | 100% | 77% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 79% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.40/1.60 (Typ./Max.)(13 points | ||
BOE NV080WUM-N61 Mechanical Features
| Panel Size : | 8.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1200(RGB)×1920 [WUXGA] | RGB Vertical Stripe | 0.0897×0.0897 [283PPI] | 0.0299×0.0897 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 107.64(H) × 172.224(V) | - | 113.14(H) × 182.424(V) | 2.05/3.68 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 10:16 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 95.0g (Max.) | - | Hard coating (2H) | ||
BOE NV080WUM-N61 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 9S3P | 3 strings | 15K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 27V (Max.) | 23.7/24.2mA (Typ./Max.) | 1.86/1.92W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in signal interface | ||||
BOE NV080WUM-N61 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 152/167mA (Typ./Max.) | 0.5/0.55W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | MIPI (4 data lanes) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| I-PEX | 20655-045E-01 | 0.3 mm | 45 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 283 PPI. As for mechanical detail, it features active area of 107.64(W)×172.224(H) mm, outline size of 113.14(W)×182.424(H)×3.68(D) mm, with surface treament of Hard coating (2H), net weight of 95.0g (Max.). As a HADS, Normally Black, Transmissive LCM product, NV080WUM-N61 can provides 435 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 9S3P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, external backlight driver is additionally needed. NV080WUM-N61 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 45 pins Connector with power supply voltage of 3.3V (Typ.).
