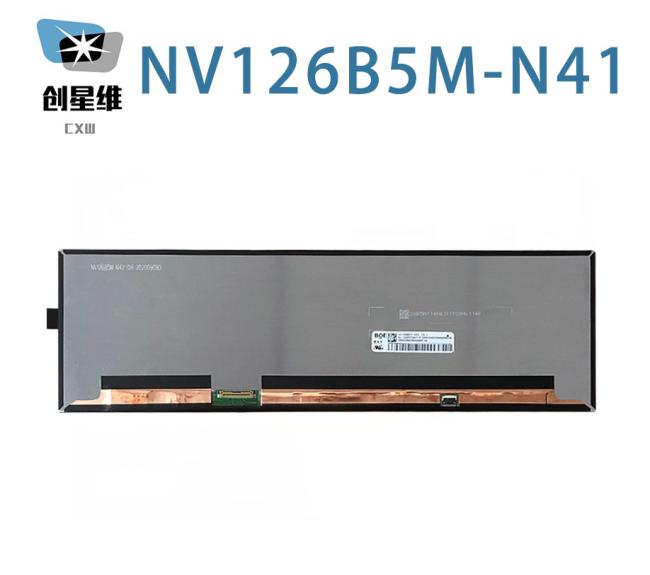

NV126B5M-N41 BOE 12.6" 1920(RGB)×515 250 cd/m² INDUSTRIAL LCD DISPLAY
BOE NV126B5M-N41 Application Details
| Basic Detail : | Manufacturer | Model Name | NV126B5M-N41 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | BOE087F | |
| Panel Size | 12.6 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 65 °C |
| Vibration Level | 1.5G (14.7 m/s²) |
BOE NV126B5M-N41 Optical Details
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.308; Wy:0.322 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6832K | White Uniformity | 1.25/1.50 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 47% | sRGB | 67% coverage |
| Adobe RGB | 50% coverage | DCI-P3 | 49% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE NV126B5M-N41 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×515 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0537×0.1611 mm | Pixel Pitch(W×H) | 0.1611×0.1611 mm [157PPI] | |
| Physical Size : | Active Viewing | 309.312(W)×82.9665(H) mm | Overall Dim. | 315.61(W)×94.02(H) mm |
| Bezel Opening | - | Overall Depth | 3.0/5.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | >3:1 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 175g (Max.) | Surface | Antiglare (Haze 40%), Hard coating |
BOE NV126B5M-N41 Interface Details
| Signal Electrical : | Input Current | 136/152mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.5W (Max.) | Signal Interface | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20455-040E-66 | 1 pcs | 0.5 mm | 40 pins | ||
BOE NV126B5M-N41 Lightting Details
| Lamp Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 8S6P | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | - | Input Voltage | 5.0/12.0/21.0V (Min./Typ./Max.) | ||
| Consumption | 1.5W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.312(W)×82.9665(H) mm, outline size of 315.61(W)×94.02(H)×5.3(D) mm, with surface treament of Antiglare (Haze 40%), Hard coating, net weight of 175g (Max.). As a ADS, Normally Black, Transmissive LCM product, NV126B5M-N41 can provides 250 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted 8S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV126B5M-N41 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
