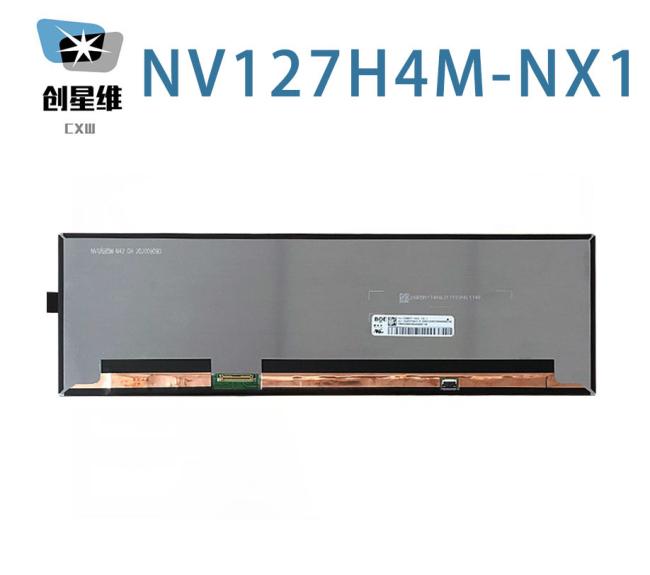

NV127H4M-NX1 BOE 12.7" 2880(RGB)×864 500 (Typ.)(cd/m²) INDUSTRIAL LCD DISPLAY
BOE NV127H4M-NX1 Application Details
| Basic Detail : | Manufacturer | Model Name | NV127H4M-NX1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | BOE0A8D | |
| Panel Size | 12.7 inch (Native bar) | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 55 °C |
BOE NV127H4M-NX1 Optical Details
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1200 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.50 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 96% | sRGB | 100% coverage |
| Adobe RGB | 88% coverage | DCI-P3 | 100% coverage | |
| Rec.2020 | 72% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE NV127H4M-NX1 Mechanical Details
| Pixel Features : | Number of Pixel | 2880(RGB)×864 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0357×0.1071 mm | Pixel Pitch(W×H) | 0.1071×0.1071 mm [237PPI] | |
| Physical Size : | Active Viewing | 308.448(W)×92.534(H) mm | Overall Dim. | 313.54(W)×101.33(H) mm |
| Bezel Opening | - | Overall Depth | 2.4/4.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | >3:1 | Shape Style | Slim (PCBA Bent, T≤3.0mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | 134g (Max.) | Surface | Hard coating (3H) |
BOE NV127H4M-NX1 Interface Details
| Signal Electrical : | Input Current | 333.3mA (Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.1W (Max.) | Signal Interface | eDP (4 Lanes), eDP1.4, HBR2 (5.4G/lane) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| STM | MSAK24025P40G | 1 pcs | 0.5 mm | 40 pins | ||
BOE NV127H4M-NX1 Lightting Details
| Lamp Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 10S6P | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 367mA (Max.) | Input Voltage | 5/12/21V (Min./Typ./Max.) | ||
| Consumption | 4.4W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 308.448(W)×92.534(H) mm, outline size of 313.54(W)×101.33(H)×4.3(D) mm, with surface treament of Hard coating (3H), net weight of 134g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NV127H4M-NX1 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV127H4M-NX1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
