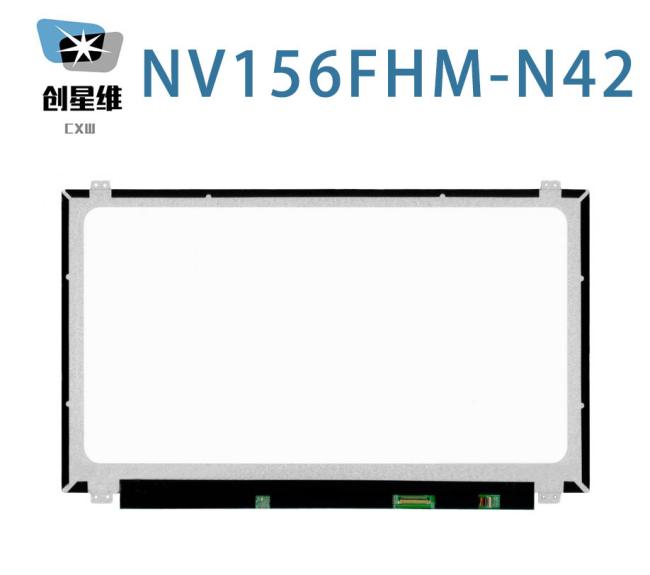

NV156FHM-N42 BOE 15.6" 1920(RGB)×1080, 220 cd/m² INDUSTRIAL LCD DISPLAY
BOE NV156FHM-N42 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| NV156FHM-N42 | a-Si TFT-LCD , LCM | BOE0630 BOE0679 BOE06CB BO07C5 | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
BOE NV156FHM-N42 Mechanical Features
| Screen Size : | 15.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.05975×0.17925 mm | 0.17925×0.17925 mm [141PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 344.16×193.59 mm | - | 359.5×223.8 mm | 3.05/3.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Slim (PCBA Flat, T≤3.2mm) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 380g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs | |||
BOE NV156FHM-N42 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 220 cd/m² (Typ.) | ADS, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 45% | 62% | 47% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 47% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.54 (Max.)(5/13 points) | ||
BOE NV156FHM-N42 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 15K(Min.) | 10S4P | 4 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 20mA (Typ.) | ||||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Included in signal interface | - | ||||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 5.0/12.0/21.0V (Min./Typ./Max.) | - | 2.98W (Max.) | ||||
BOE NV156FHM-N42 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 267/485mA (Typ./Max.) | 0.88/1.6W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| STM | MSAK24025P30 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020V | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 359.5(W)×223.8(H)×3.2(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 380g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV156FHM-N42 can provides 220 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV156FHM-N42 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
